Circuit Description

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

A photo diode in the solar sensor detects solar radiation and sends signals to the integration control and panel.

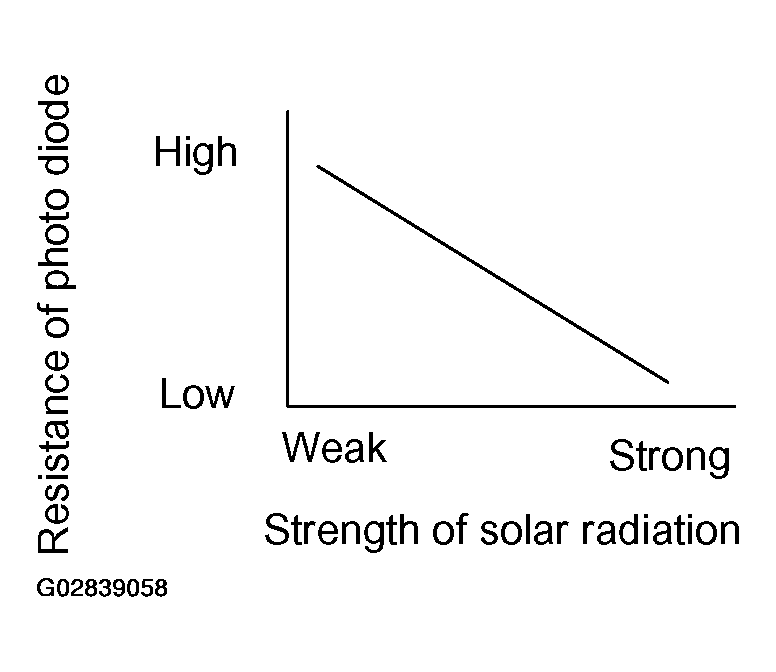

Fig 1: Solar Radiation And Photo Diode Resistance Variation Graph
G02839058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

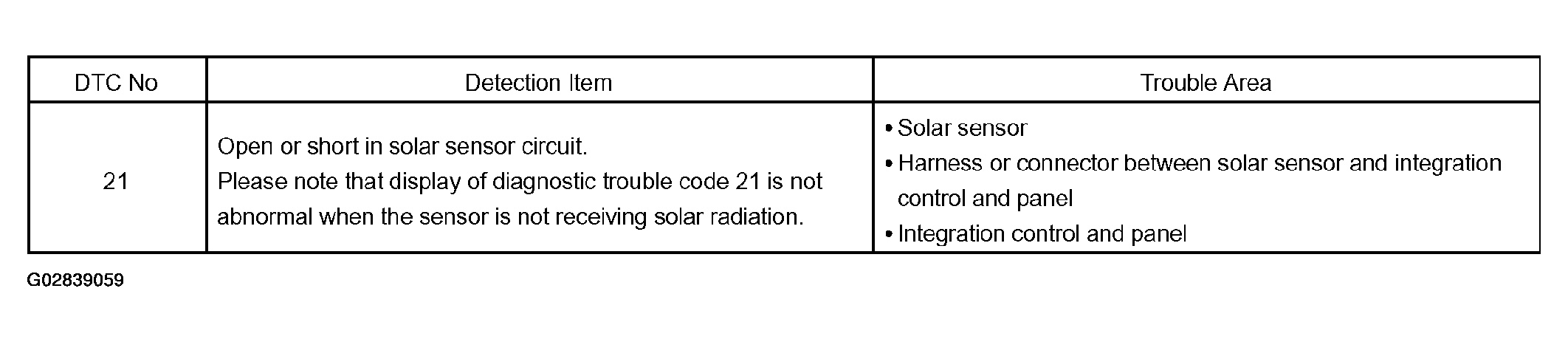

Fig 2: DTC Detection Chart
G02839059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
