Diagnostic Trouble Code Chart
WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

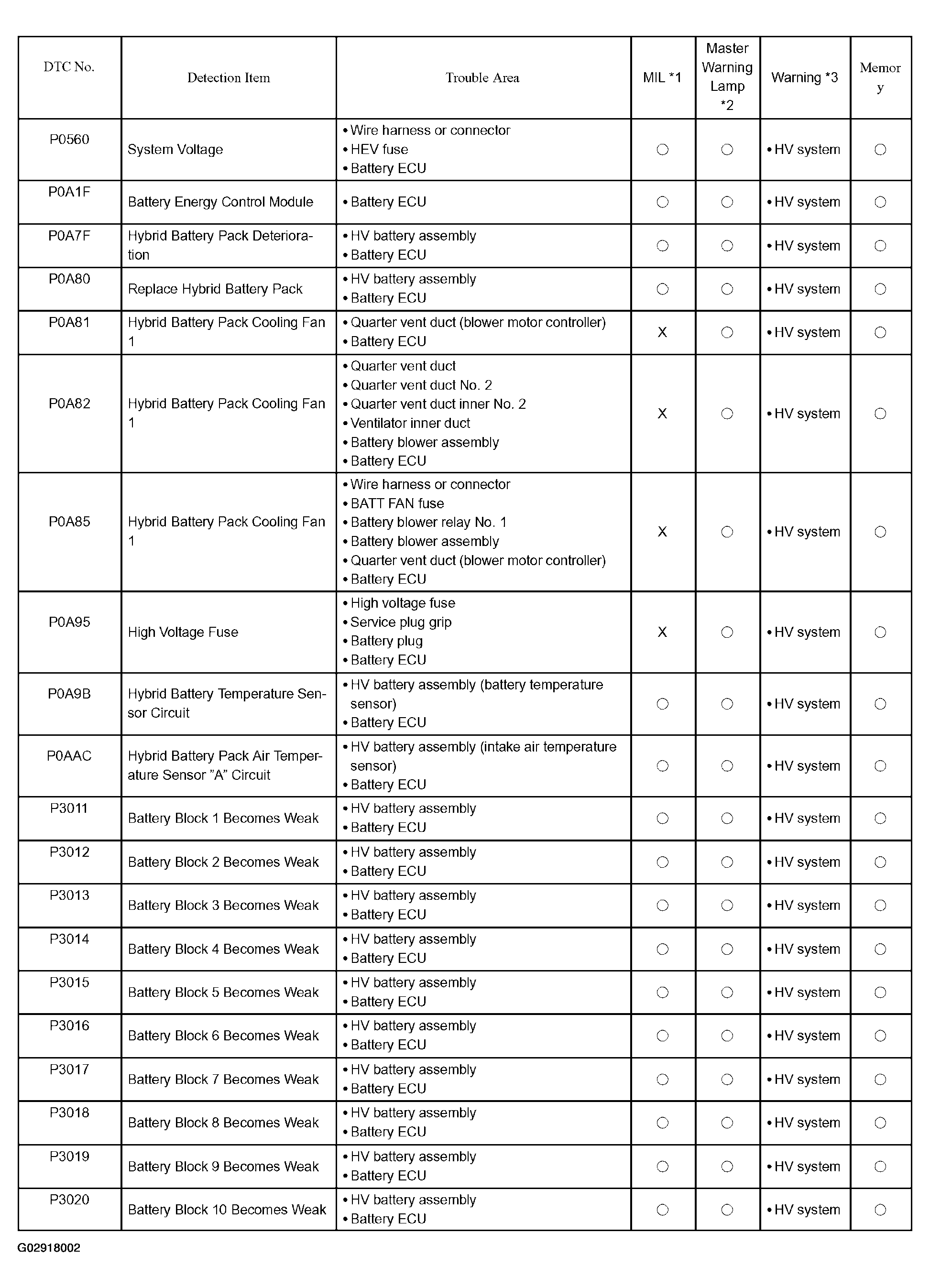

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC P0560 | SYSTEM VOLTAGE |
| DTC P0A1F | BATTERY ENERGY CONTROL MODULE |
| DTC P0A7F | HYBRID BATTERY PACK DETERIORATION |
| DTC P0A80 | REPLACE HYBRID BATTERY PACK |
| DTC P0A81 | HYBRID BATTERY PACK COOLING FAN 1 |
| DTC P0A82 | HYBRID BATTERY PACK COOLING FAN 1 |
| DTC P0A85 | HYBRID BATTERY PACK COOLING FAN 1 |
| DTC P0A95 | HIGH VOLTAGE FUSE |
| DTC P0A9B | HYBRID BATTERY TEMPERATURE SENSOR CIRCUIT |
| DTC P0AAC | HYBRID BATTERY PACK AIR TEMPERATURE SENSOR "A" CIRCUIT |

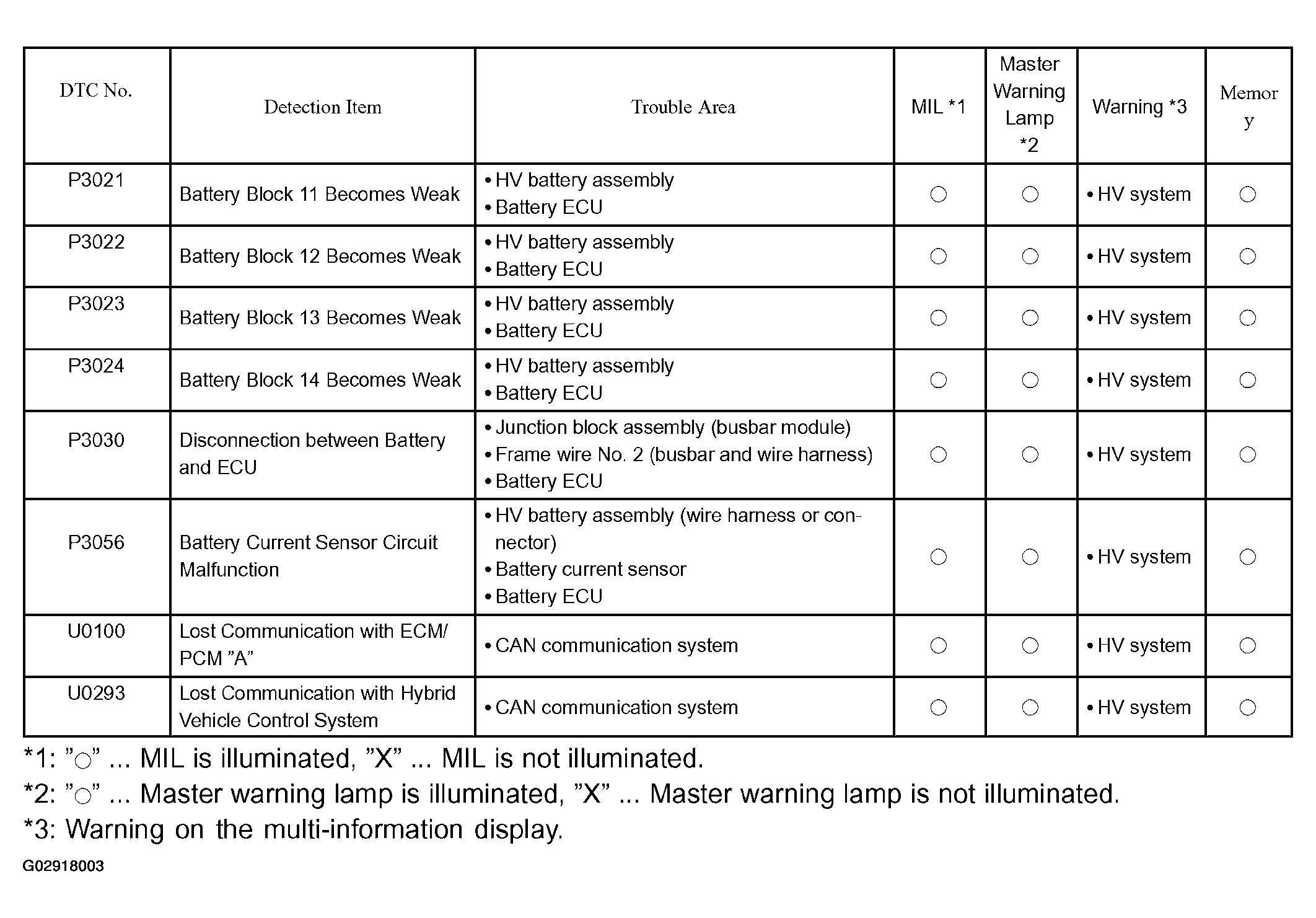

| DTC P3011, P3012, P3013, P3014, P3015, P3016, P3017, P3018, P3019, P3020, P3021, P3022, P3023, P3024 | BATTERY BLOCK 1-14 BECOMES WEAK |
| DTC P3030 | DISCONNECTION BETWEEN BATTERY AND ECU |
| DTC P3056 | BATTERY CURRENT SENSOR CIRCUIT MALFUNCTION |
| DTC U0100, U0293 | LOST COMMUNICATION WITH ECM/PCM "A" & LOST COMMUNICATION WITH HYBRID VEHICLE CONTROL SYSTEM |
