Key Confinement Prevention Function Does Not Work Properly (Unlock Warning Switch Circuit): Wiring Diagram

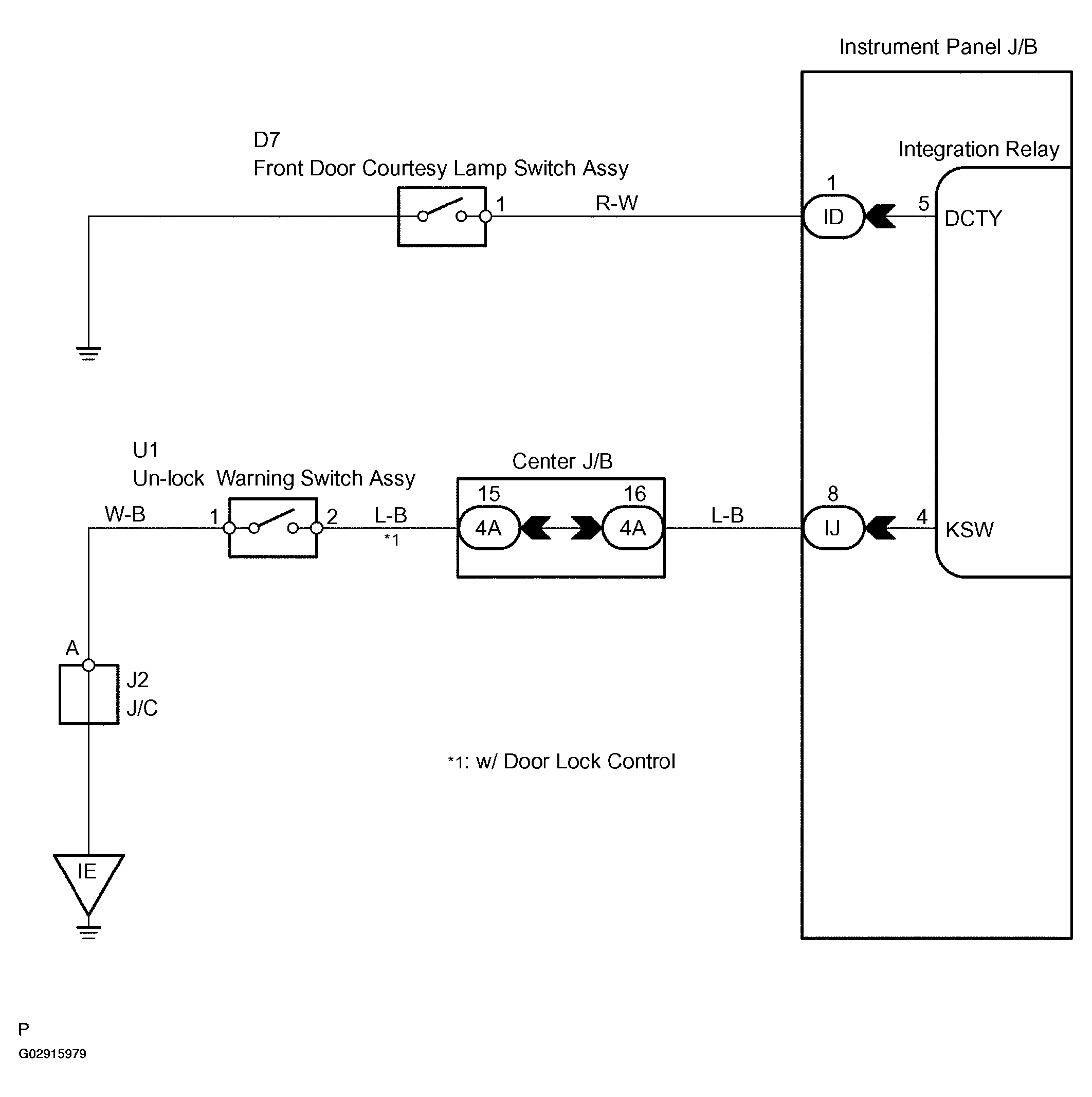

Fig 1: Key Confinement Prevention System Wiring Diagram
G02915979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
