Home >> Toyota >> 2004 >> MR2 C65M >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Trans Sequential - Diagnostics >> DTC P0919: Gear Shift Position Control Error >> Circuit Description

Circuit Description

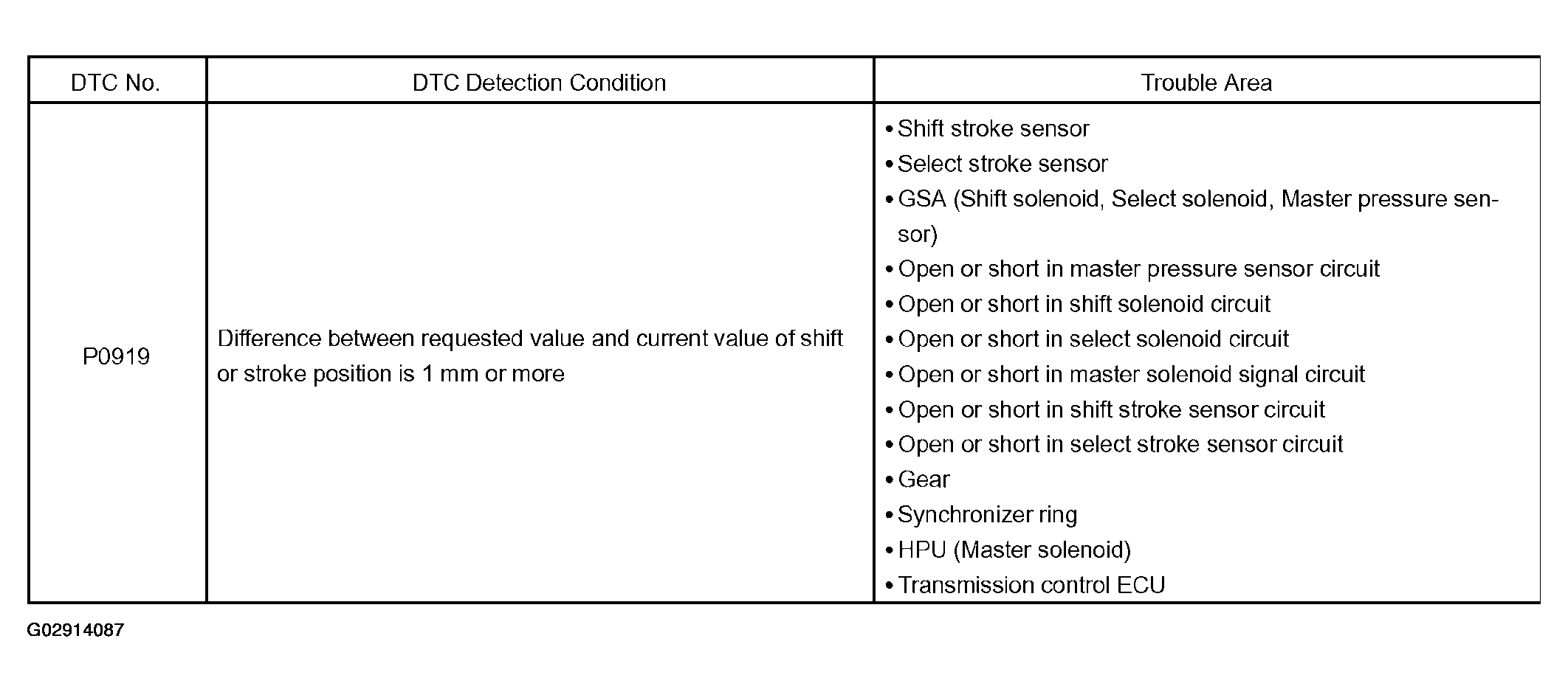

Fig 1: DTC Table.

G02914087

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
