DTC P0125: Insufficient Coolant Temperature for Closed Loop Fuel Control
>>
Circuit Description
Circuit Description
Refer to DTC P0115 in
DTC P0115 ENGINE COOLANT TEMPERATURE CIRCUIT
.

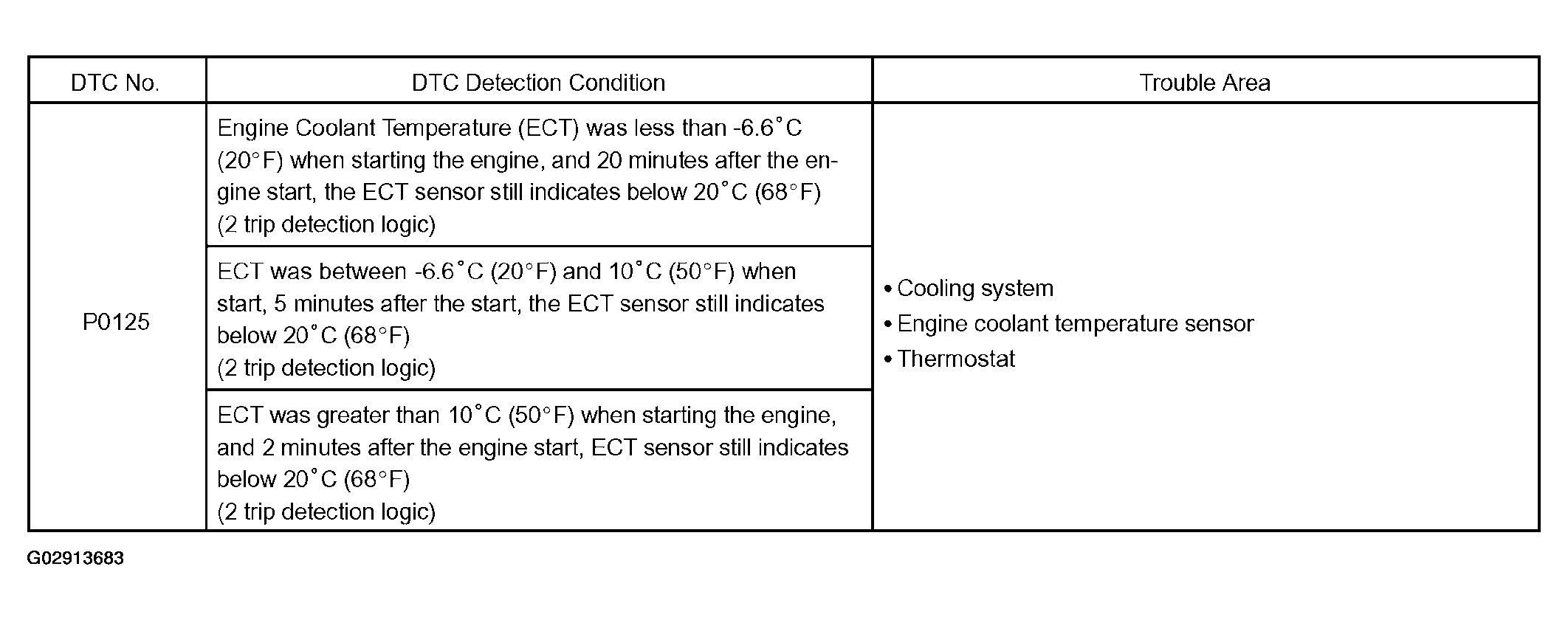

Fig 1: DTC P0125 Troubleshooting Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
