Monitor Strategy

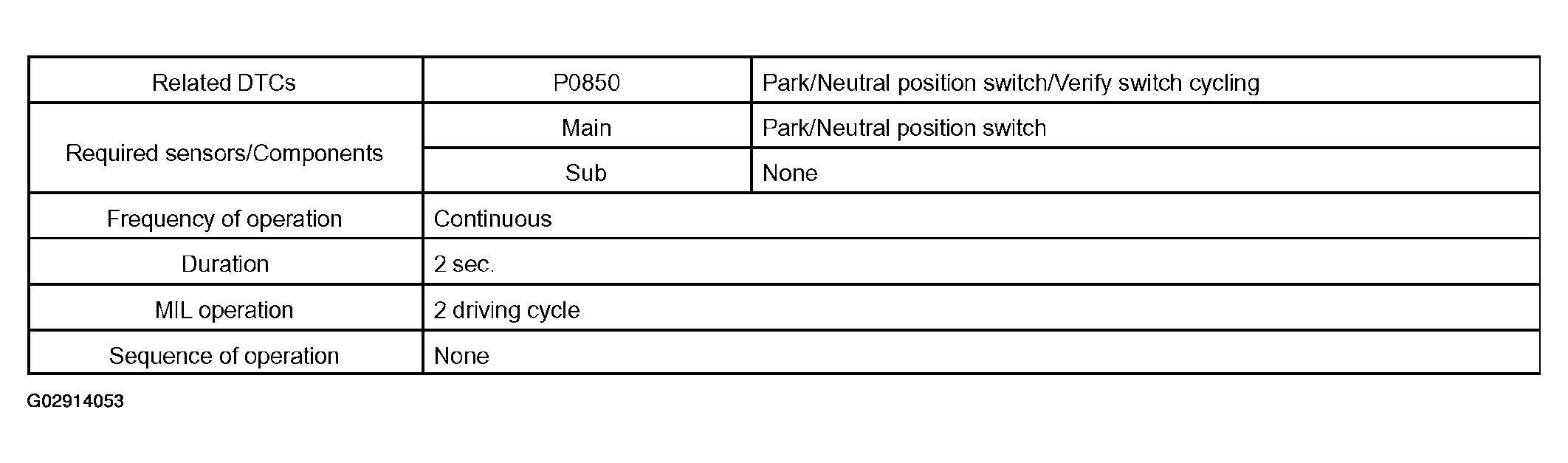

Fig 1: Monitor Strategy Table

G02914053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
