Power Door Lock Control System
Power Door Lock Control System

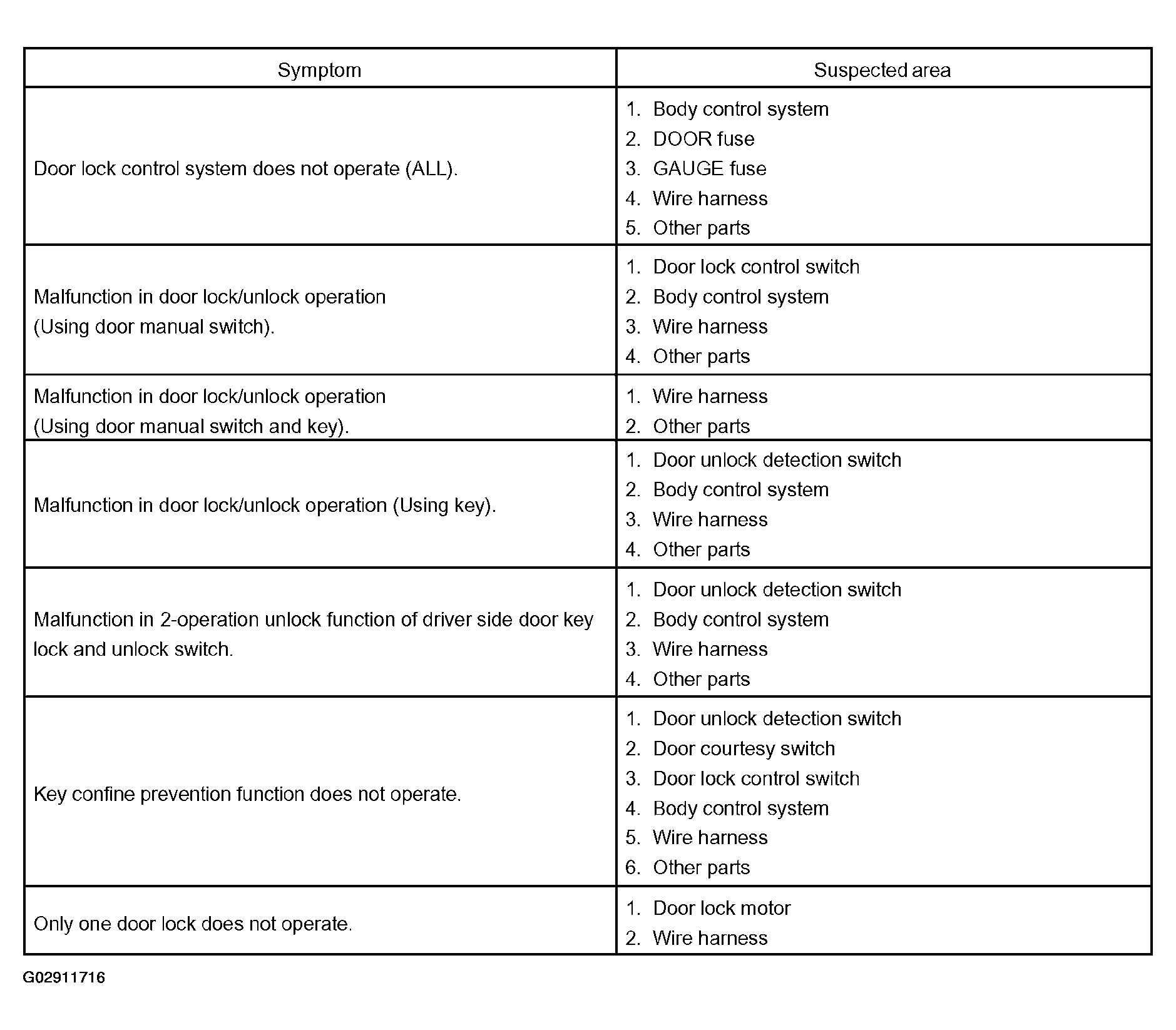

Fig 1: Displaying Power Door Lock Control System Problem Suspect Areas
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
