Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Check for open or short circuit in harness and connector between navigation ECU and television camera ECU.

Disconnect the connector from navigation ECU and television camera ECU.
Measure the resistance according to the value(s) in RESISTANCE CONDITION .

Standard:

RESISTANCE CONDITION

Tester connection	Condition	Specified condition
R - R1	Always	Below 1 Ω
G - G1	Always	Below 1 Ω
B - B1	Always	Below 1 Ω
SYNC - SYN1	Always	Below 1 Ω
VR - VR1	Always	Below 1 Ω
VG - VG1	Always	Below 1 Ω
R - Body ground	Always	10 kΩ or higher
G - Body ground	Always	10 kΩ or higher
B - Body ground	Always	10 kΩ or higher
SYNC - Body ground	Always	10 kΩ or higher
VR - Body ground	Always	10 kΩ or higher

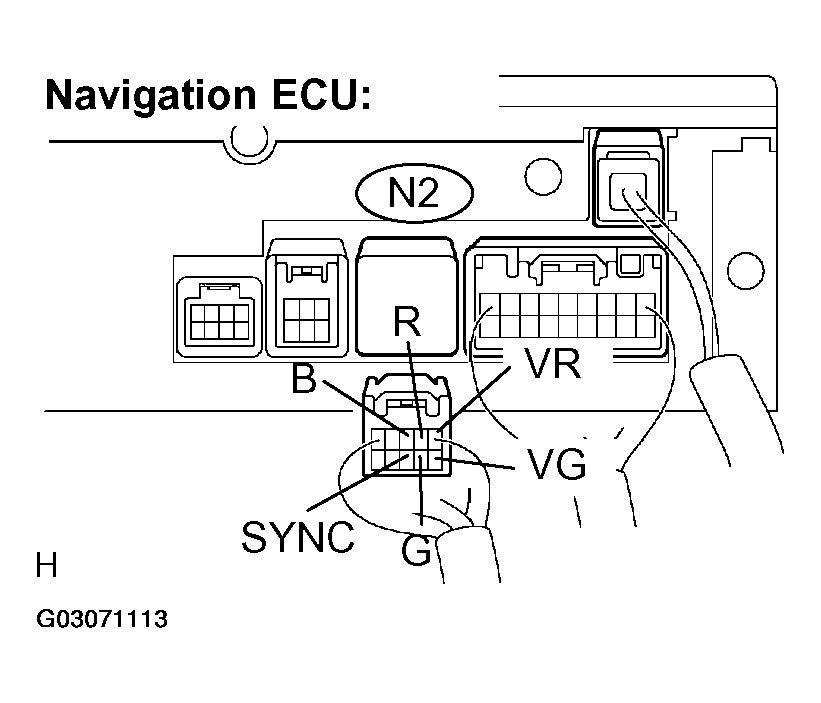

Fig 1: Disconnecting Connector From Navigation ECU & Television Camera ECU (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Disconnecting Connector From Navigation ECU & Television Camera ECU (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Repair or replace harness or connector.
OK: Go to next step.

Check for open or short circuit in harness and connector between television camera ECU and multi-display assembly.

Disconnect the connector from the television camera ECU and multi-display assembly.
Measure the resistance according to the value(s) in RESISTANCE CONDITION .

Standard:

RESISTANCE CONDITION

Tester connection	Condition	Specified condition
R (T21-10) - R (M5-24)	Always	Below 1 Ω
G (T21-11) - G (M5-25)	Always	Below 1 Ω
B (T21-12) - B (M5-26)	Always	Below 1 Ω
SYNC (T21-31) - SYNC (M5-27)	Always	Below 1 Ω
VR (T21-32) - VR (M5-23)	Always	Below 1 Ω
VG (T21-9) - VG (M5-28)	Always	Below 1 Ω
R (T21-10) - Body ground	Always	10 kΩ or higher
G (T21-11) - Body ground	Always	10 kΩ or higher
B (T21-12) - Body ground	Always	10 kΩ or higher
SYNC (T21-31) - Body ground	Always	10 kΩ or higher
VR (T21-32) - Body ground	Always	10 kΩ or higher

Fig 3: Disconnecting Connector From Television Camera ECU & Multi-Display Assembly (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Disconnecting Connector From Television Camera ECU & Multi-Display Assembly (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Repair or replace harness or connector.
OK: Go to next step.

Check for open or short circuit in harness and connector between television camera ECU and television camera.

Disconnect the T21 connector from the television camera ECU.
Disconnect the T20 connector from the television camera assembly.
Measure the resistance according to the value(s) in RESISTANCE CONDITION .

Standard:

RESISTANCE CONDITION

Tester connection (Terminal No.)	Condition	Specified condition
CB+ (T21-20) - CB+ (T20-4)	Always	Below 1 Ω
CGND (T21-19) - CGND (T20-3)	Always	Below 1 Ω
CV+ (T21-40) - CV+ (T20-2)	Always	Below 1 Ω
CV- (T21-39) - CV- (T20-1)	Always	Below 1 Ω
CB+ (T21-20) - Body ground	Always	10 kΩ or higher
CGND (T21-19) - Body ground	Always	10 kΩ or higher
CV+ (T21-40) - Body ground	Always	10 kΩ or higher
CV- (T21-39) - Body ground	Always	10 kΩ or higher

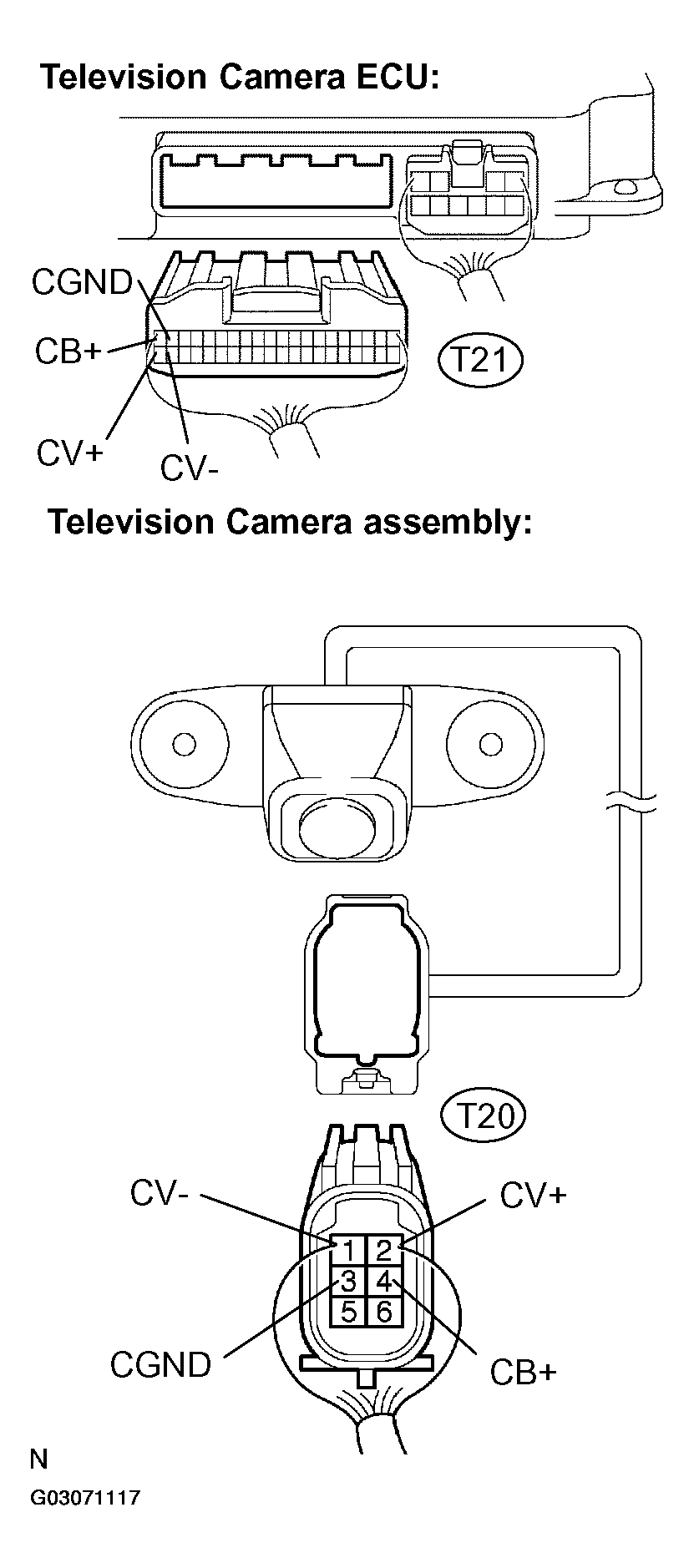

Fig 5: Disconnecting T21 Connector From Television Camera ECU

NG: Repair or replace harness or connector.
OK: Go to next step.

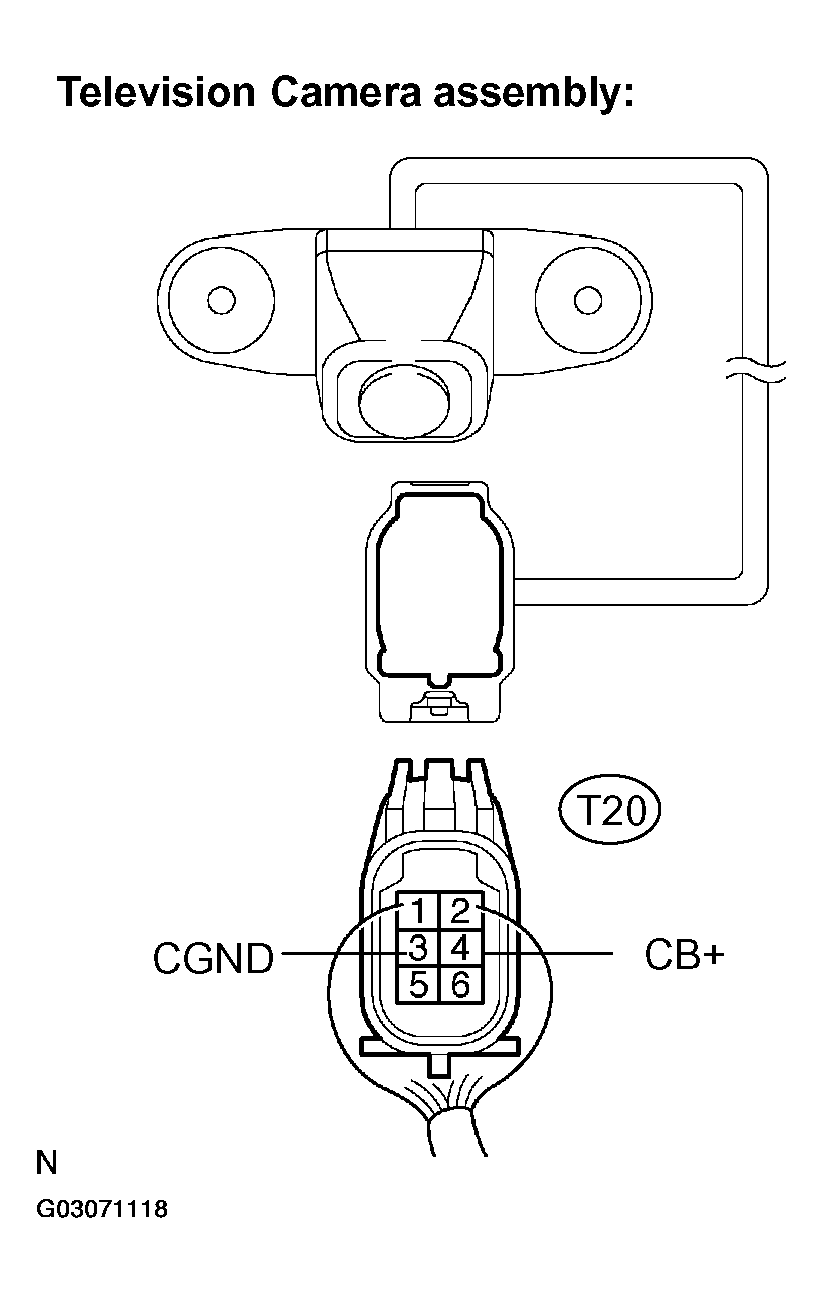

Check voltage between terminals +CB and CGND of television camera.

Connect the T21 connector to the television camera ECU.
Measure the voltage according to the value(s) in VOLTAGE CONDITION .

Standard:

VOLTAGE CONDITION

Tester connection (Terminal No.)	Condition	Specified condition
CB+ (T20-4) - CGND (T20-3)	IG SW ON, shift lever R position	Approx. 6 V

Fig 6: Connecting Connector

NG: Replace television camera ECU.
OK: Proceed to next circuit inspection shown in PROBLEM SYMPTOMS TABLE .
