Caution Screen

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

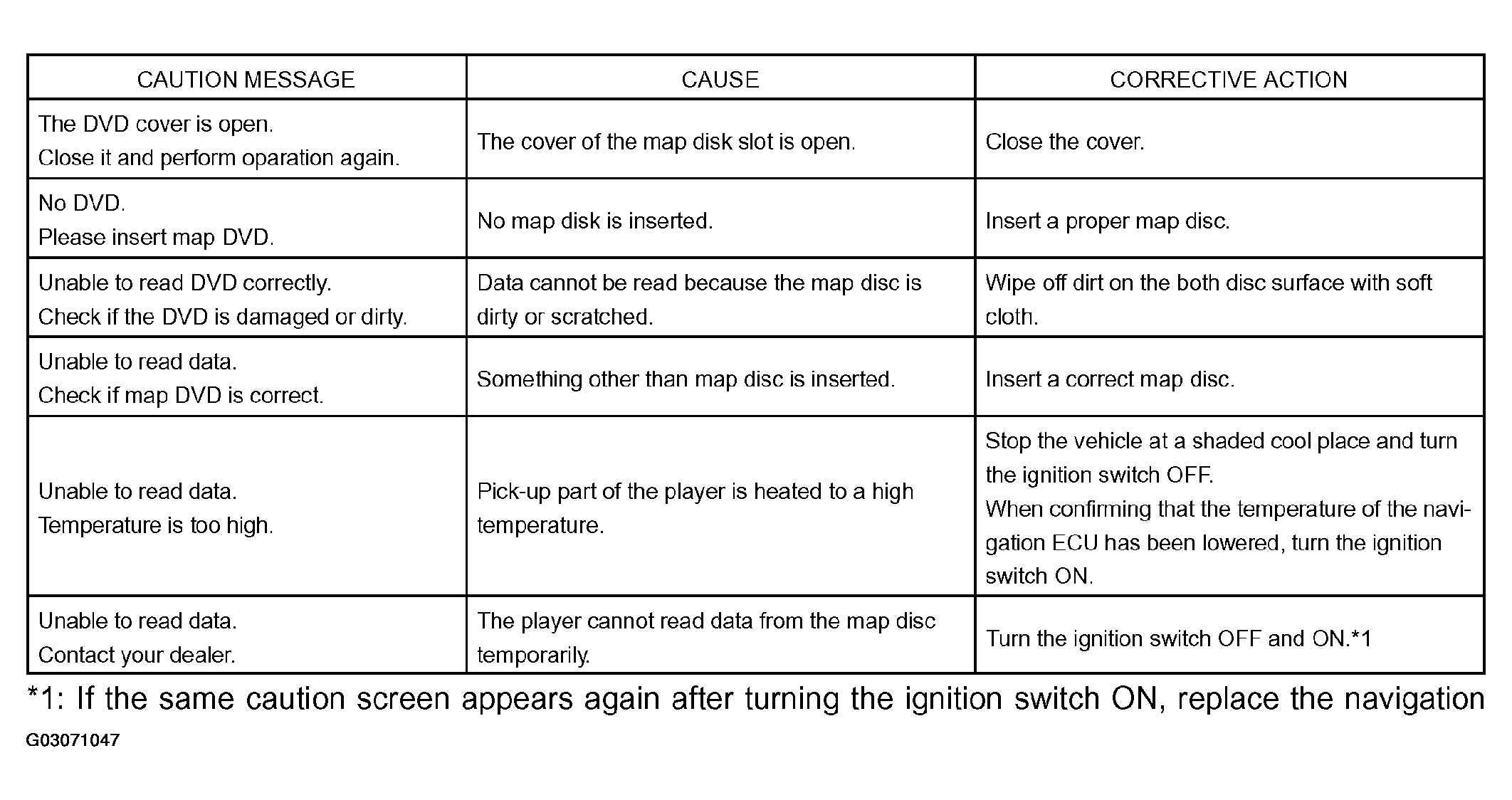

Fig 1: Diagnostic Reference Table - Caution Screen
G03071047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1: If the same caution screen appears again after turning the ignition switch ON, replace the navigation ECU.
