Trailer Towing System: Location

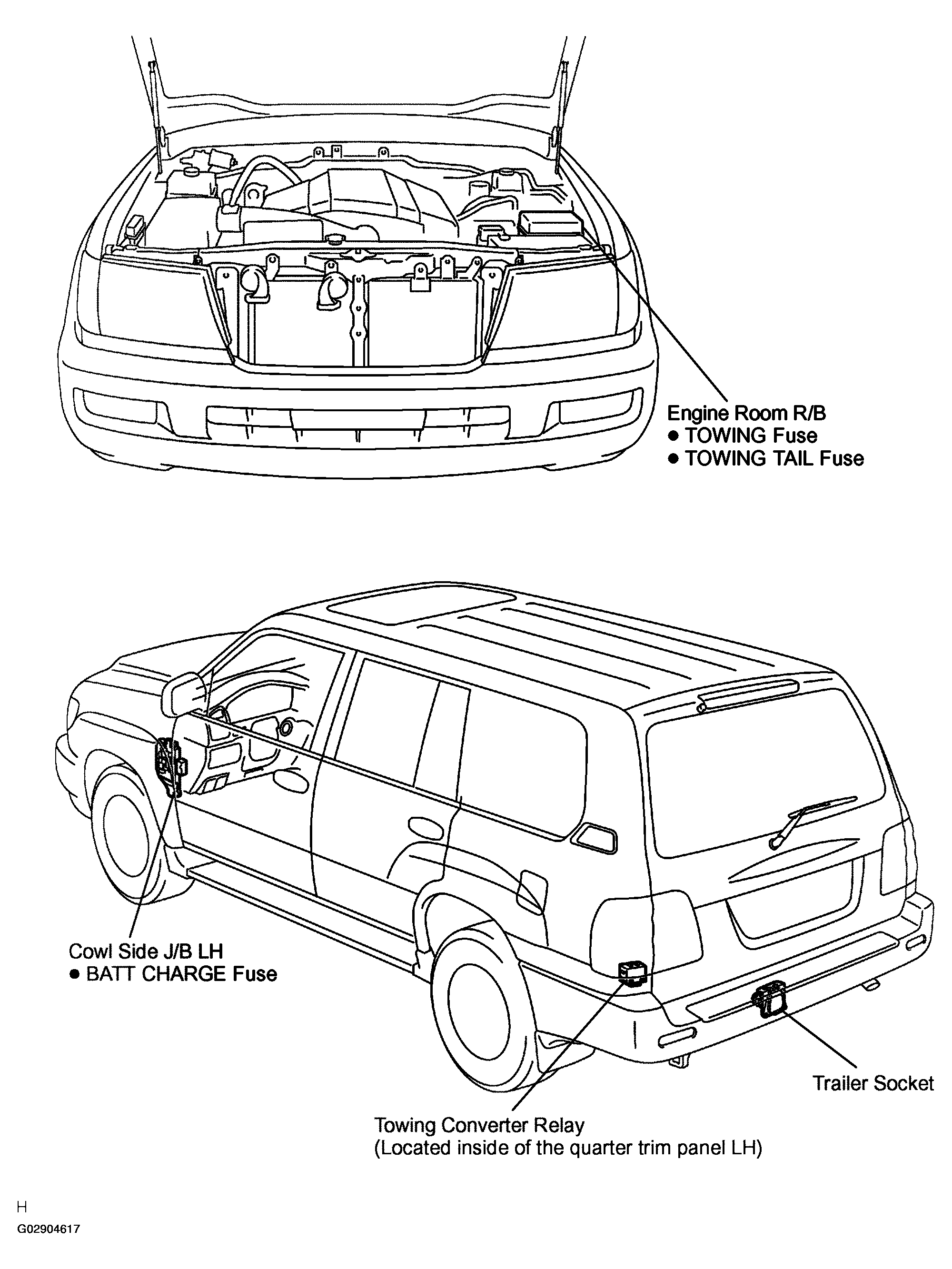

Fig 1: Locating Trailer Towing Components
G02904617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
