Power Window Control System:

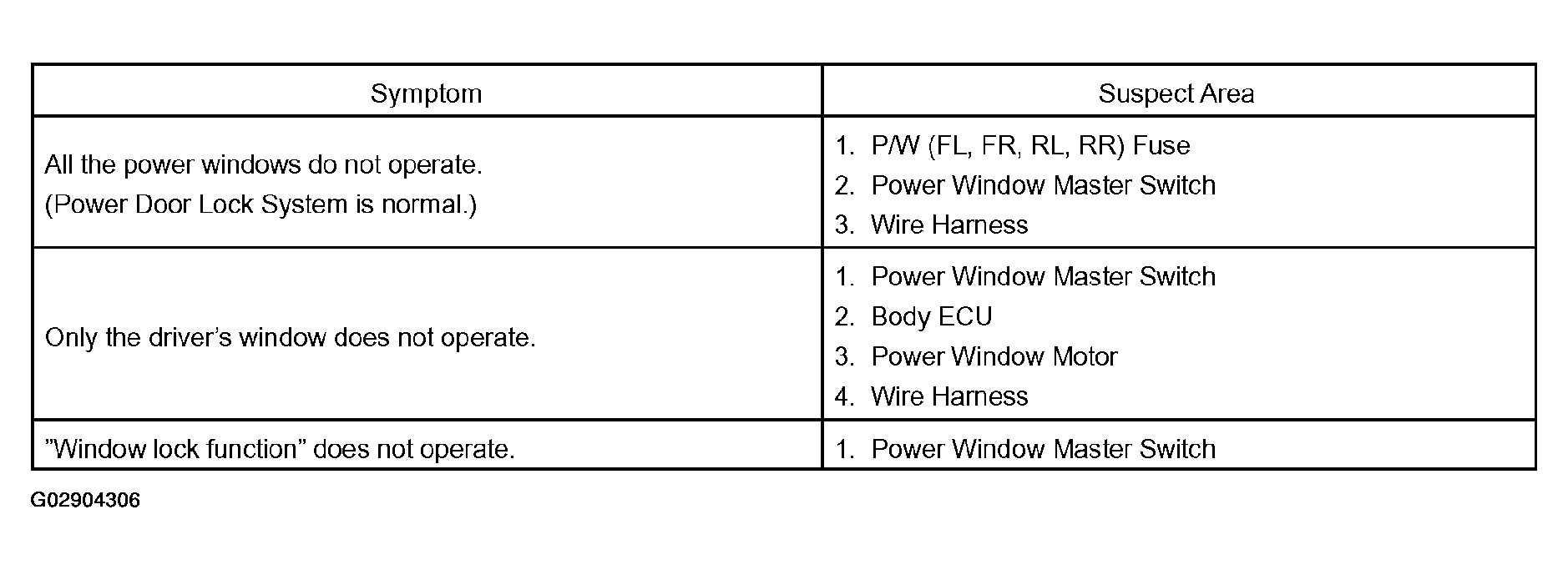

Fig 1: Identifying Power Window Control System Troubleshooting
G02904306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

This system uses the body control system, so check diagnosis system of the body control system before you proceed with troubleshooting.
