Front Axle Hub Sub-ASSY LH: Components

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

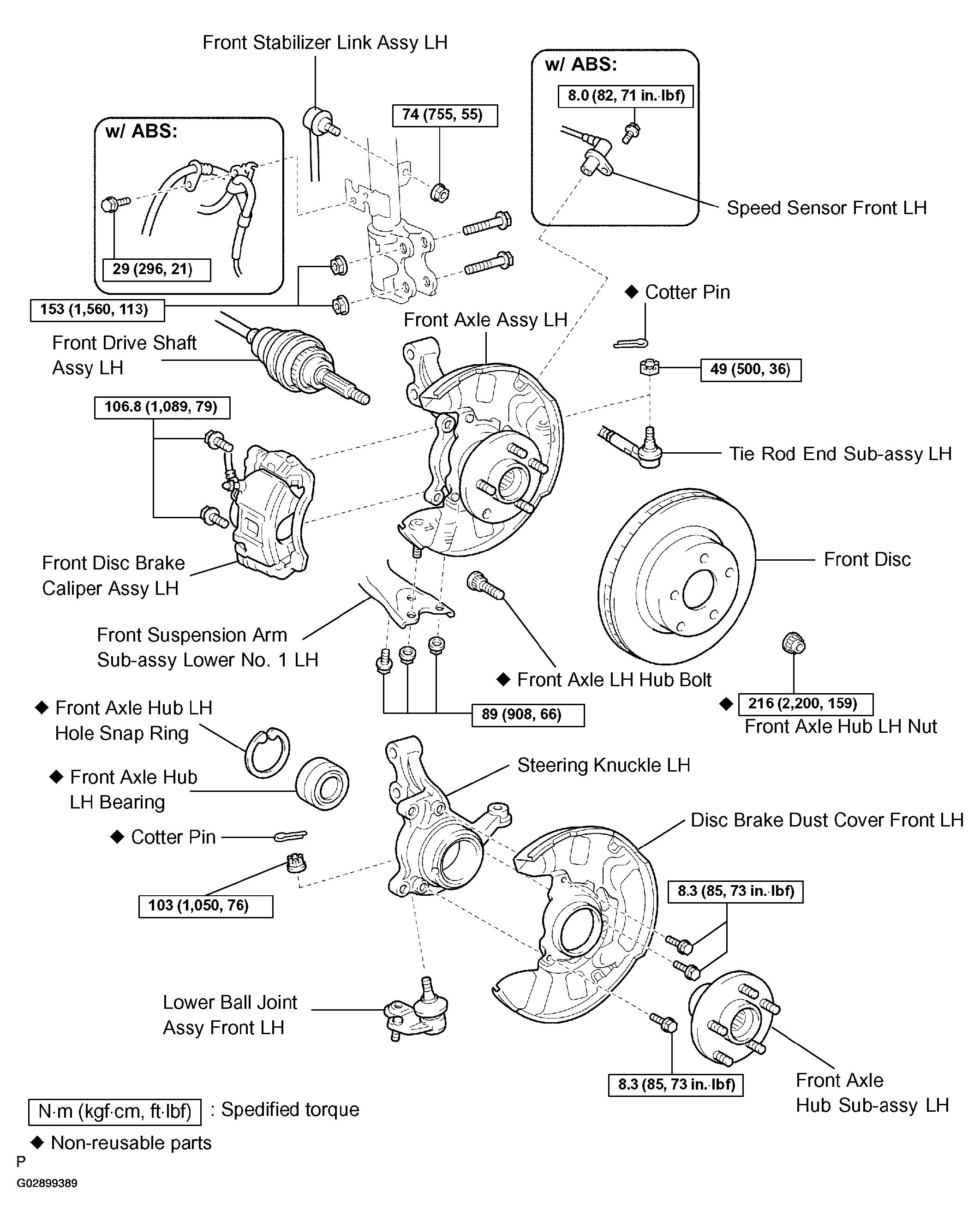

Fig 1: Identifying Front Axle Hub Sub-Assy LH Component
G02899389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
