Circuit Description

This DTC is output when the power window regulator motor assy malfunctions.

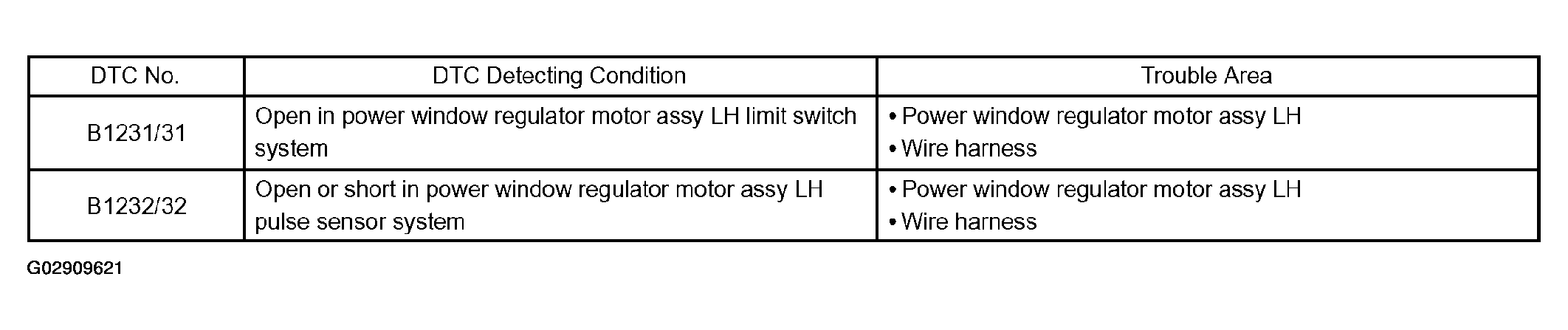

Fig 1: Identifying Power Window Regulator Motor Assy DTC Table
G02909621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
