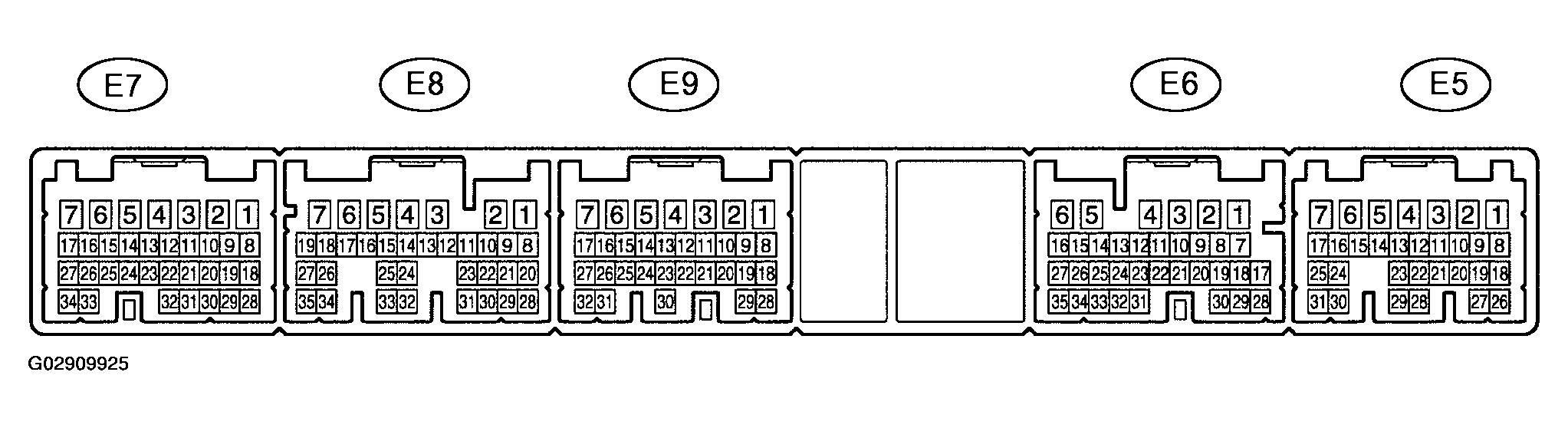

Terminals Of ECM
SPECIFICATION TERMINAL CONDITION
| Symbols (Terminals No.) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| TC - E1 (E5-20 - E9-1) | O - BR | Ground | Ignition switch ON --> Connect terminals TC and CG of DLC3 | 10 to 16V --> Below 1 V |
| STP - E1 (E6-19 - E9-1) | BR- BR | Stop lamp signal | Ignition switch ON Depress brake pedal --> Release brake pedal | 10 to 16 V Below 1 V |
| CCS - E1 (E6-24 - E9-1) | LG - BR | Cruise control main switch circuit | Ignition switch ON CANCEL switch hold ON -/SET switch hold ON +/RES switch hold ON MAIN switch hold ON | 10 to 16V 6.6 to 11.4 V 4.5 to 8.1 V 2.3 to 4.5 V Below 1 V |
| ST1- - E1 (E6-12 - E9-1) | V - BR | Stop lamp signal | Ignition switch ON Depress brake pedal --> Release brake pedal | Below 1 V --> 10 to 16V |
