Diagnostic Trouble Code Chart
HINT:
- Using SST 09843-18040, connect terminals TC and CG of the DLC3.
- If a trouble code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to the "See page" under respective "DTC No." in the DTC chart.

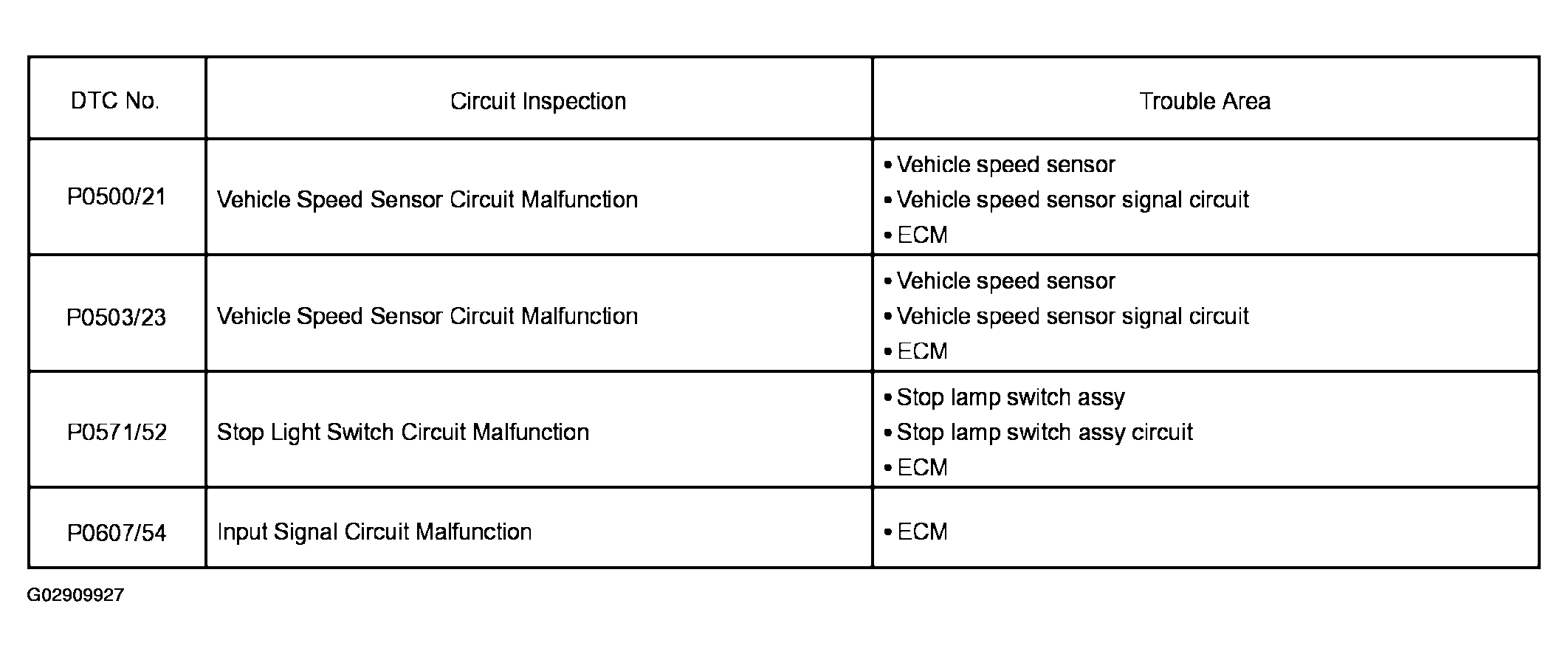

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC P0500/21, P0503/23 | VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION & VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION |
| DTC P0571/52 | STOP LIGHT SWITCH CIRCUIT MALFUNCTION |
| DTC P0607/54 | INPUT SIGNAL CIRCUIT MALFUNCTION |
