Data List/Active Test

1. While the hand-held tester is connected to the DLC3 and with the ignition switch turned to the ON position, the CRUISE CONTROL data list can be displayed. Follow the prompts on the tester screen to access the data list.

   CC (ECM):

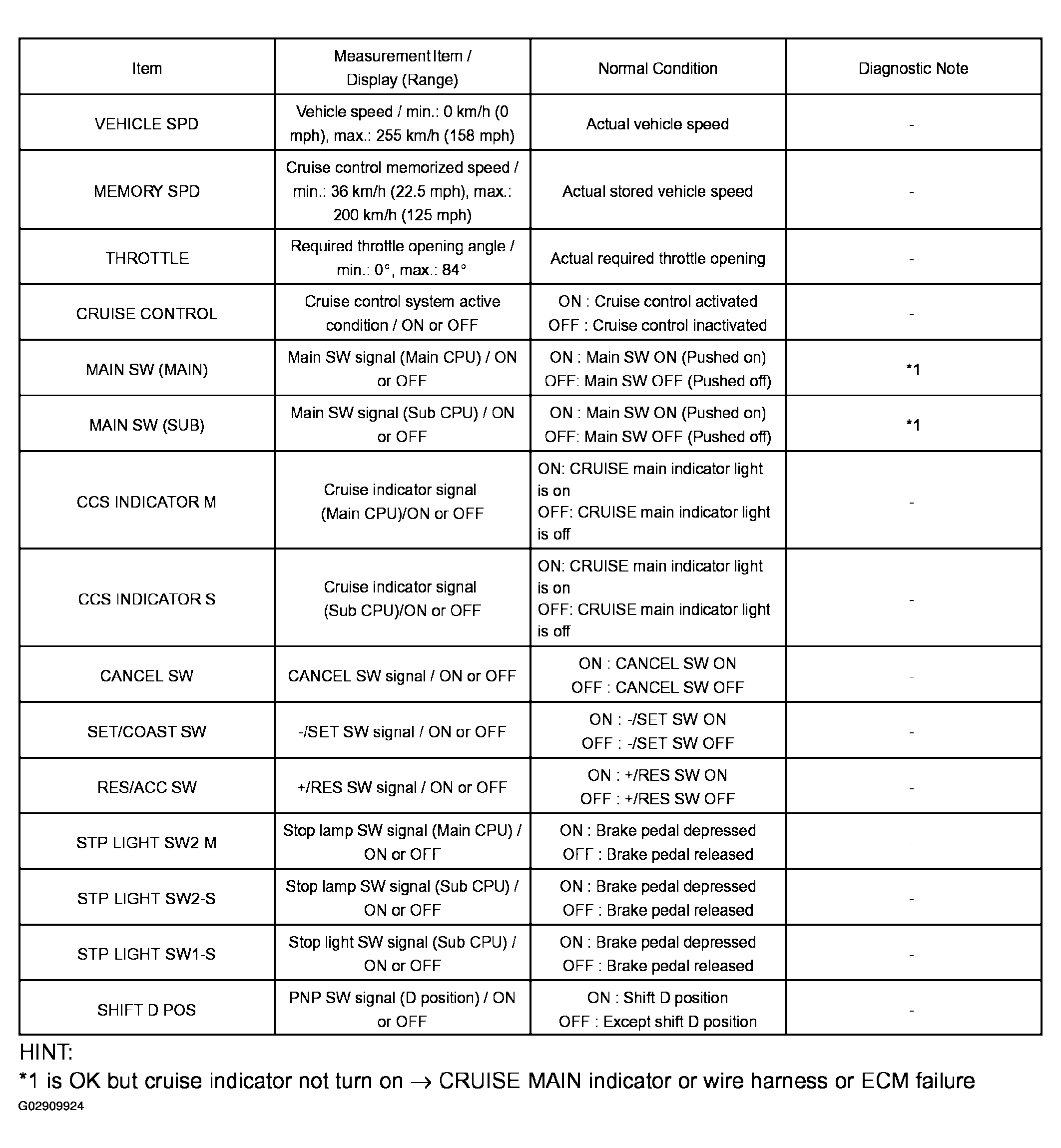

   Fig 1: Identifying Data List/Active Test

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the ACTIVE TEST using the hand-held tester allows components such as the relay, VSV, and actuator to operate without parts removal. Performing the ACTIVE TEST as the first step of trouble shoot in is one way to shorten labor time.

It is possible to display the DATA LIST during the ACTIVE TEST.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. According to the display on the tester, perform the "ACTIVE TEST".

   HINT:

   The ignition switch must be turned to the ON position to proceed ACTIVE TEST using the hand-held tester.

   COMBINATION METER ASSY:

   DIAGNOSTIC VEHICLE/TEST CONDITION CHART



   Item	Vehicle Condition / Test Details
   CRUISE INDIC	"CRUISE" indicator is ON / OFF
