Display function

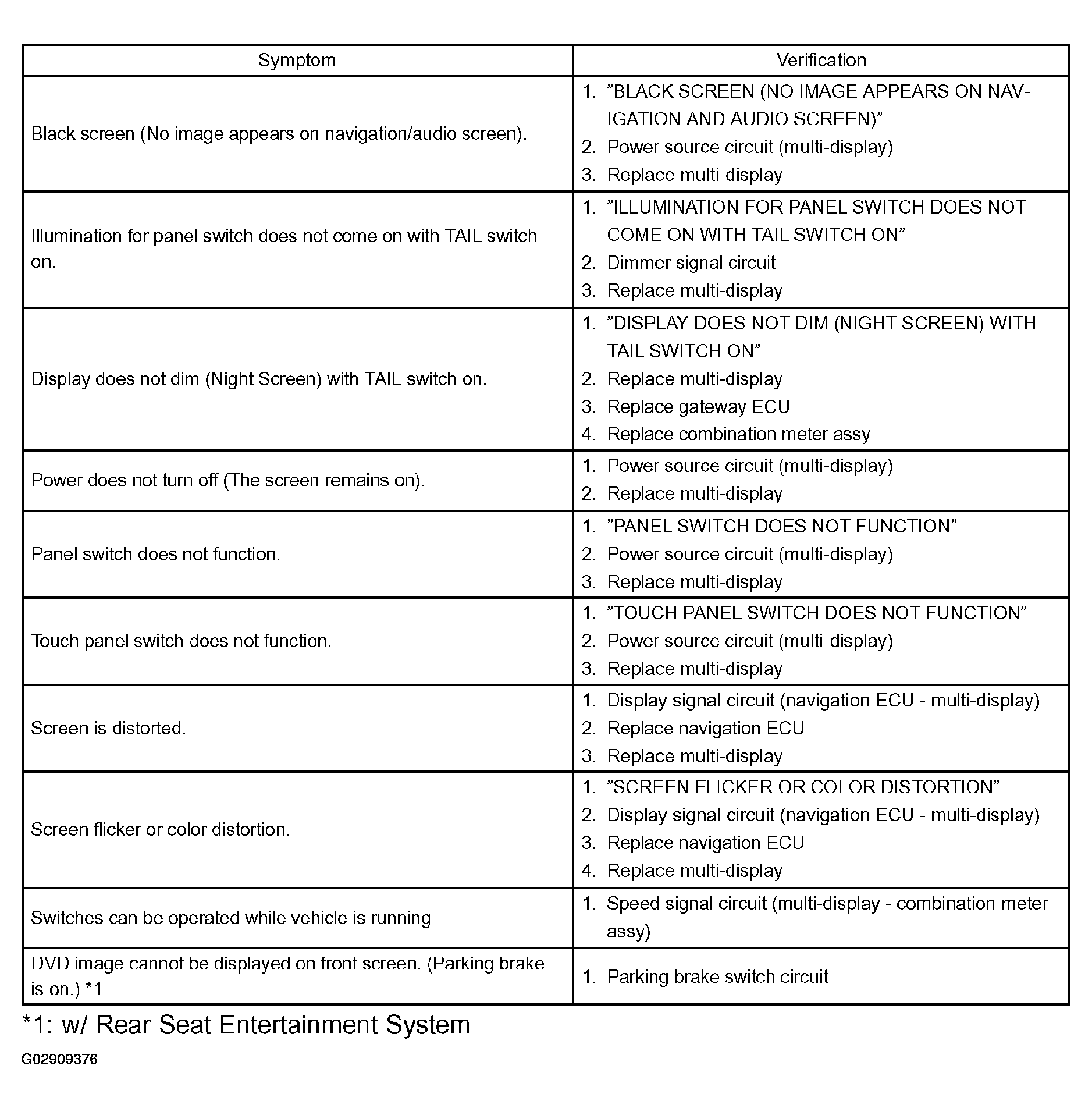

Fig 1: Problem Symptoms Chart - Display Function

G02909376

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
