Front Brake Speed Sensor: Components

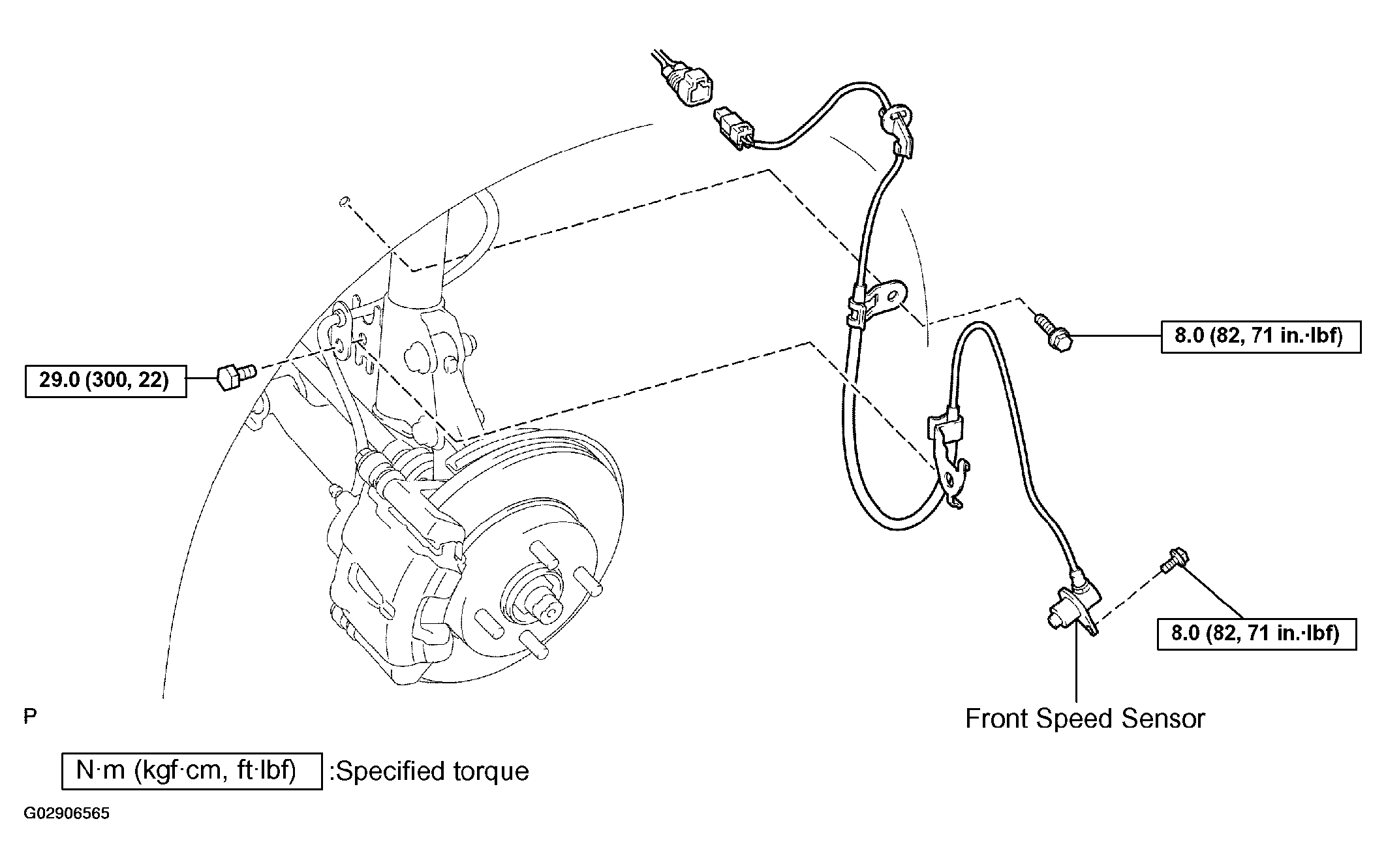

Fig 1: Identifying Front Speed Sensor

G02906565

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
