Key Unlock Warning Switch Circuit: Wiring Diagram

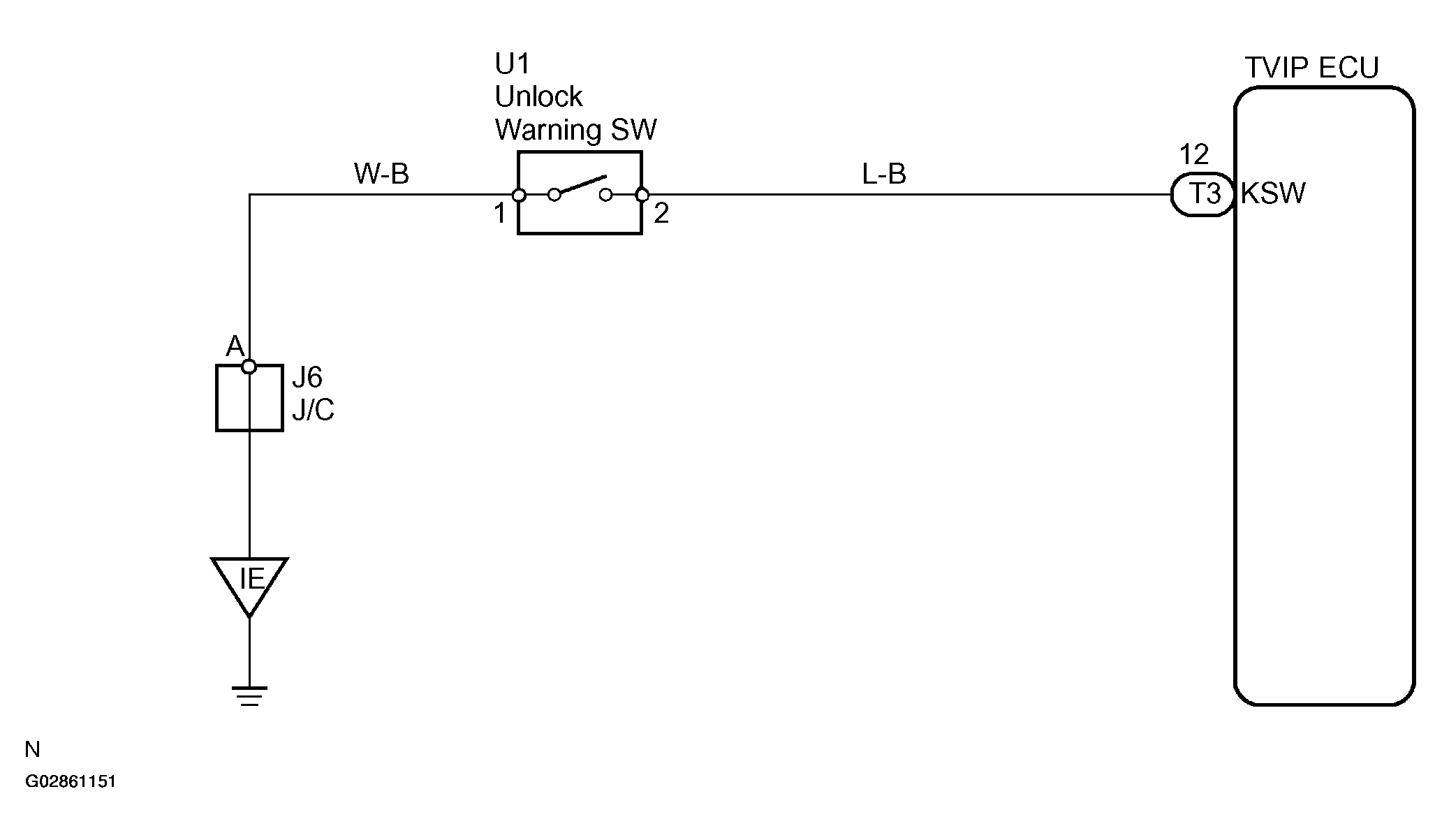

Fig 1: Key Unlock Warning Switch Circuit Wiring Diagram

G02861151

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
