Ignition Switch Circuit: Wiring Diagram

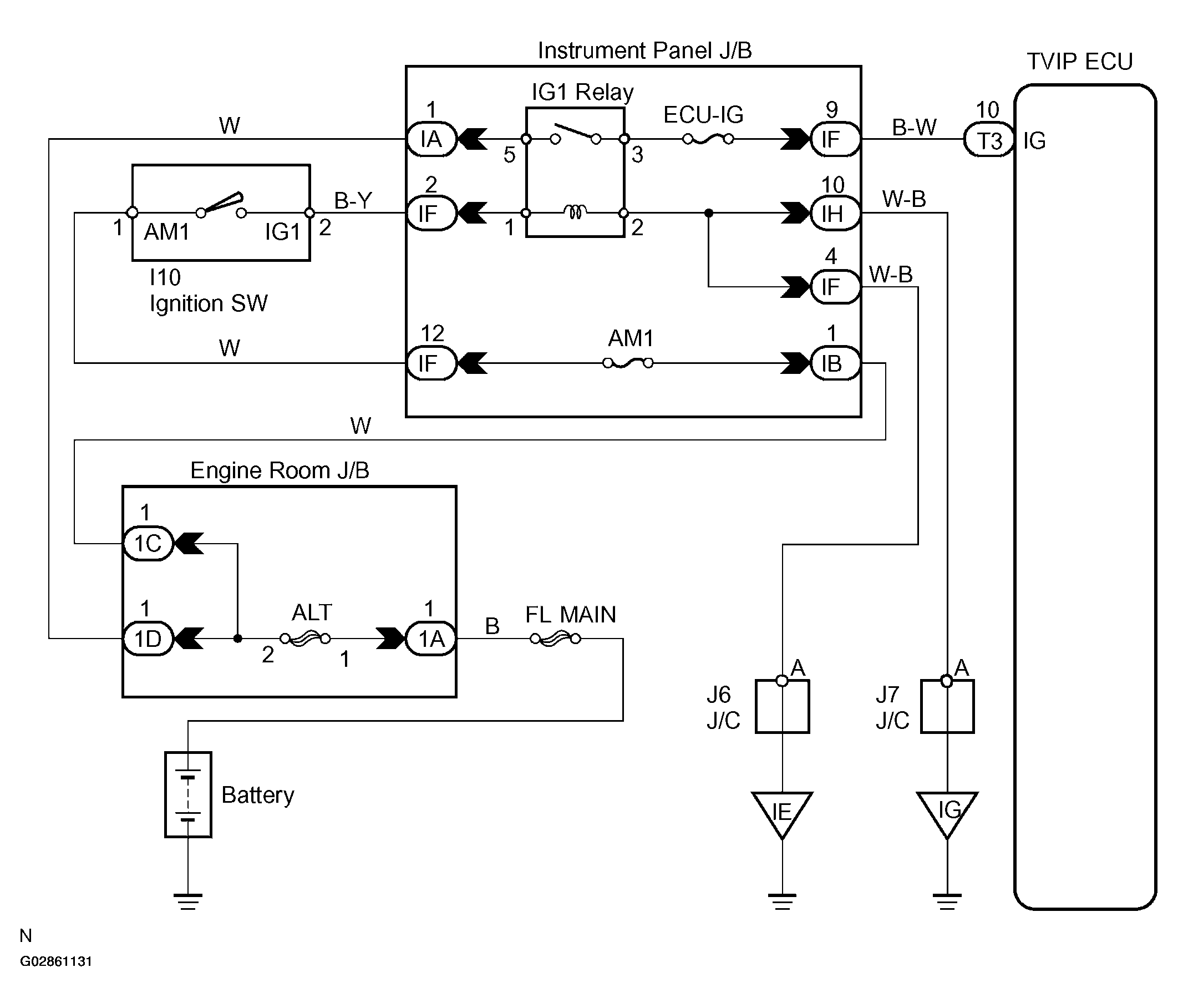

Fig 1: Ignition Switch Circuit Wiring Diagram

G02861131

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
