Service Data

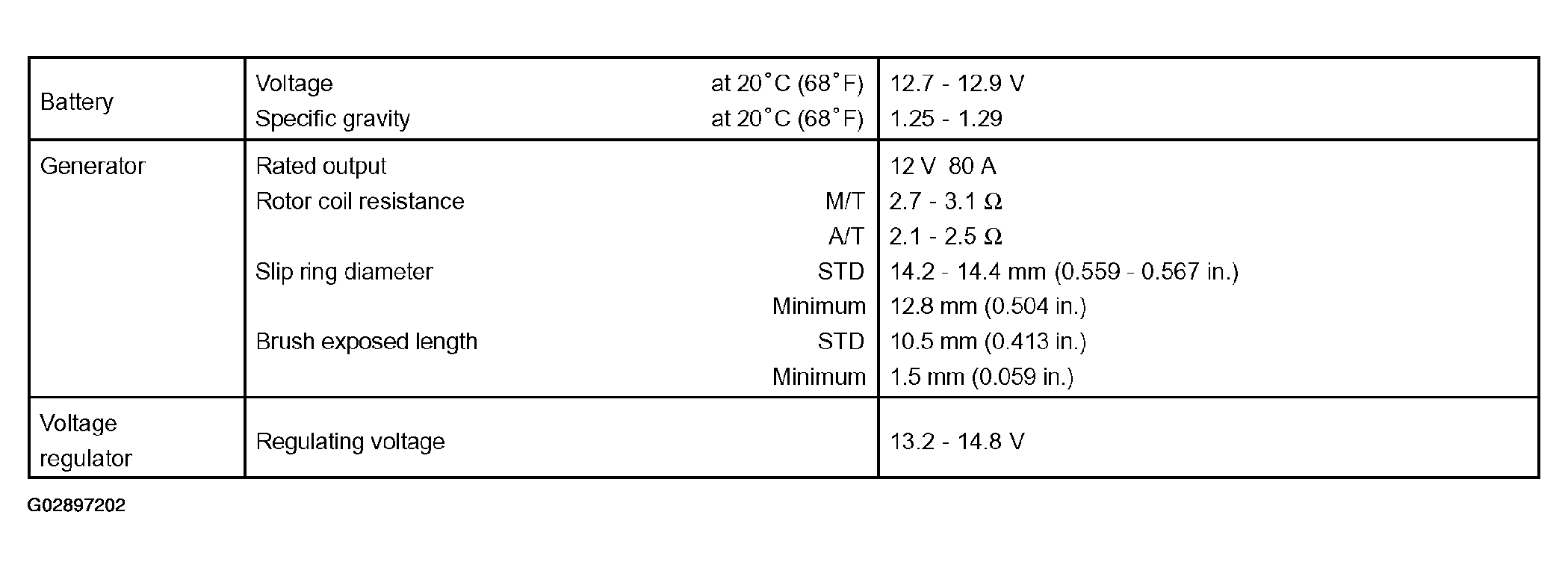

Fig 1: Charging Service Specifications

G02897202

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
