Inspection Procedure

  1. INSPECT FUSE (P/W NO. 2)
    1. Remove the P/W NO. 2 fuse from the instrument panel J/B.
    2. Measure the resistance of the fuse.

      Standard:  Below 1 Ω

    1. NG: REPLACE FUSE
    2. OK: Go to Next Step.
  2. CHECK POWER WINDOW REGULATOR SWITCH ASSY (B VOLTAGE)
    1. Disconnect the P9 regulator switch connector.
    2. Measure the voltage of the wire harness side connector.
      Fig 1: Checking Power Window Regulator Switch
      G03049857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

    P9 REGULATOR SWITCH CONNECTOR RESISTANCE SPECIFICATION

    Tester Connection Condition Specified Condition
    P9-4 (B) - Body ground Ignition switch ON 10 to 14 V
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (INSTRUMENT PANEL J/B ASSY - POWER WINDOW REGULATOR SWITCH)
    2. OK: Go to Next Step.
  3. INSPECT POWER WINDOW REGULATOR SWITCH ASSY (SWITCH OPERATION)
    1. Disconnect the P9 switch connector.
    2. Measure the resistance of the switch when the switch is operated.
      Fig 2: Measuring Resistance Of Power Window Regulator Switch
      G03049859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

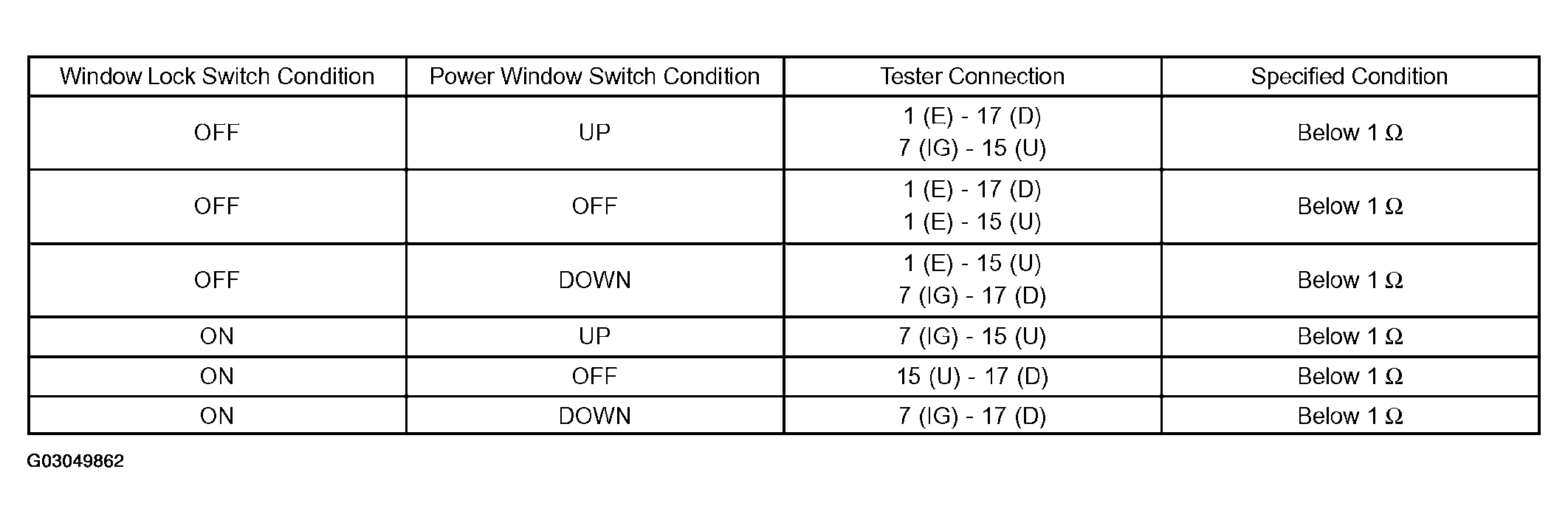

    Fig 3: Power Window Regulator Switch Resistance Specification Table
    G03049858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSY
    2. OK: Go to Next Step.
  4. CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH ASSY - POWER WINDOW REGULATOR MASTER SWITCH ASSY)
    1. Disconnect the P9 switch connector.
    2. Disconnect the D8 master switch connector.
    3. Measure the resistance of the wire harness side connectors.

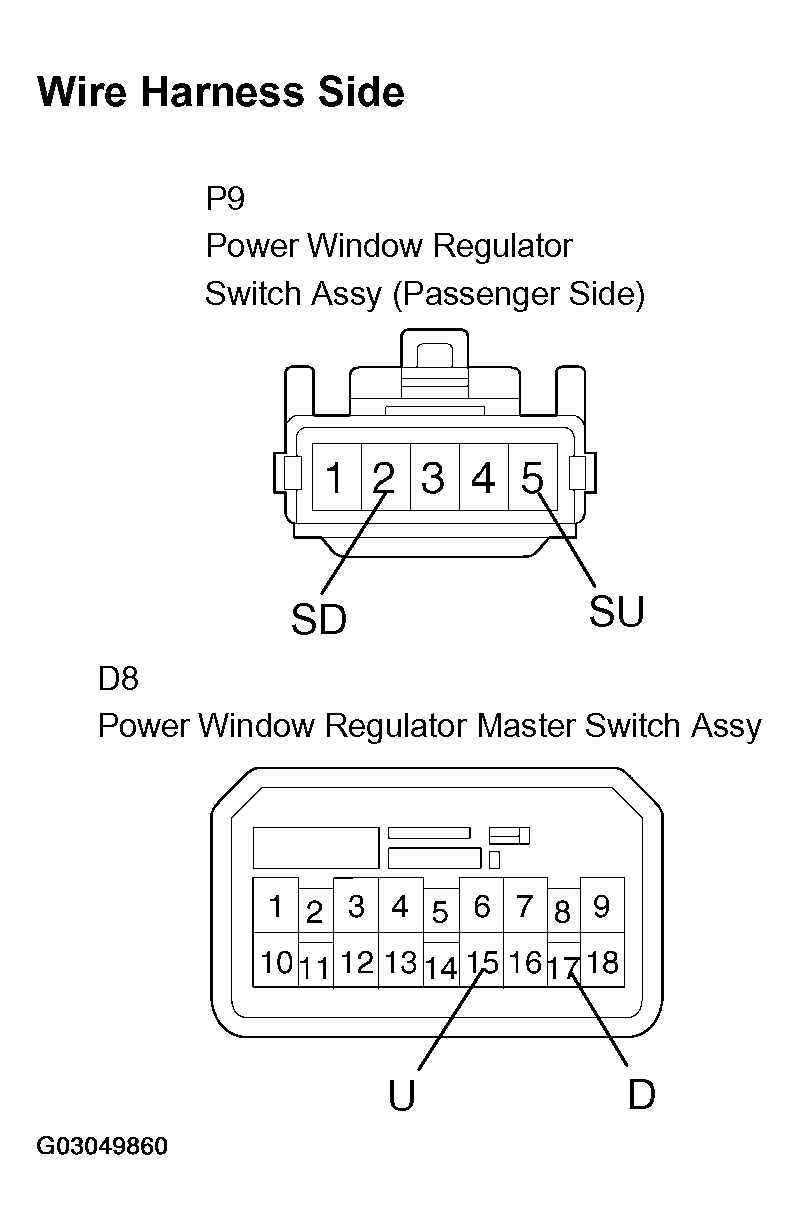

      Fig 4: Measuring Resistance Between Power Window Regulator & Master Switch
      G03049860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    P9 - D8 MASTER SWITCH CONNECTOR RESISTANCE SPECIFICATION

    Tester Connection Specified Condition
    P9-2 (SD) - D8-17 (D) Below 1 Ω
    P9-5 (SU) - D8-15 (U) Below 1 Ω
    P9-2 (SD) or D8-17 (D) - Body ground 10 kΩ or higher
    P9-5 (SU) or D8-15 (U) - Body ground 10 kΩ or higher
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: Go to Next Step.
  5. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY (PASSENGER SIDE)
    1. Disconnect the D8 master switch connector.
    2. Measure the resistance of the switch when the switch is operated.
    Fig 5: Measuring Resistance Of Power Window Regulator Master Switch (Passenger Side)
    G03049861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    Fig 6: Power Window Regulator Master Switch (Passenger Side) Resistance Specification Table
    G03049862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
    2. OK: Go to Next Step.
  6. CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH ASSY - CONVERTIBLE ROOF CONTROL ECU)
    1. Disconnect the P9 switch connector.
    2. Disconnect the C19 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

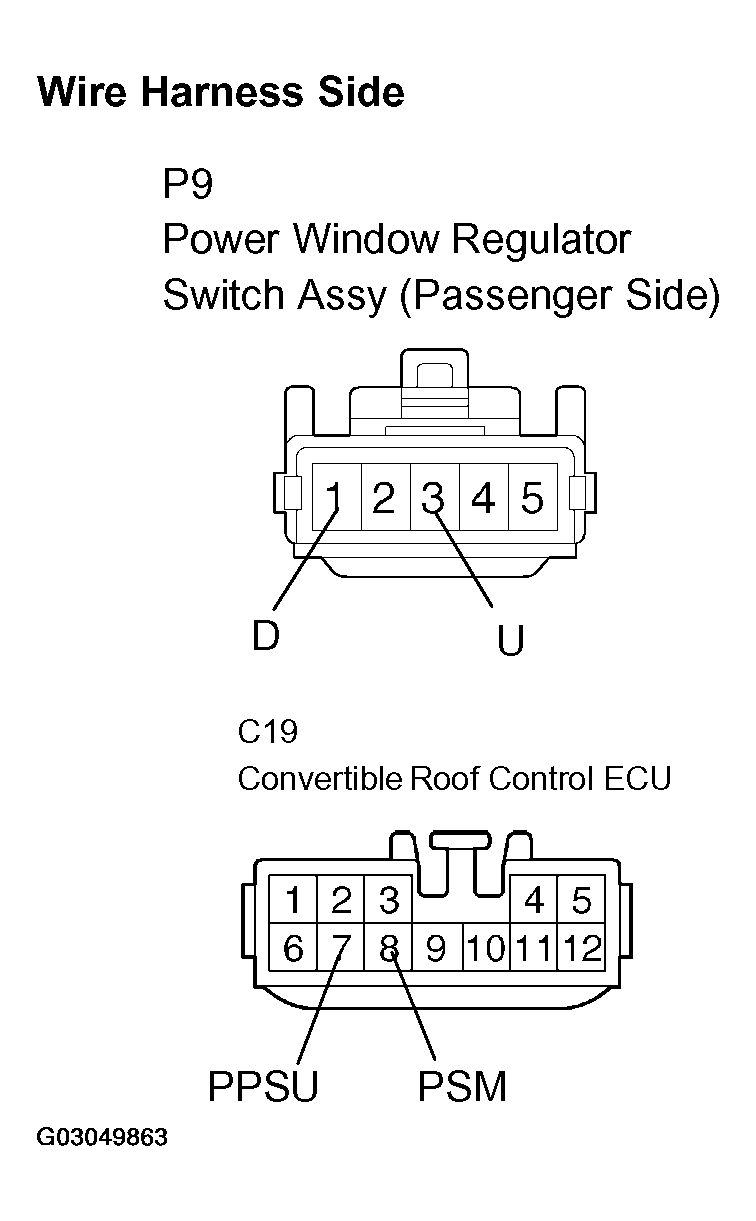

      Fig 7: Measuring Resistance Of Power Window Regulator Switch & Convertible Roof Control
      G03049863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

    POWER WINDOW REGULATOR SWITCH - CONVERTIBLE ROOF ECU CONNECTOR RESISTANCE SPECIFICATION

    Tester Connection Specified Condition
    P9-1 (D) - C19-8 (PSM) Below 1 Ω
    P9-3 (U) - C19-7 (PPSU) Below 1 Ω
    P9-1 (D) or C19-8 (PSM) - Body ground 10 kΩ or higher
    P9-3 (U) or C19-7 (PPSU) - Body ground 10 kΩ or higher
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: Go to Next Step.
  7. INSPECT POWER WINDOW REGULATOR MOTOR ASSY RH FRONT
    1. Apply battery voltage to connector terminals 1 and 2.
      NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
    2. Check that the motor smoothly rotates.

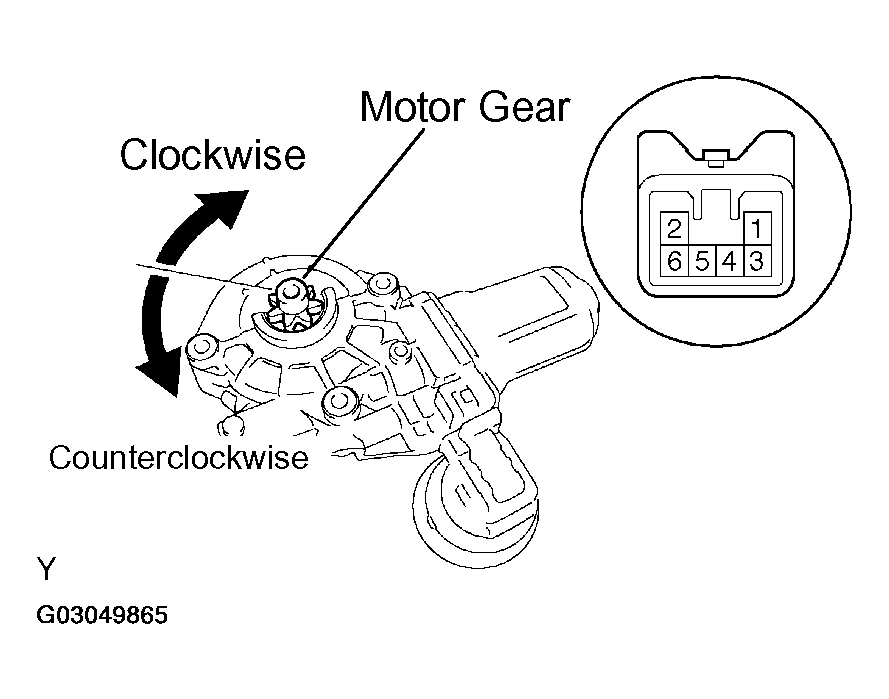

      Fig 8: Checking Motor Rotates
      G03049865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    Fig 9: Power Window Regulator Motor Gear Rotation (RH Front) Condition Table
    G03049864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSY RH FRONT
    2. OK: Go to Next Step.
  8. CHECK WIRE HARNESS (POWER WINDOW REGULATOR MOTOR ASSY RH - CONVERTIBLE ROOF CONTROL ECU)
    1. Disconnect the P8 motor connector.
    2. Disconnect the C19 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

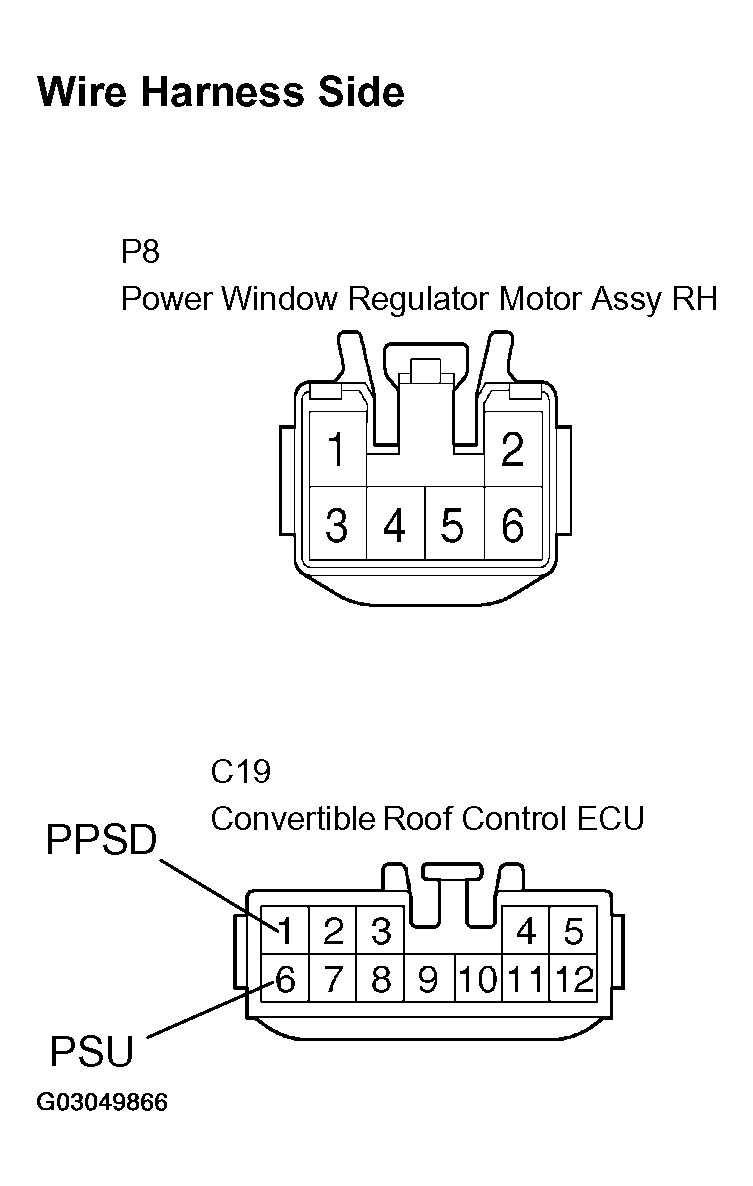

      Fig 10: Measuring Resistance Between Power Window Regulator Motor & Convertible Roof Control
      G03049866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

    P8 MOTOR - C19 ECU CONNECTOR RESISTANCE SPECIFICATION

    Tester Connection Specified Condition
    P8-1 - C19-6 (PSU) Below 1 Ω
    P9-2 - C19-1 (PPSD) Below 1 Ω
    P8-1 or C19-6 (PSU) - Body ground 10 kΩ or higher
    P9-2 or C19-1 (PPSD) - Body ground 10 kΩ or higher
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: REPLACE CONVERTIBLE ROOF CONTROL ECU
