Typical Enabling Conditions

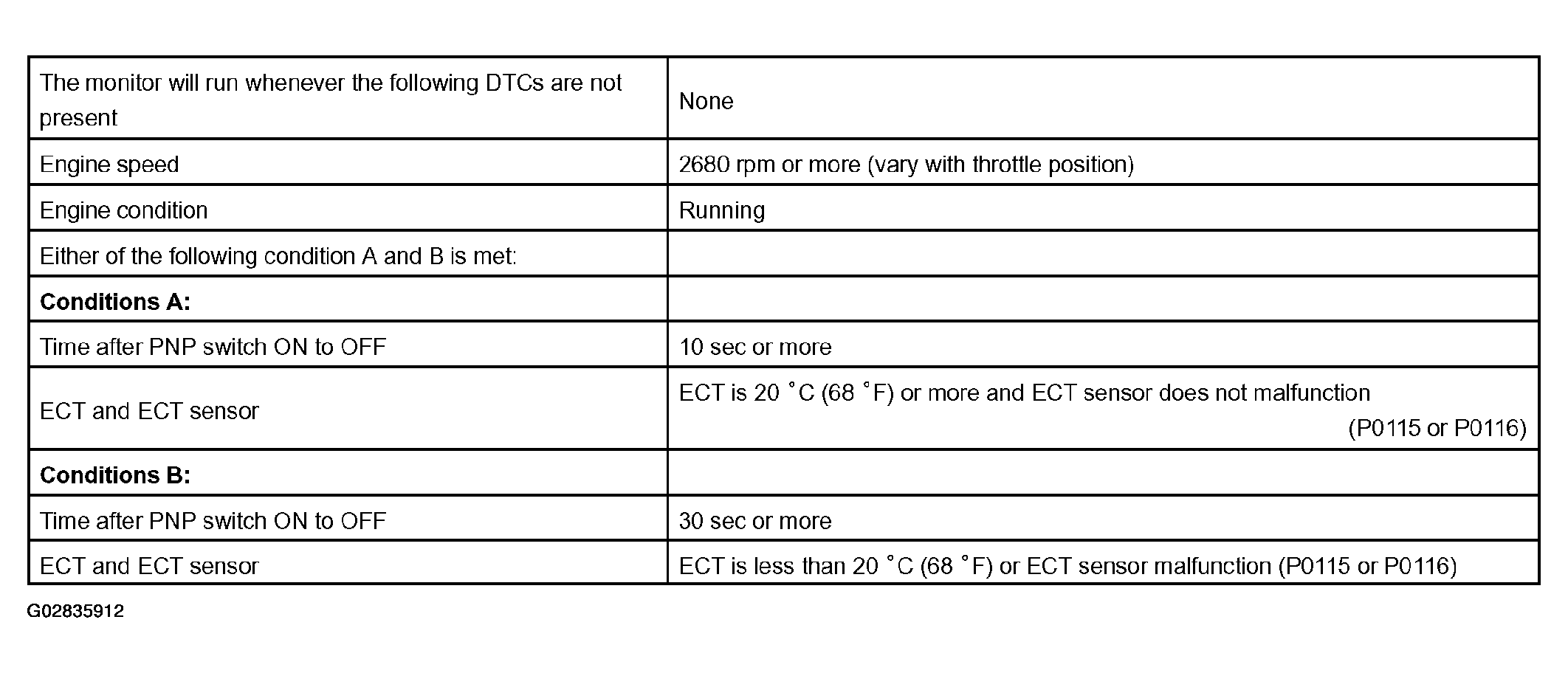

Fig 1: Monitor Strategy

G02835912

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
