Monitor Strategy

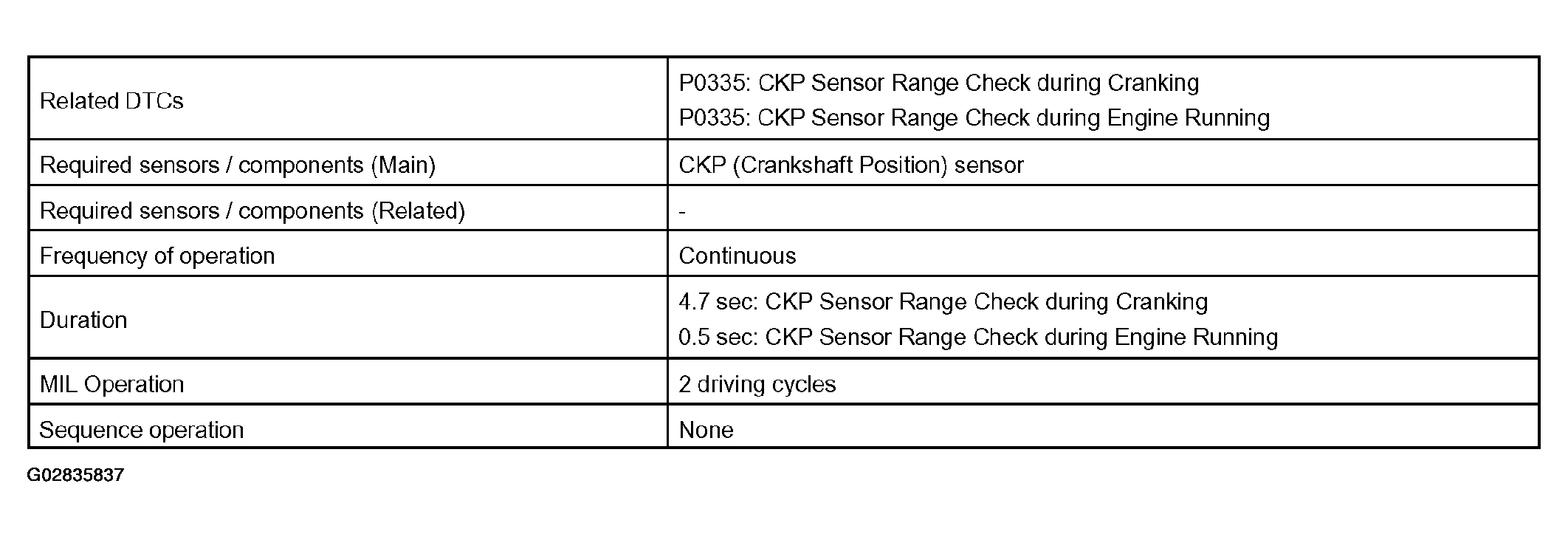

Fig 1: Monitor Strategy

G02835837

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
