DTC P0110: Intake Air Temperature Circuit: Wiring Diagram

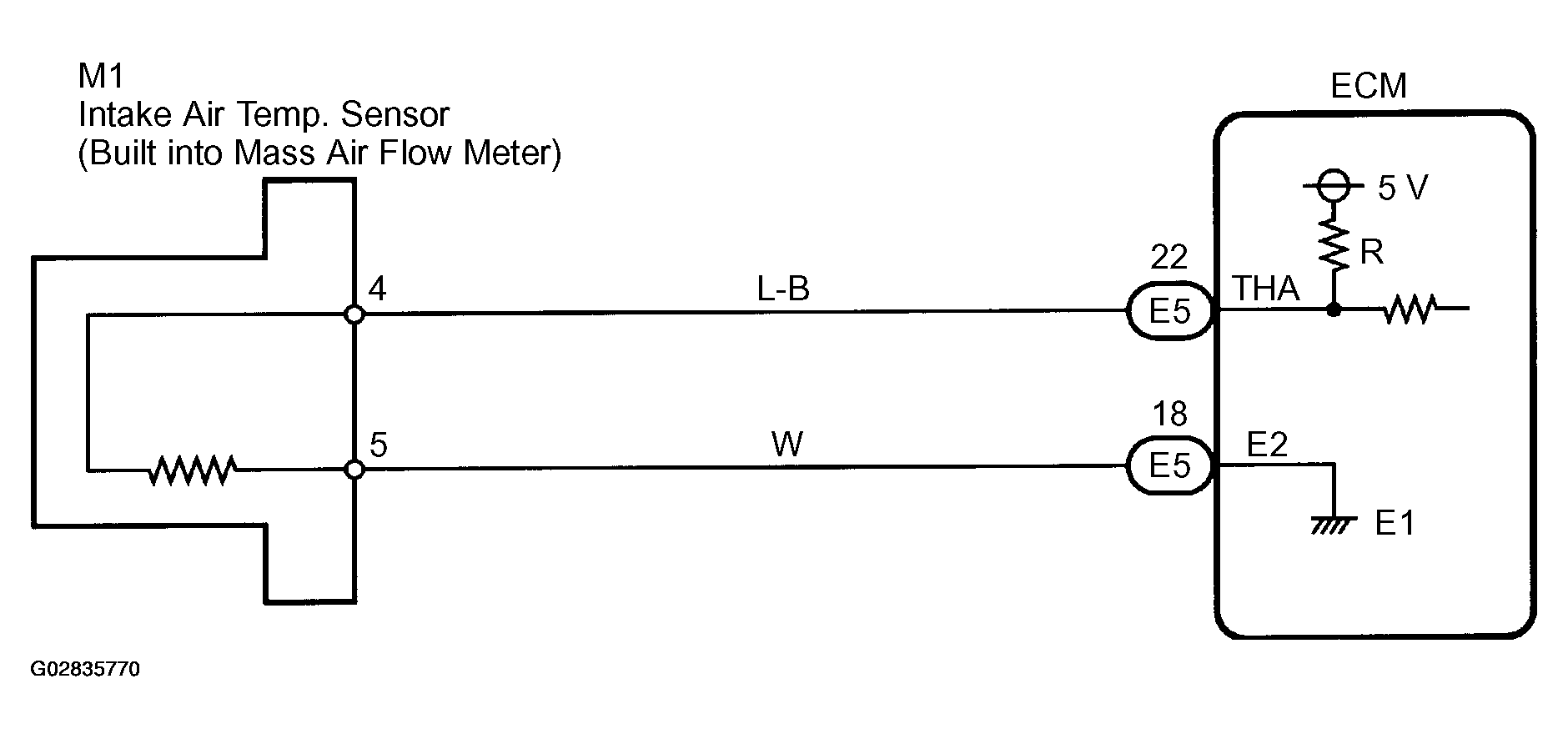

Fig 1: Identifying Wiring Diagram

G02835770

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
