ECM Power Source Circuit: Wiring Diagram

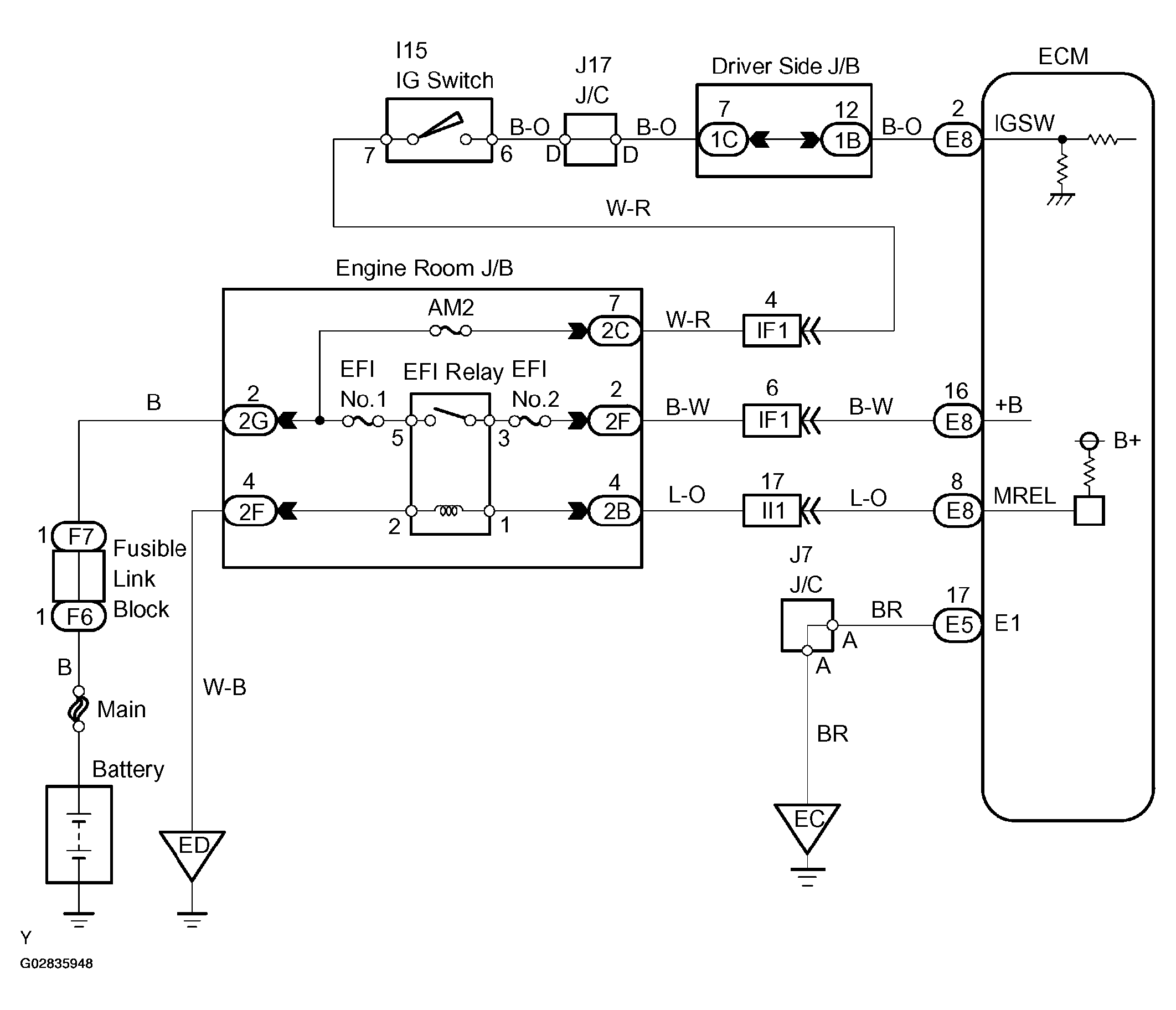

Fig 1: Identifying ECM Power Source Circuit Wiring Diagram

G02835948

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
