Position Sensor Power Source Circuit: Wiring Diagram

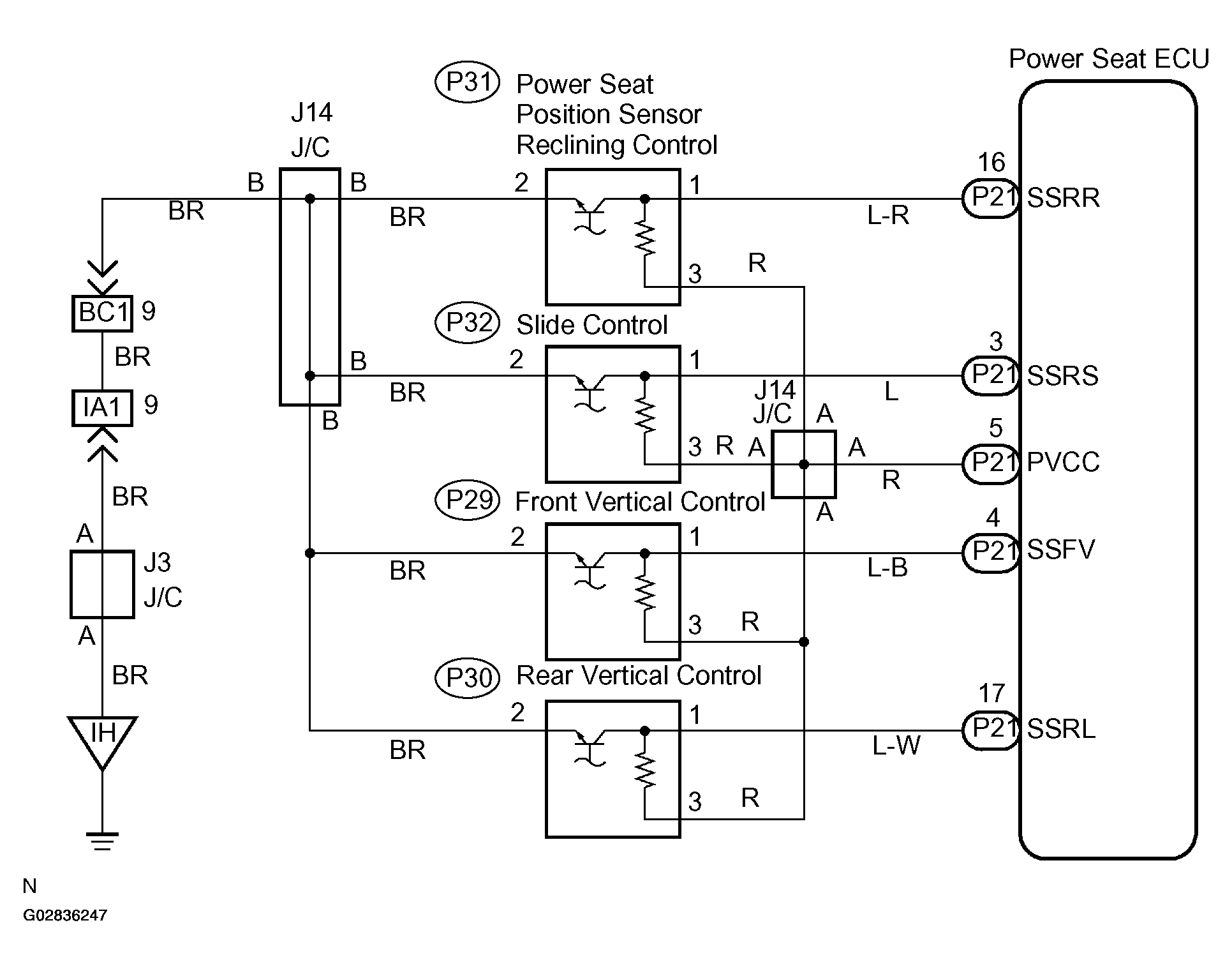

Fig 1: Position Sensor Power Source Circuit - Wiring Diagram

G02836247

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
