Inspection Procedure

  1. Check power door lock control system operation.

    CHECK:

    Check that the power door lock control system is operating normally.

    1. NG : Check power door lock control system (See  POWER DOOR LOCK CONTROL SYSTEM  ).
    2. OK : Go to Next Step.

  2. Check harness and connector between TVIP ECU and unlock detection switch.

    PREPARATION:

    1. Disconnect the T12 TVIP ECU connector.
    2. Disconnect the D25 or D26 door unlock detection switch connector.

    CHECK:

    Check the continuity between the wire harness side connectors.

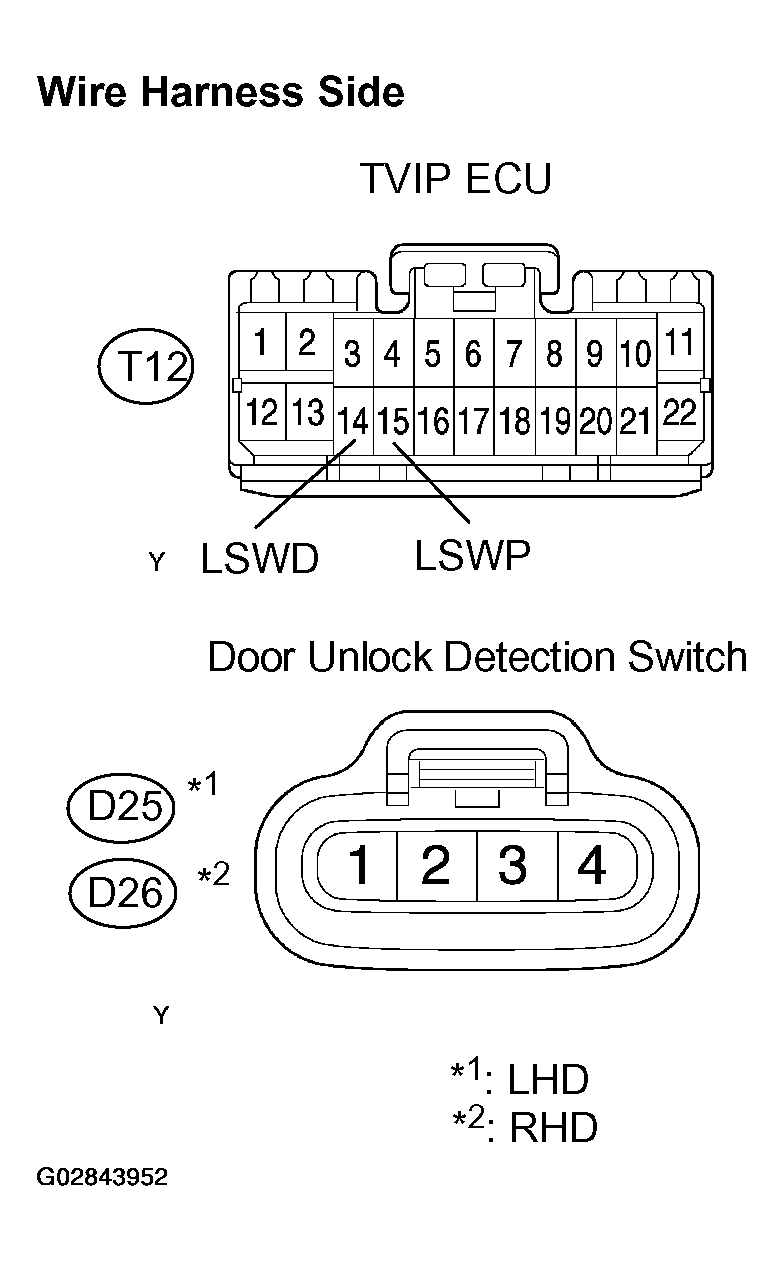

    Fig 1: Identifying T12 TVIP ECU Connector And D25 Or D26 Door Unlock Detection Switch Connector
    G02843952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    SPECIFIED CONDITION

    Symbols (Terminal No.) TVIP ECU <--> Unlock detection switch) Specified condition
    LSWD (T12-14) <--> - (D25-4) Continuity
    LSWP (T12-15) <--> - (D26-4) Continuity
    1. NG : Repair or replace harness and connector.
    2. OK : Check and replace TVIP ECU.
