Home >> Toyota >> 2003 >> Tacoma S-Runner >> Repair and Diagnosis >> Body & Frame >> Windows >> Quarter Window Glass >> Components

Quarter Window Glass: Components

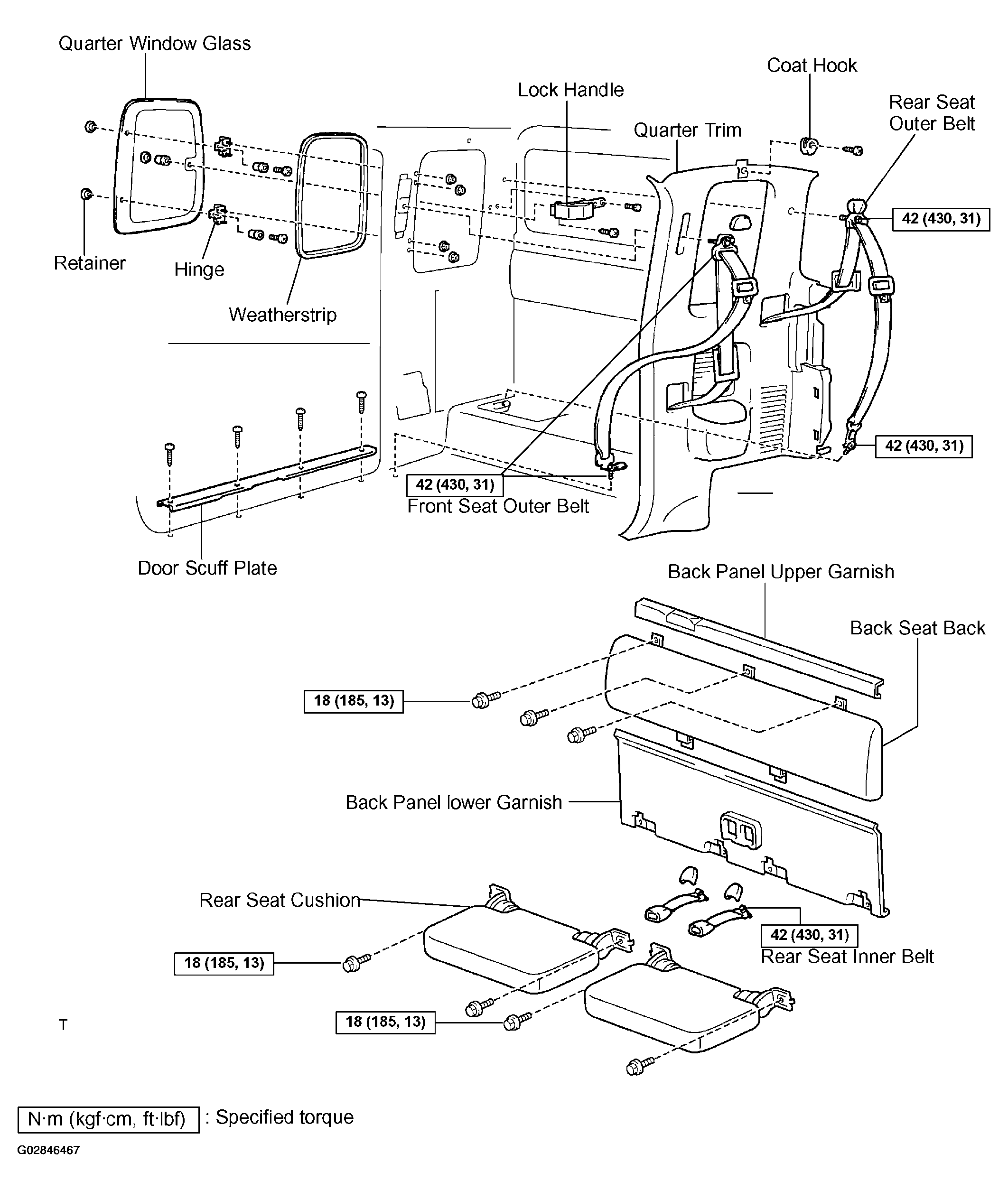

Fig 1: Locating Quarter Window Glass Components

G02846467

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
