Glossary Of Sae And TOYOTA Terms

This glossary lists all SAE-J1930 terms and abbreviations used in this article in compliance with SAE recommendations, as well as their TOYOTA equivalents.

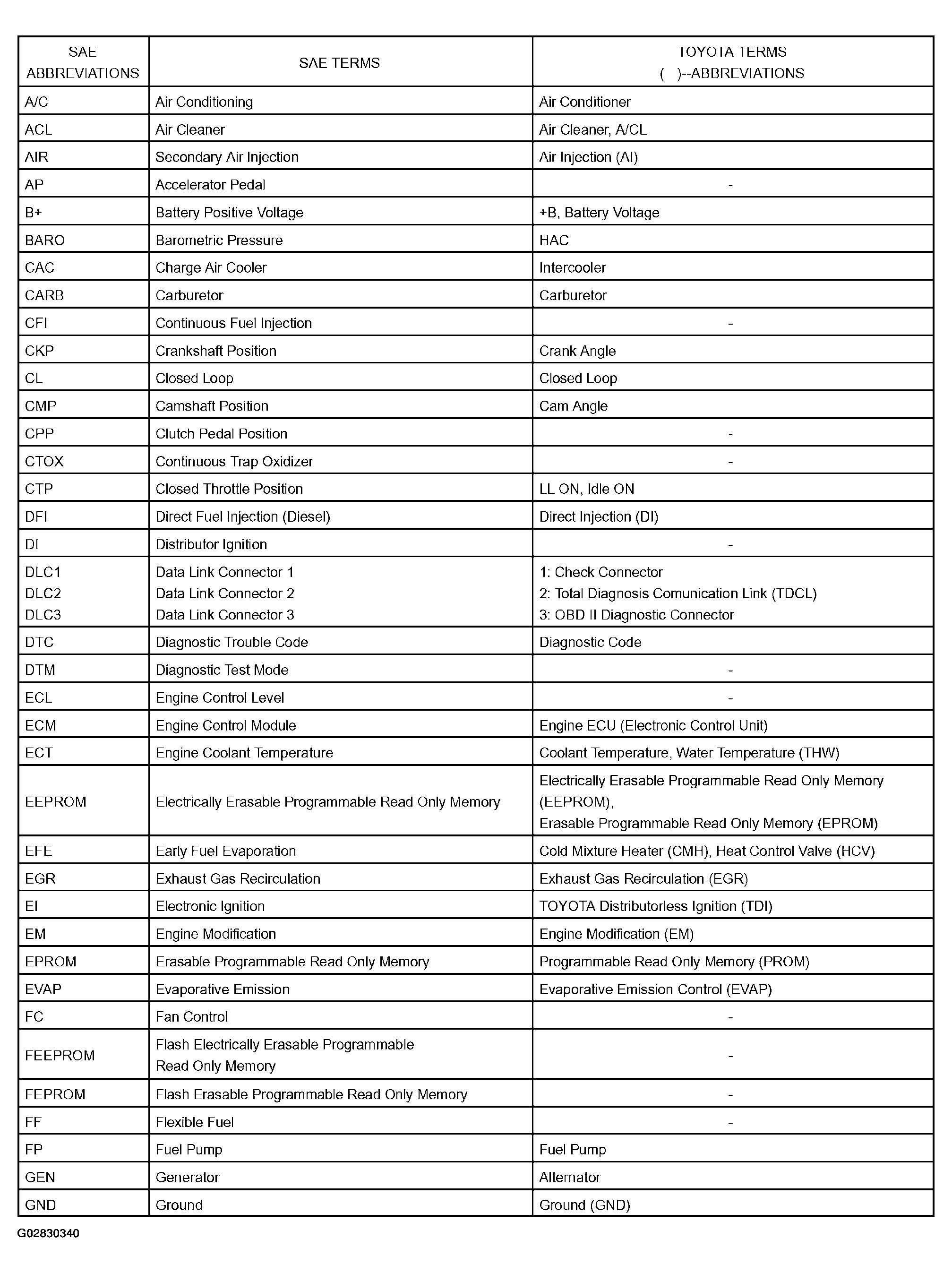

Fig 1: Glossary Of SAE & Toyota Terms (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

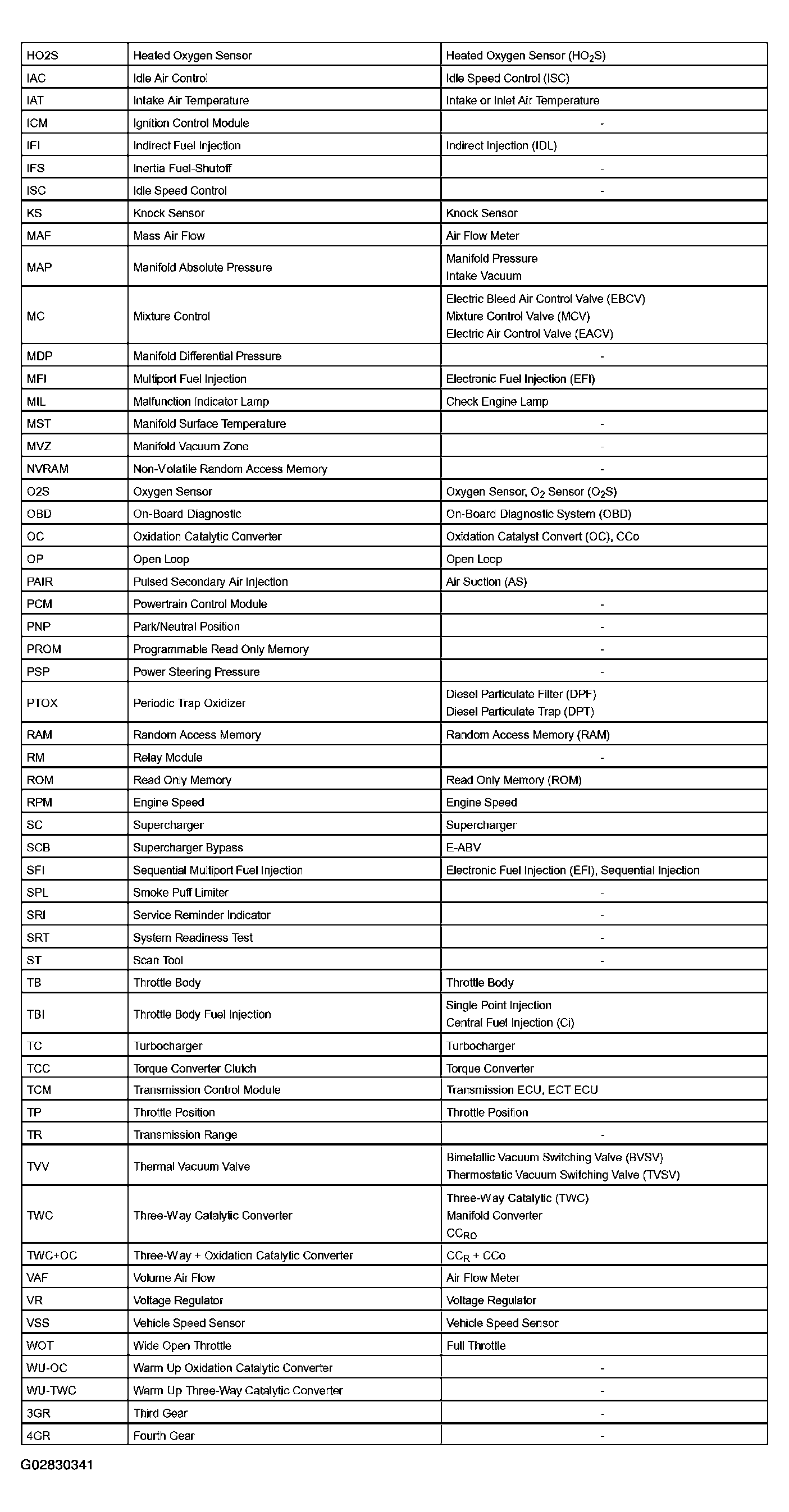

Fig 2: Glossary Of SAE & Toyota Terms (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
