Removal & Installation

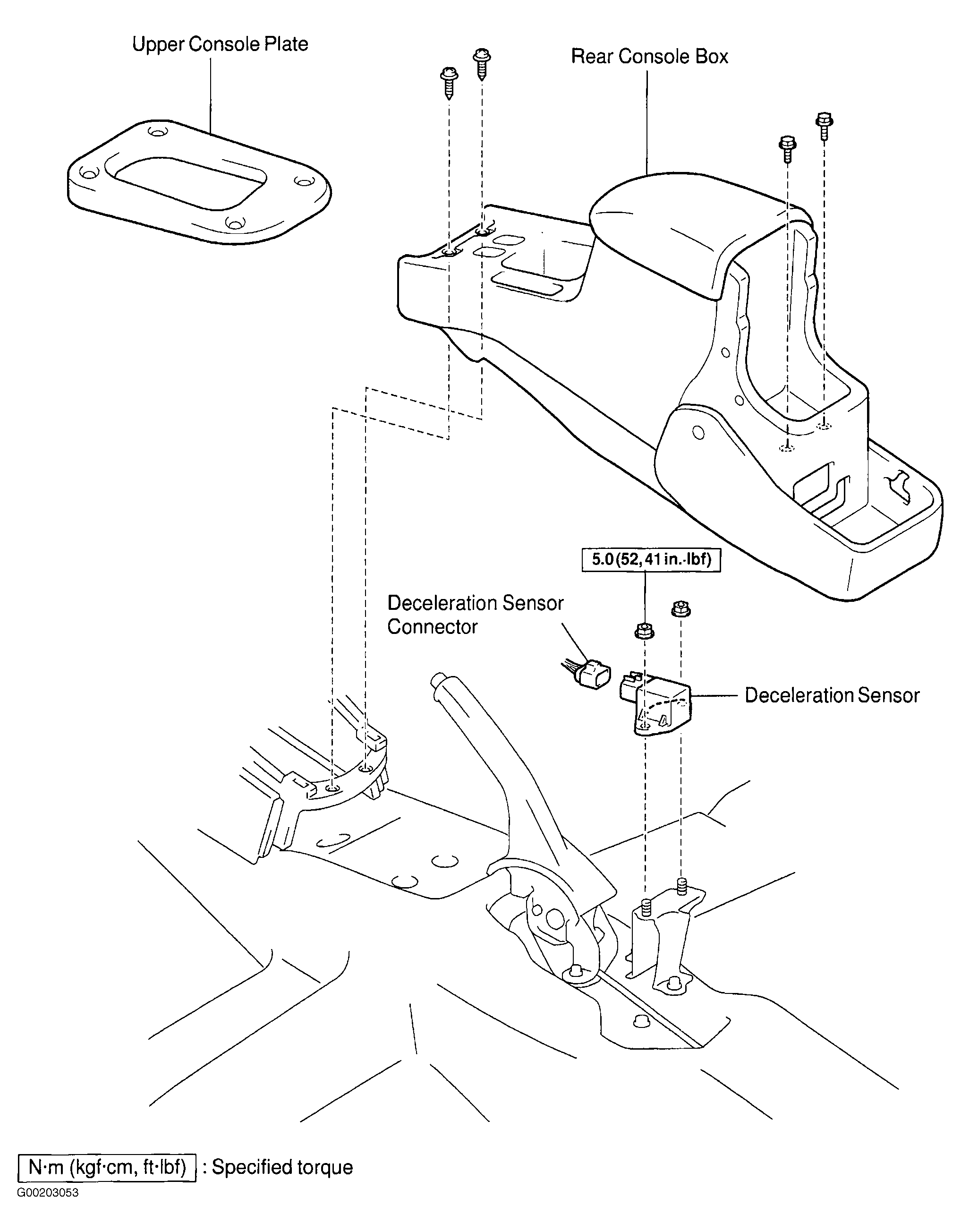

Remove rear console box and upper console plate. Disconnect sensor connector. Remove the 2 nuts and deceleration sensor. See Fig 1. Torque sensor mounting bolts to specification. See TORQUE SPECIFICATIONS .
