Passenger Side Junction Box Connector End View

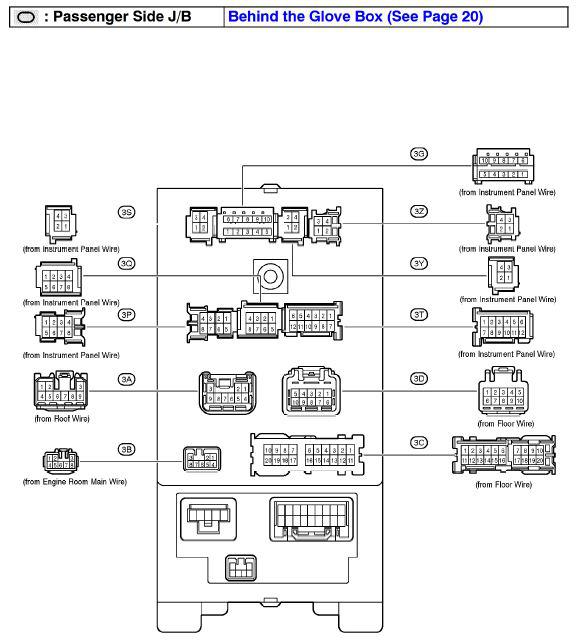

Fig 1: Passenger Side Junction Box Connector End View

G00576884

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
