Engine Immobilizer System: Location

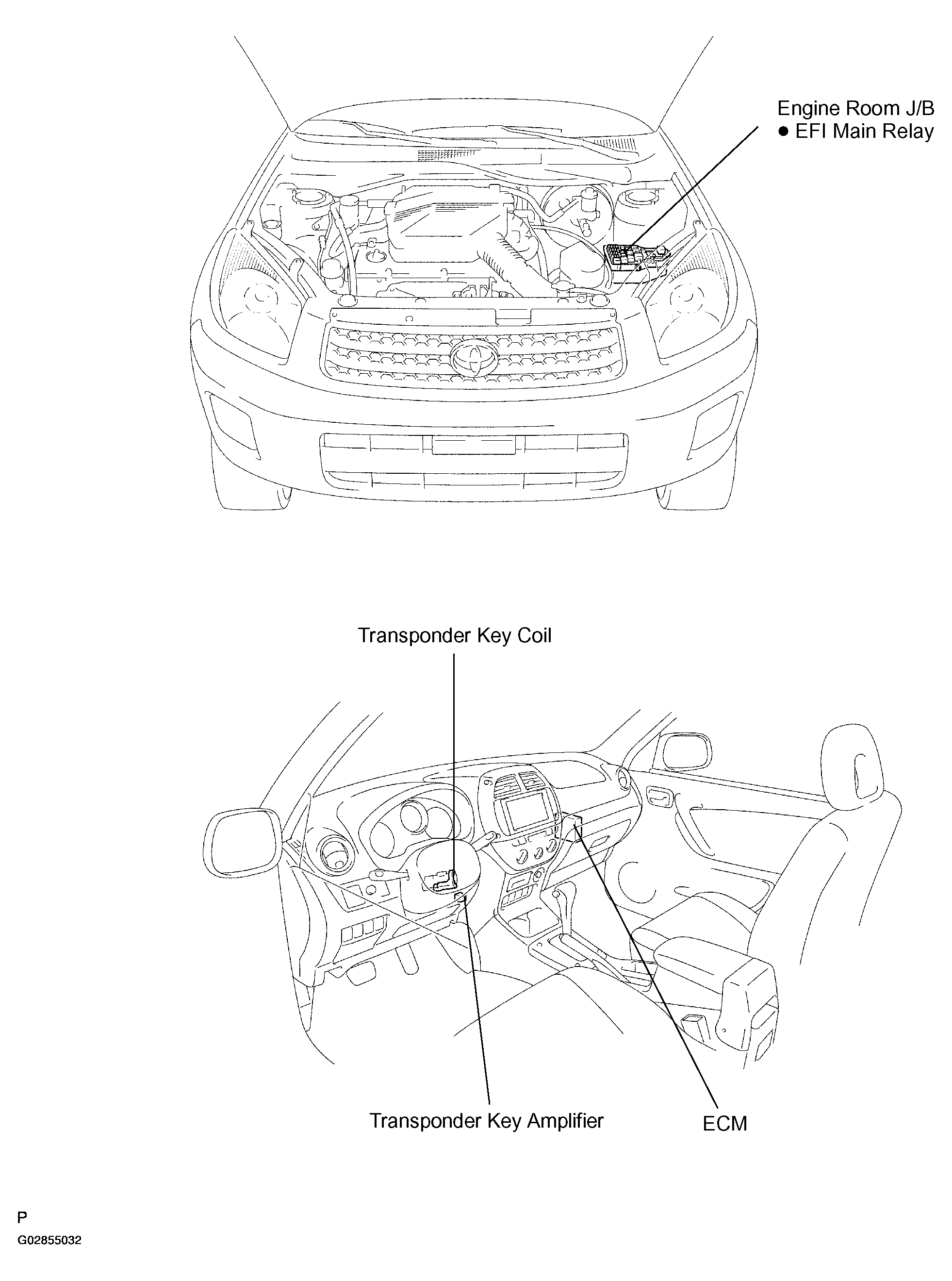

Fig 1: Locating Engine Immobilizer System Components

G02855032

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
