Inspection Procedure

Check indicator light.
PREPARATION:

Disconnect the indicator connector.

CHECK:

Connect the positive (+) lead to terminal 3 and the negative (-) lead to terminal 1 of the indicator light connector.

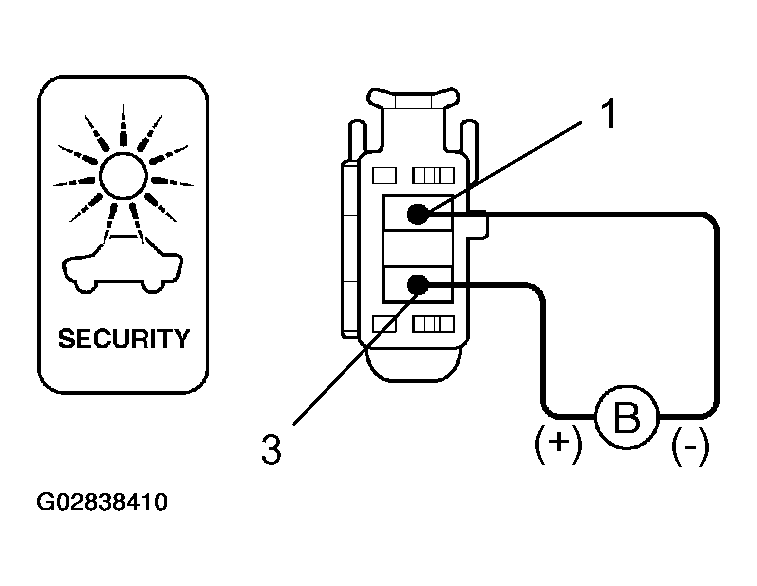

Fig 1: Connecting Positive (+) Lead To Terminal 3 & Negative (-) Lead To Terminal 1 Of Indicator Light Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

Indicator light comes on.

NG: Replace indicator light.

OK: Go To Next Step.
Check harness and connector between ECM and security indicator light, and security indicator light and body ground (See page HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ) .
NG: Repair or replace harness or connector.

OK: Check and replace ECM. (When there is a malfunction that the engine immobilizer system cannot be set, proceed to the next numbered circuit inspection shown in problem symptoms table (See PROBLEM SYMPTOMS TABLE ). .
