Control Switch Circuit (Cruise Control Switch): Wiring Diagram

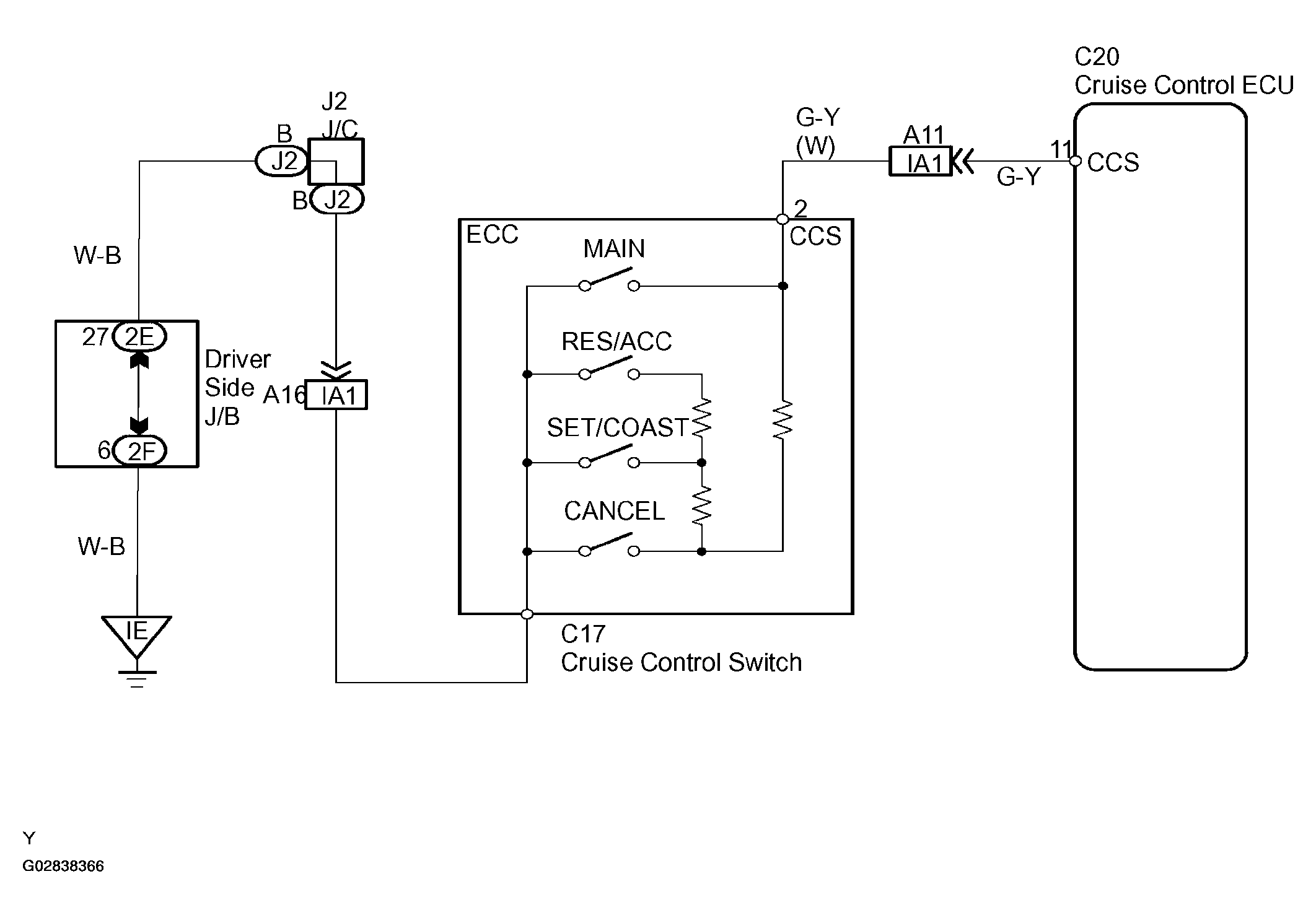

Fig 1: Control Switch Circuit (Cruise Control Switch) Wiring Diagram

G02838366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
