Manual Transaxle ASSY (C59): Components

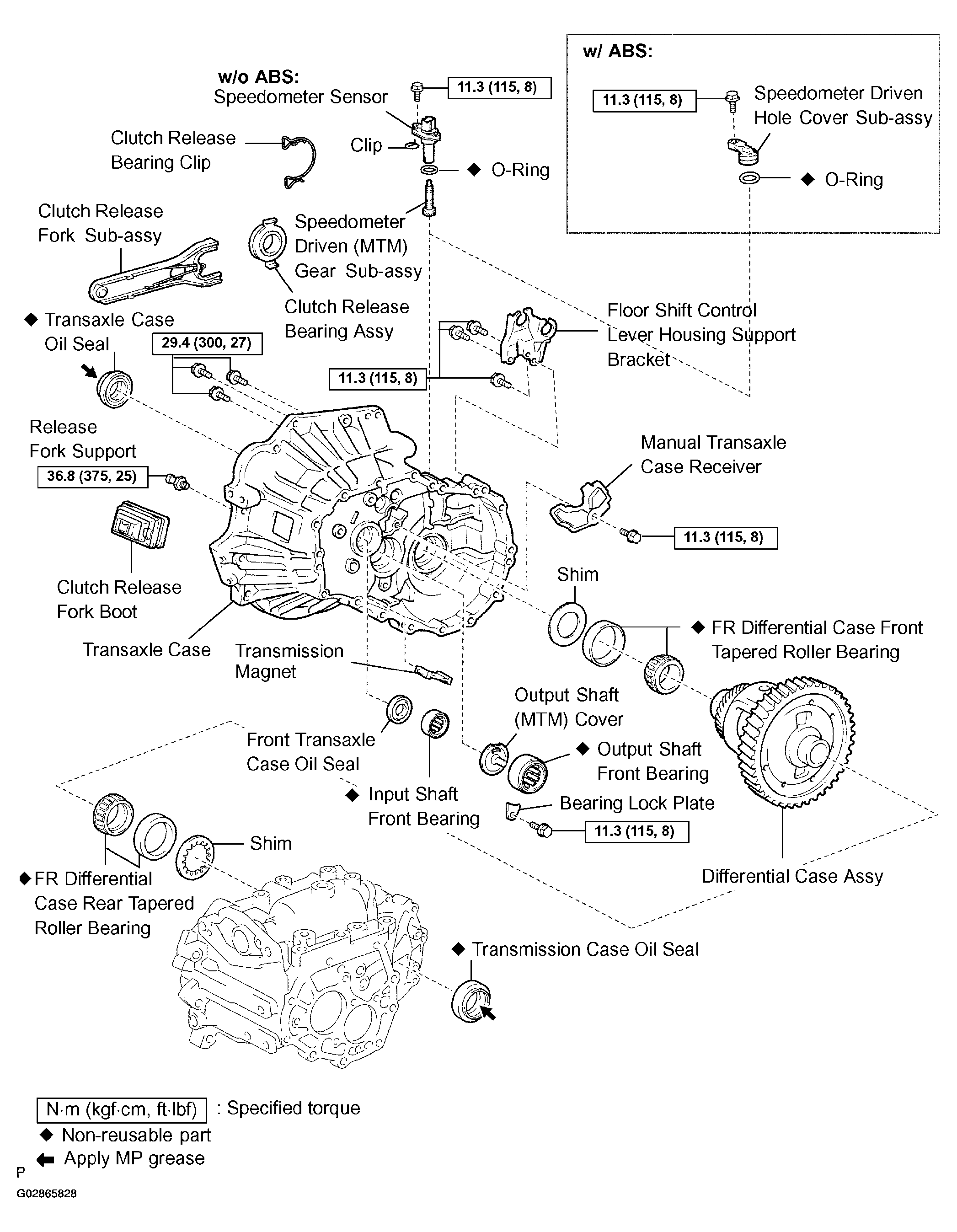

Fig 1: Identifying Components Of Manual Transaxle Assy - C59 (1 Of 3)
G02865828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

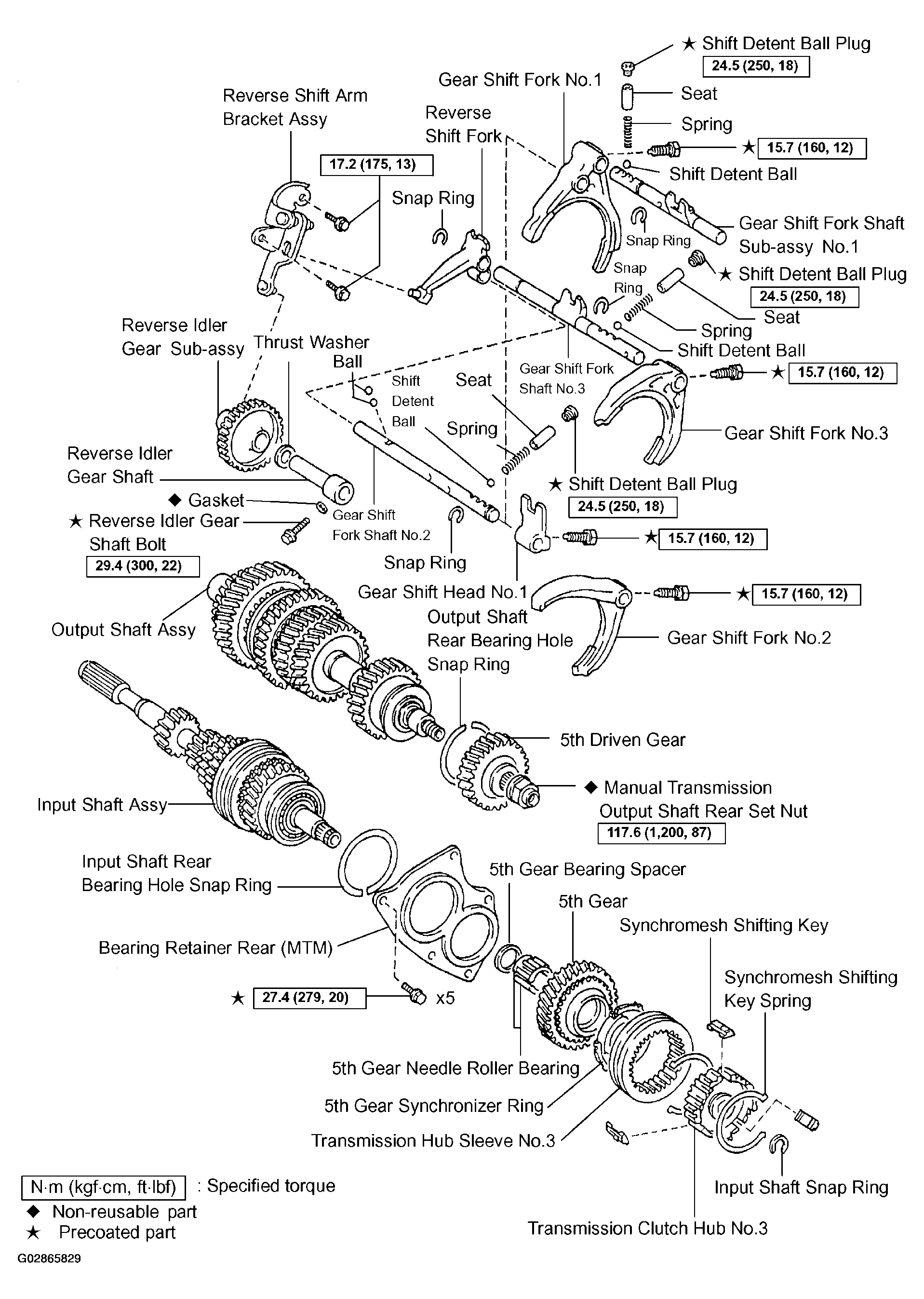

Fig 2: Identifying Components Of Manual Transaxle Assy - C59 (2 Of 3)
G02865829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

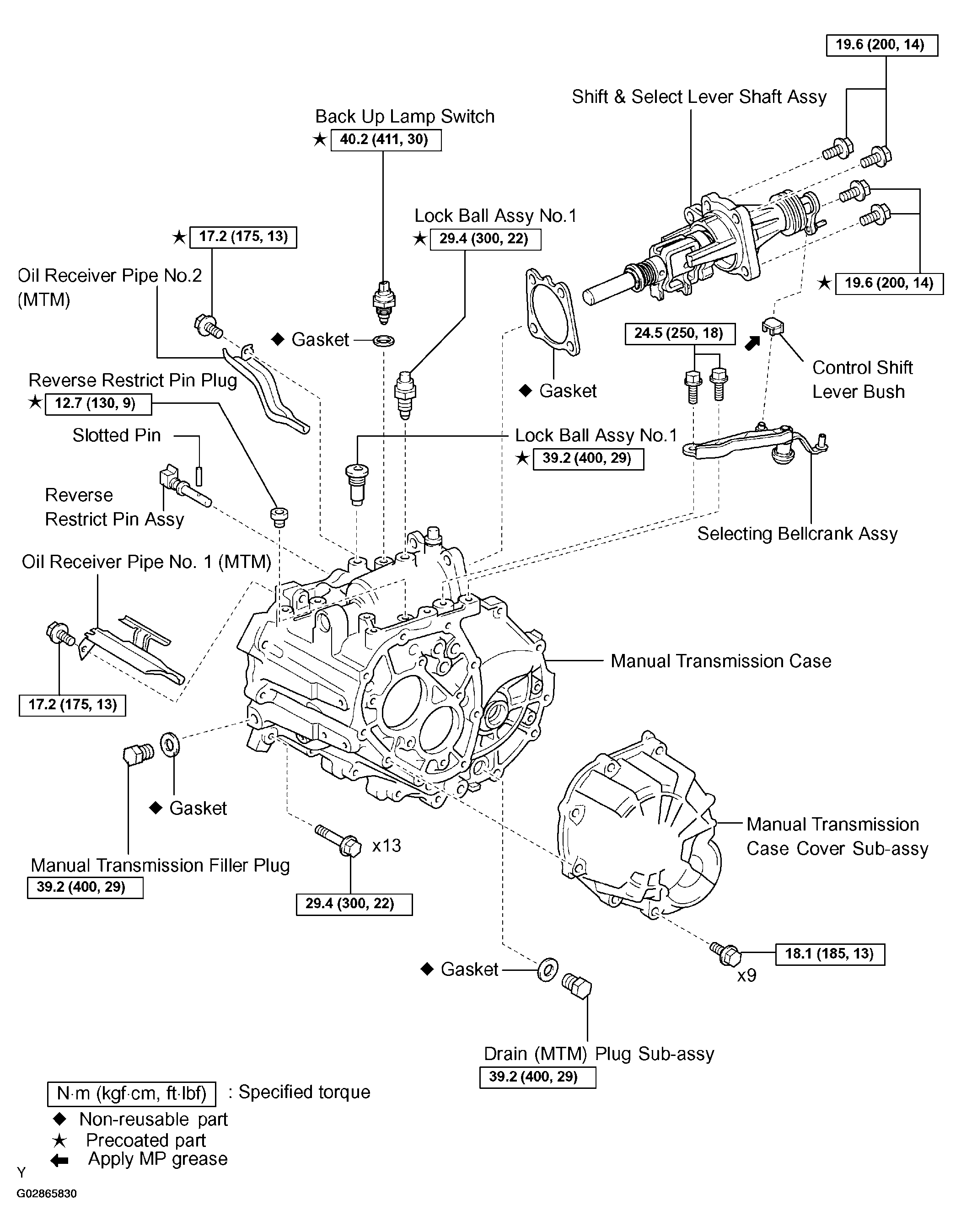

Fig 3: Identifying Components Of Manual Transaxle Assy - C59 (3 Of 3)
G02865830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
