Input Shaft ASSY (C60): Components

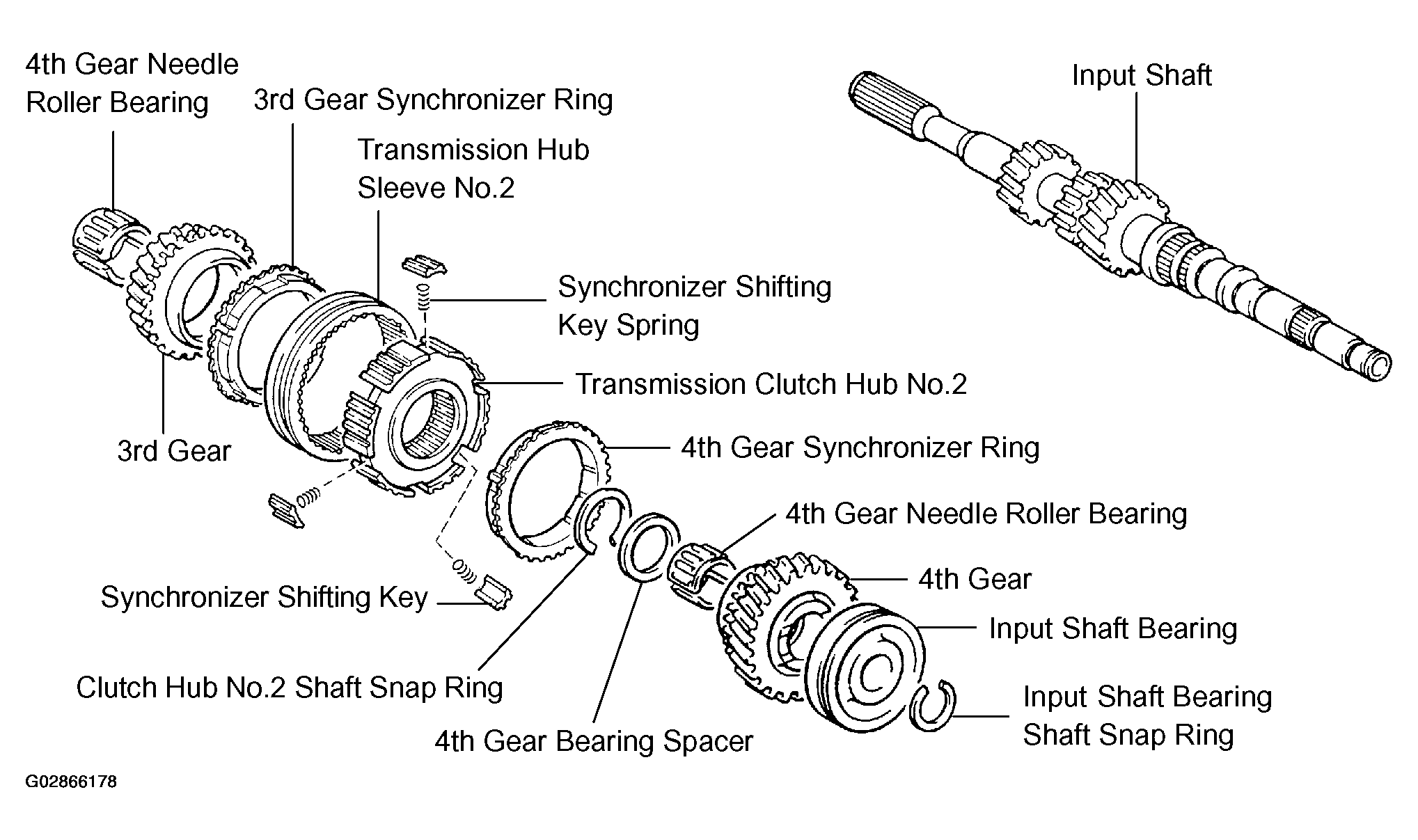

Fig 1: Exploded View Of Input Shaft Assembly (C60)

G02866178

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
