Front Seat Belt With PRETENSIONER: Components

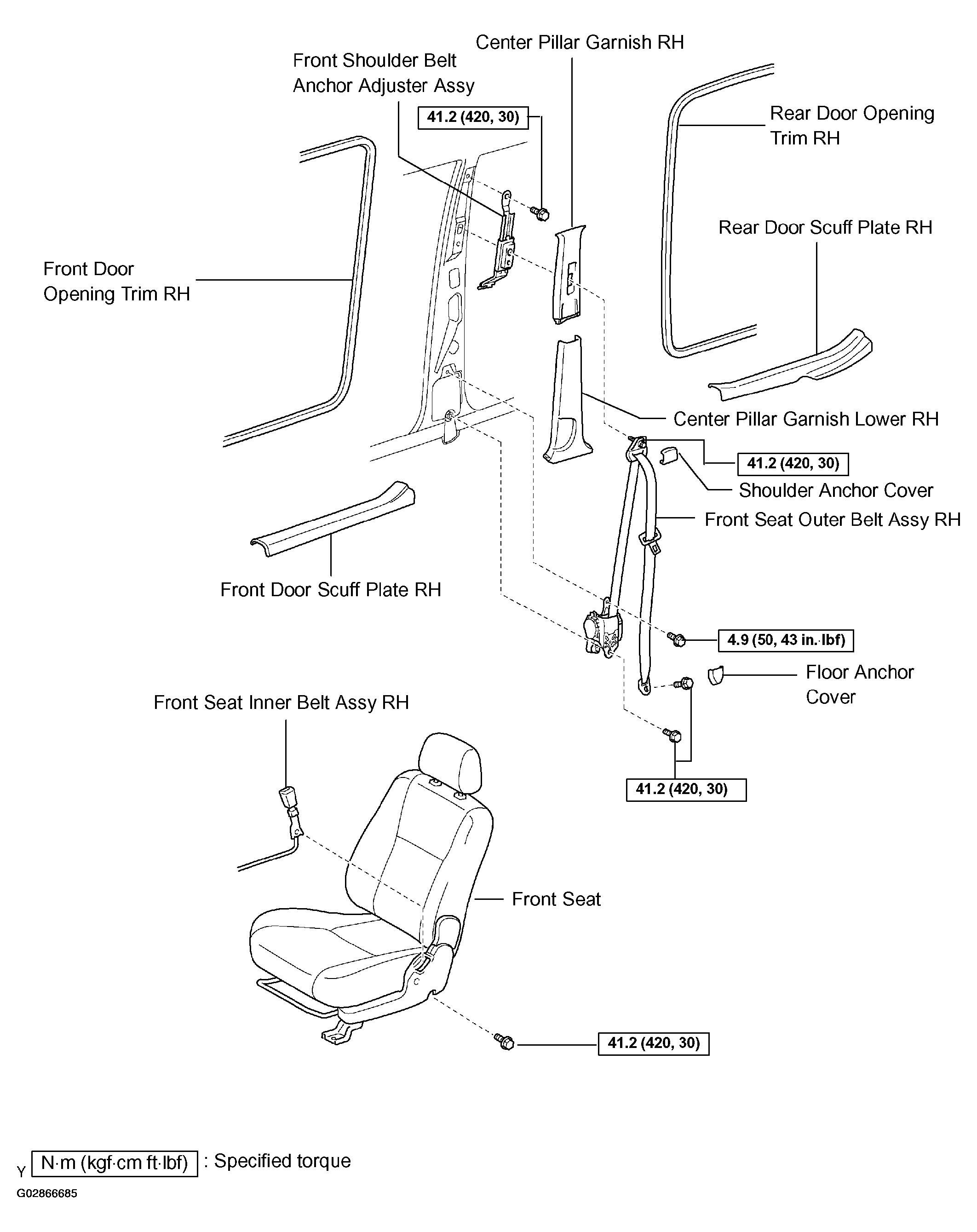

Fig 1: Identifying Front Seat Belt Components

G02866685

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
