Cruise Control Ecu ASSY: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove METER HOOD SUB-ASSY .
  2. Remove COMBINATION METER ASSY .
  3. Remove Cruise Control ECU Assy. See Fig 1.
    1. Disconnect the connector.
    2. Remove the screw and cruise control ECU assy.

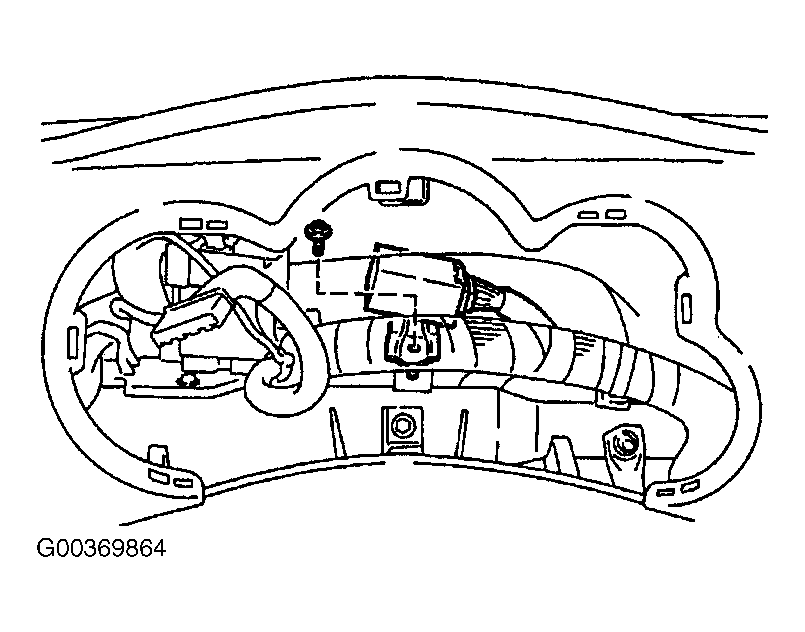

Fig 1: Removing & Installing Cruise Control ECU Assembly
G00369864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
