Matrix Base, FWD, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Abs With EBD System - Diagnostics
>>
Terminals Of Ecu
Terminals Of Ecu

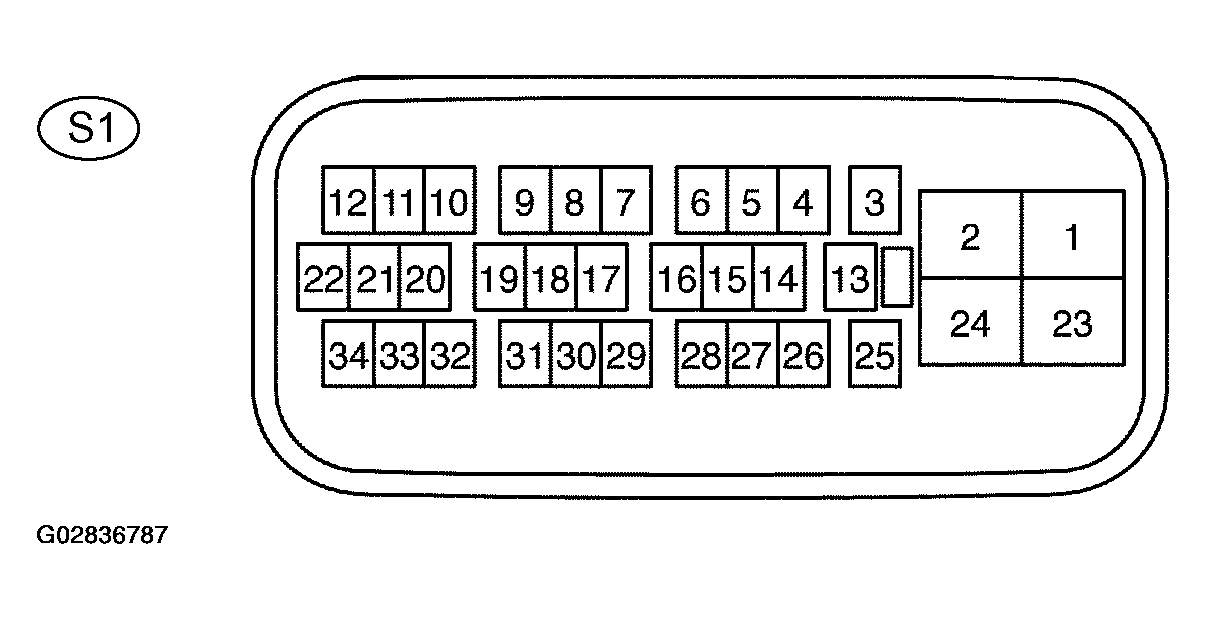

Fig 1: Identifying Terminal Of ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

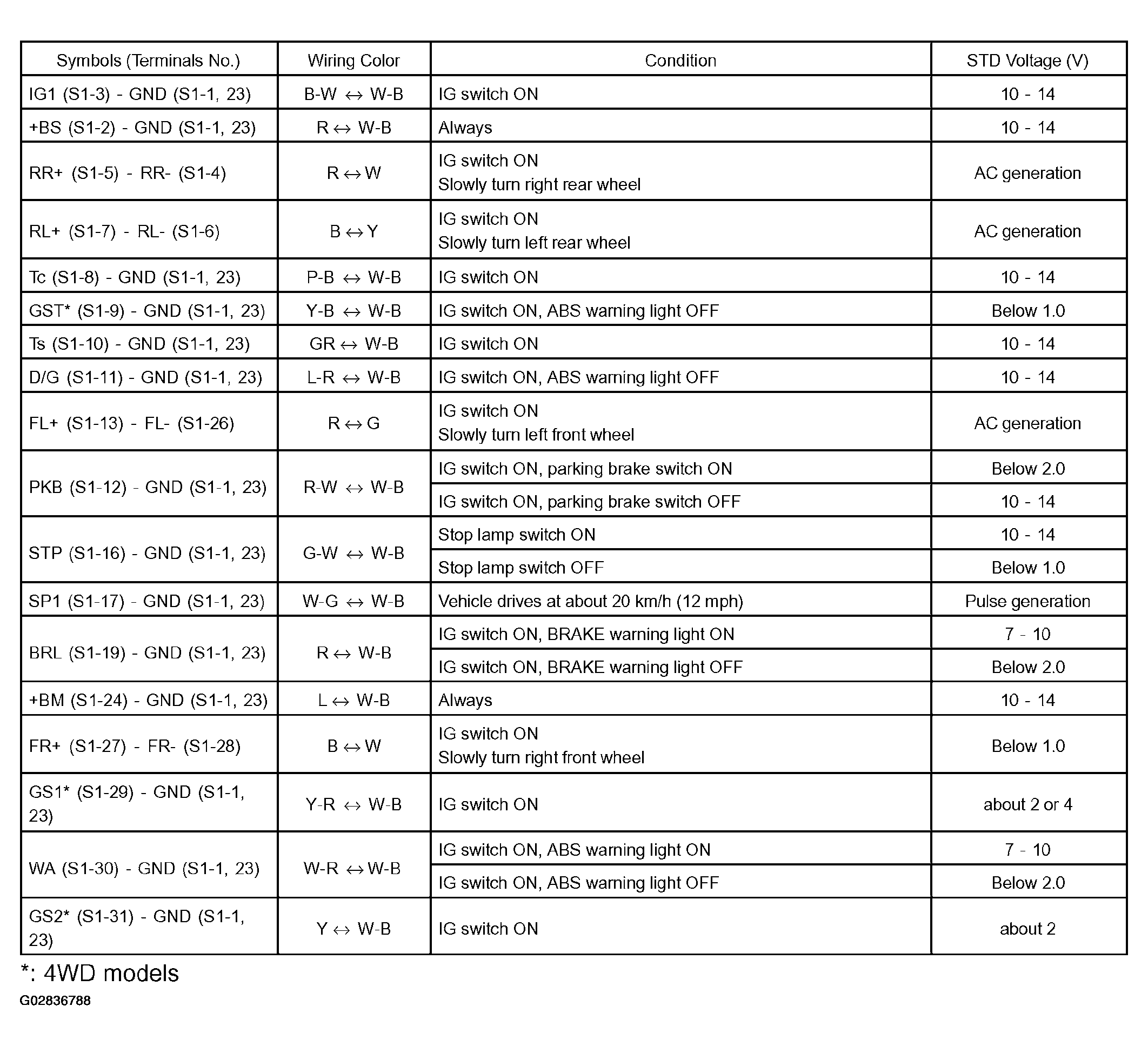

Fig 2: Wiring Color Condition Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
