Hazard Warning Switch Circuit: Wiring Diagram

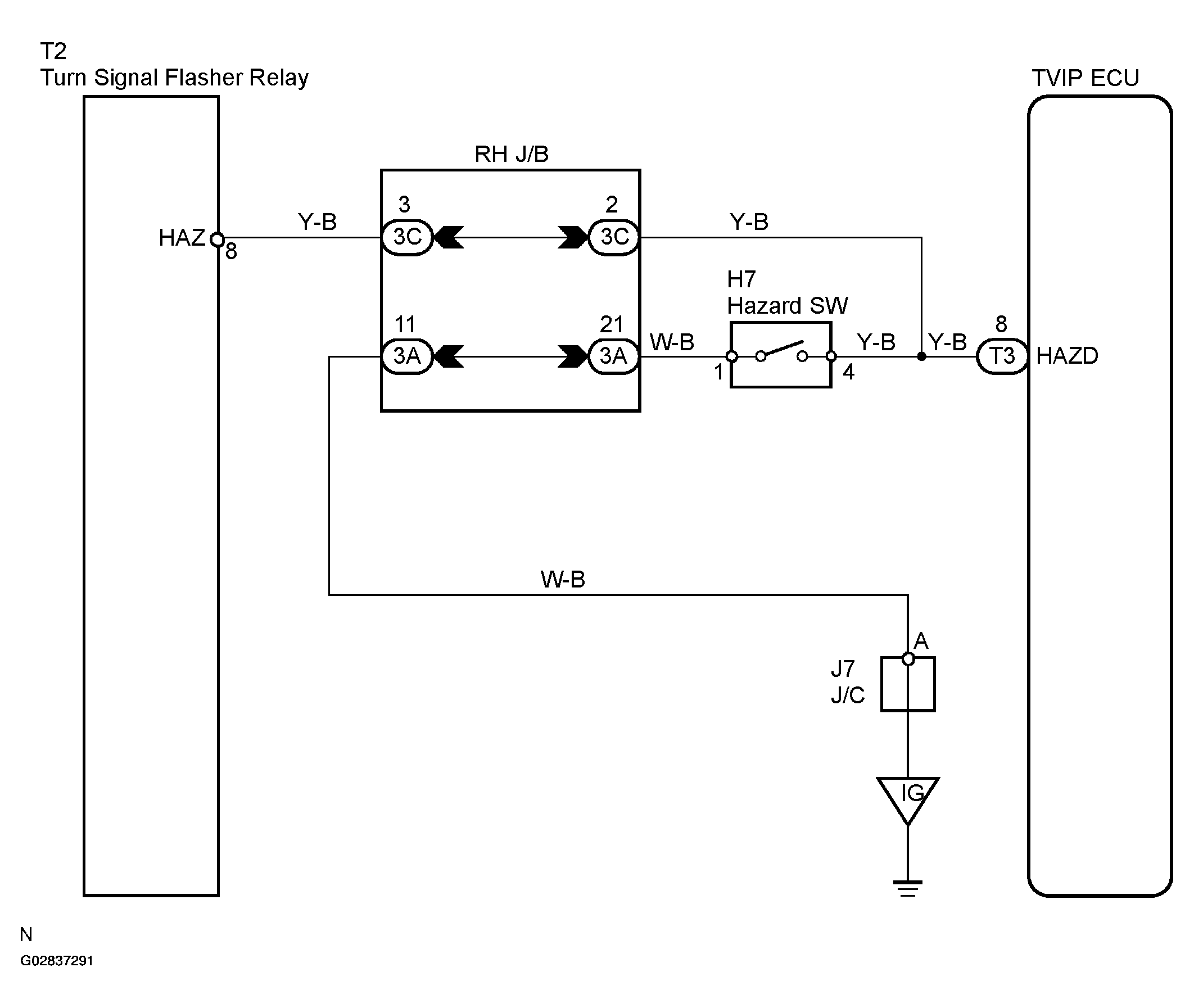

Fig 1: Wiring Diagram - Hazard Warning Switch Circuit

G02837291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
