Ecu Power Source Circuit: Wiring Diagram

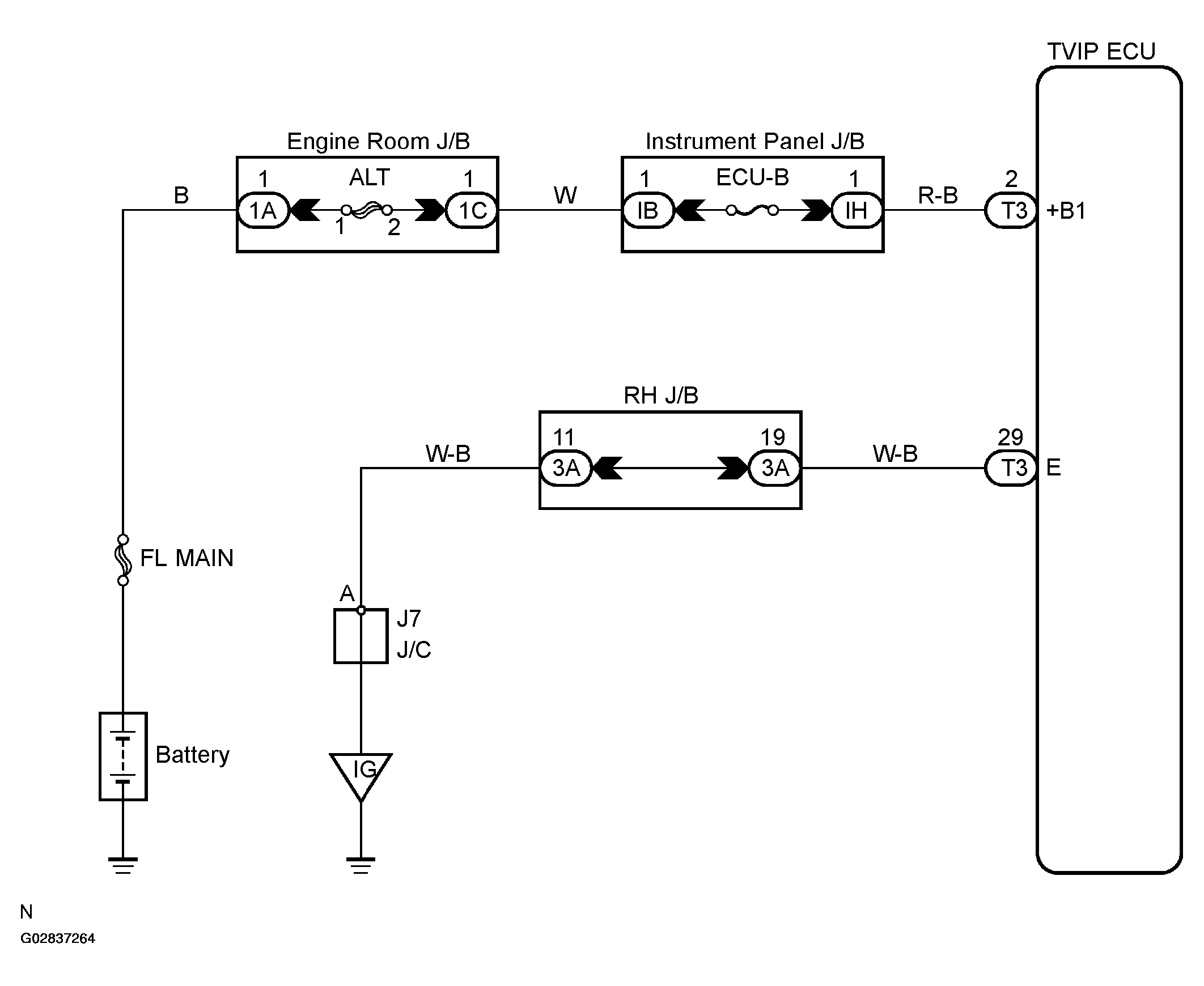

Fig 1: Wiring Diagram - ECU Power Source Circuit

G02837264

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
