Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS AND CONNECTOR (ECM - BATTERY)
1. Turn the ignition switch off.
2. Disconnect the E7 connector of the ECM.

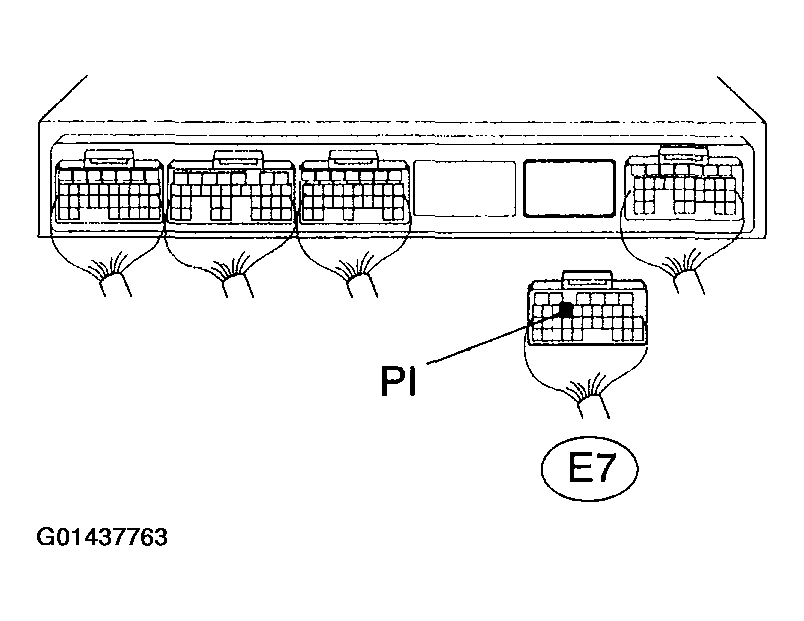

  Fig 1: Identifying E7 Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the voltage according to the value(s) in Fig 2 .
  Standard:

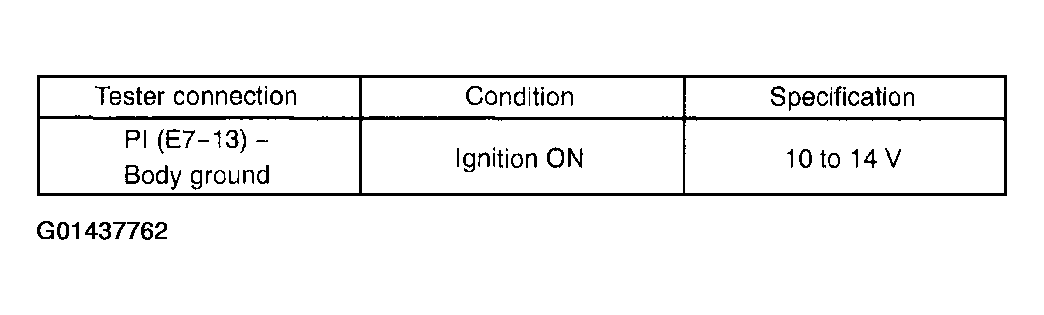

  Fig 2: Voltage Between PI & Body Ground Specifications Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NG: GO TO STEP 2
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )
CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSY - ECM)
1. Turn the ignition switch off.
2. Disconnect the combination meter C7 connector.

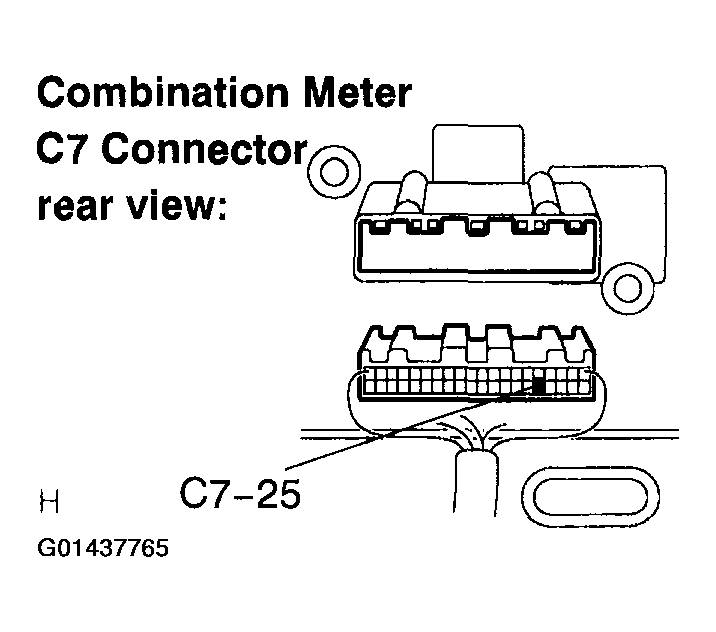

  Fig 3: Disconnecting Combination Meter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

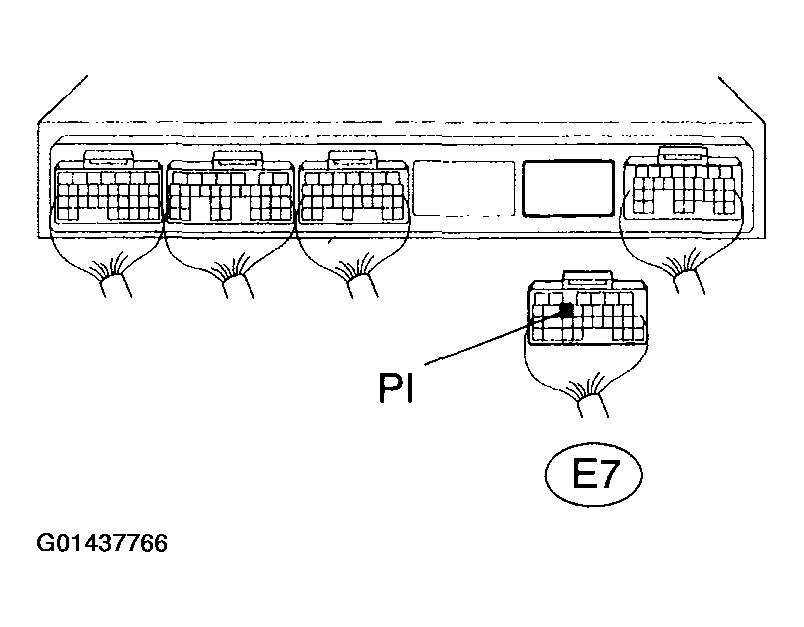

  Fig 4: Identifying E7
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in Fig 3 .
  Standard:

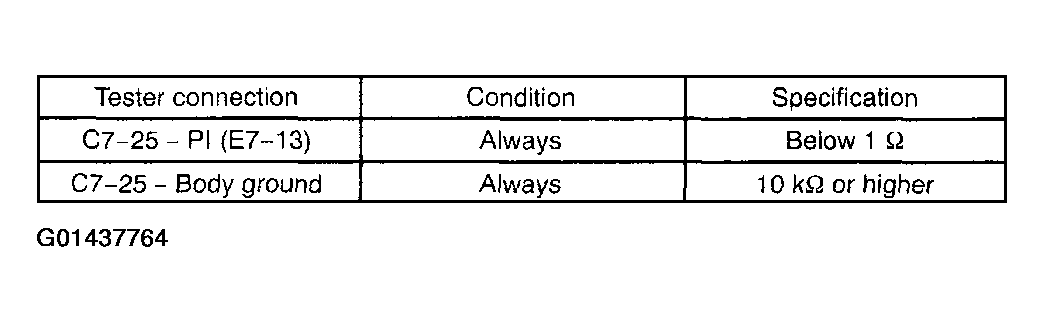

  Fig 5: Resistance Of C7-25 Specifications Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (COMBINATION METER ASSY - ECM)

  OK: Go to next step.
CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSY - BATTERY)
1. Measure the voltage according to the value(s) in Fig 7 .

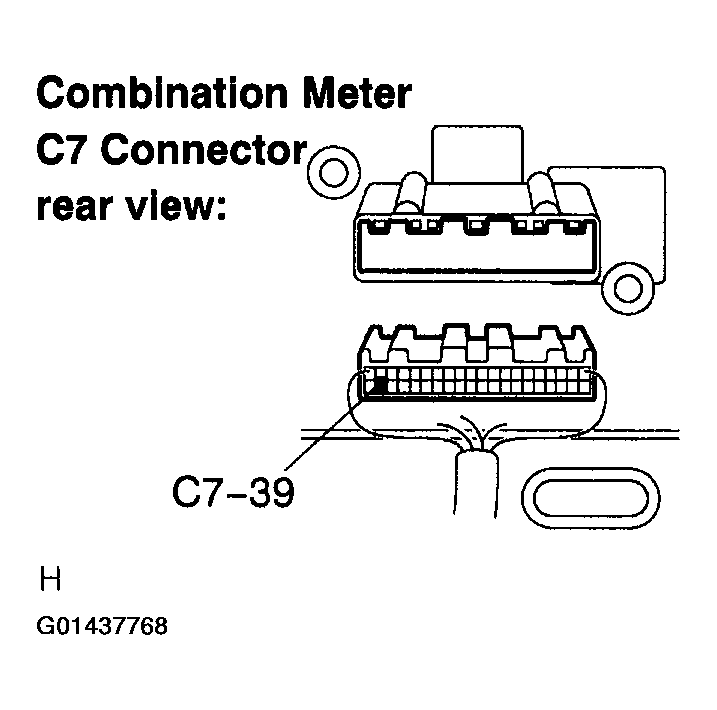

  Fig 6: Identifying Combination Meter Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

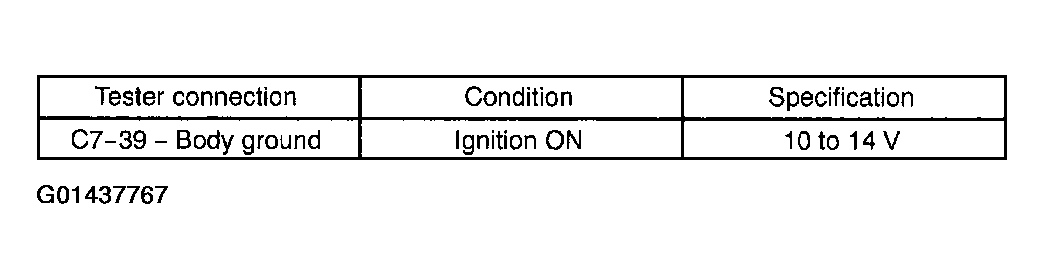

  Fig 7: Voltage Of C7-39 Specifications Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (COMBINATION METER ASSY - BATTERY)

  OK: Go to next step.
REPLACE COMBINATION METER ASSY (SEE COMBINATION METER ASSY )
