Air Conditioning Control Assembly (Center Cluster Integration): Disassembly

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove airbag indicator circuit.
    1. Release the 2 claws and remove the indicator circuit, then disconnect the connector.
      Fig 1: Displaying Indicator Circuit
      G01091047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove bulbs.
    1. Remove the 5 bulbs.

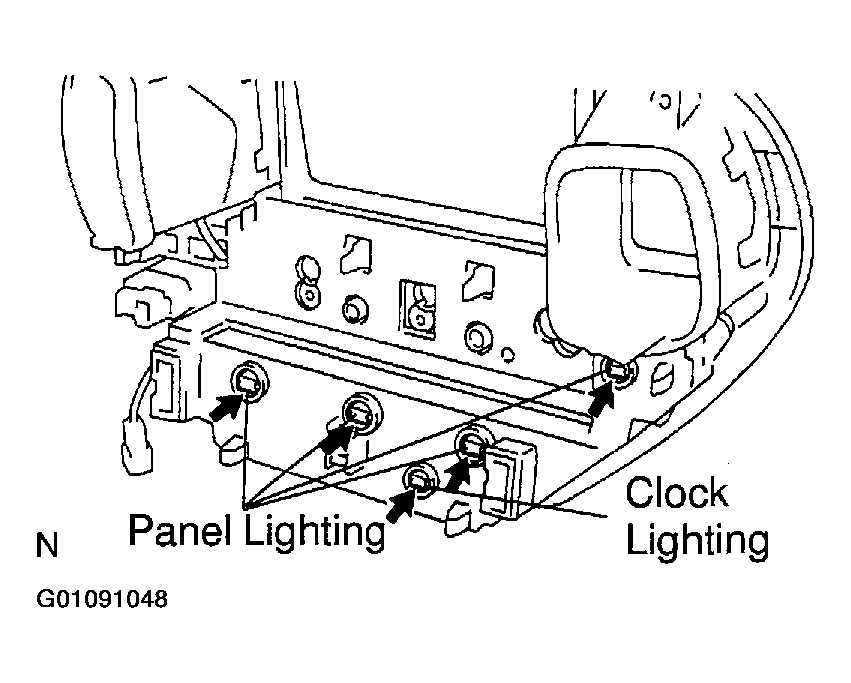

      Fig 2: Removing Bulbs
      G01091048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove heater control housing.
    1. Remove the 5 screws.

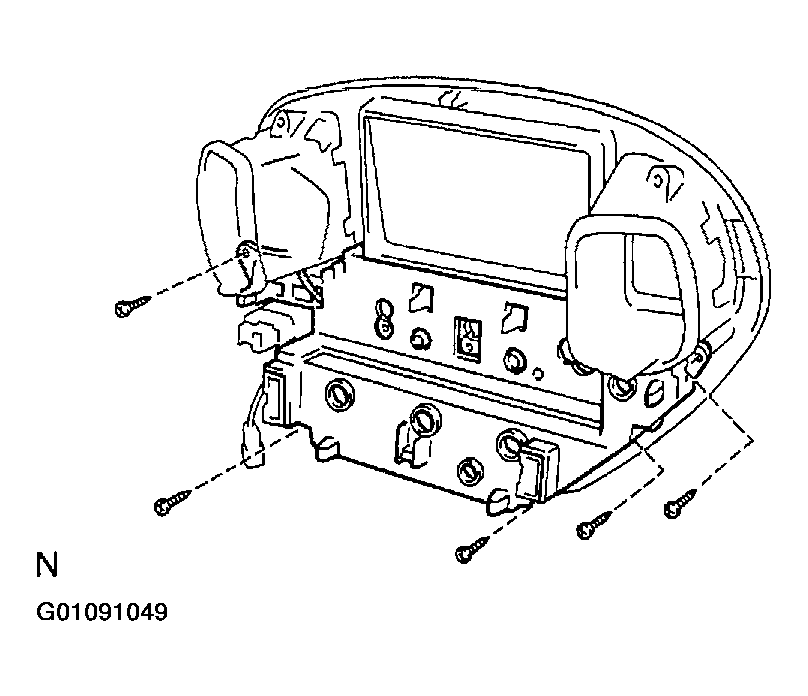

      Fig 3: Locating Screws For Removal
      G01091049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the heater control housing.
  4. Remove integration circuit.
    1. Disconnect the 2 connectors.

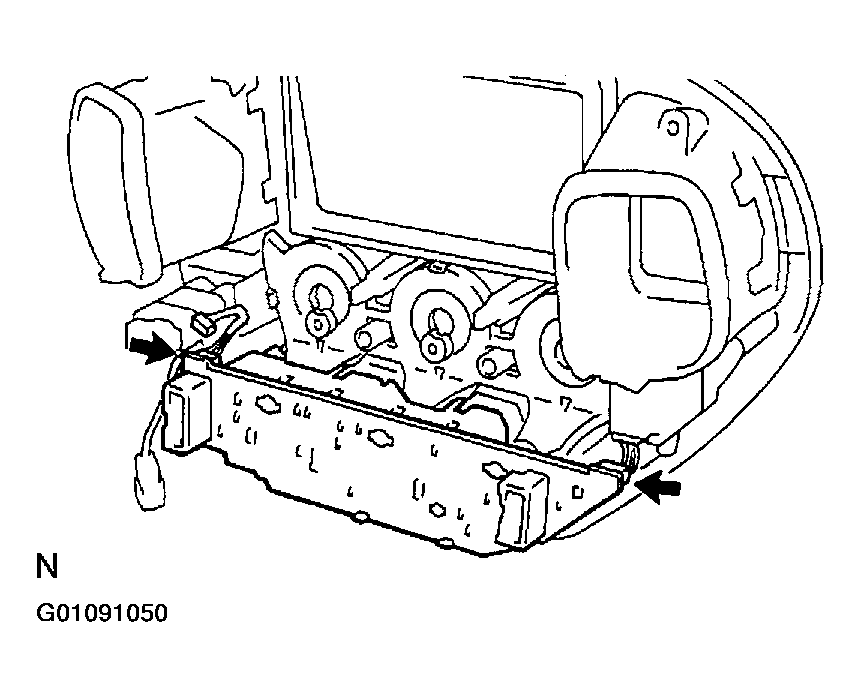

      Fig 4: Locating Screws For Removal
      G01091050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the circuit.
  5. Remove lens.
    1. Release the 3 claws, then remove the lens.

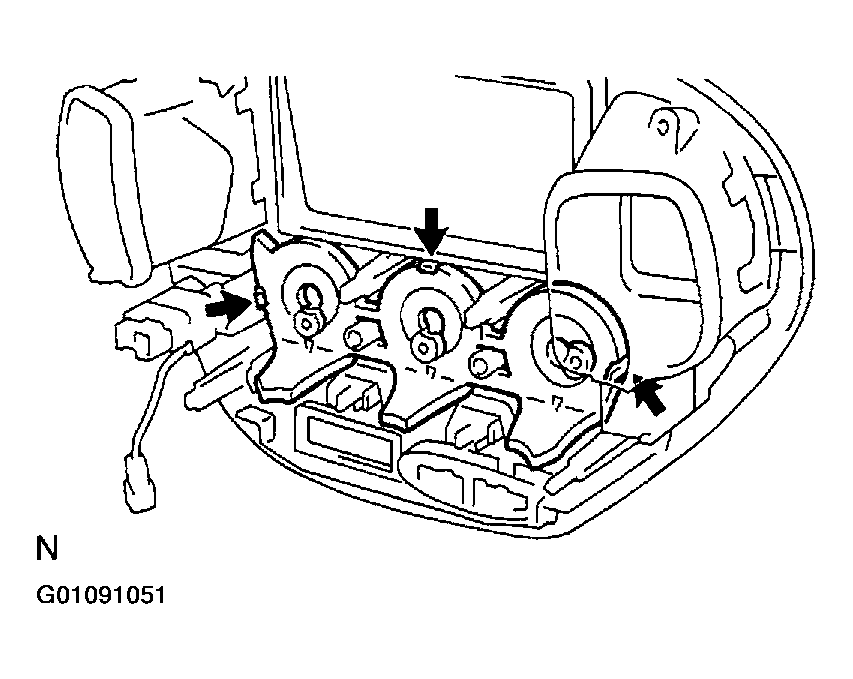

      Fig 5: Removing Lens
      G01091051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
