A/F Heater Relay: RAV4

For A/F heater relay testing procedure, see Fig 1.

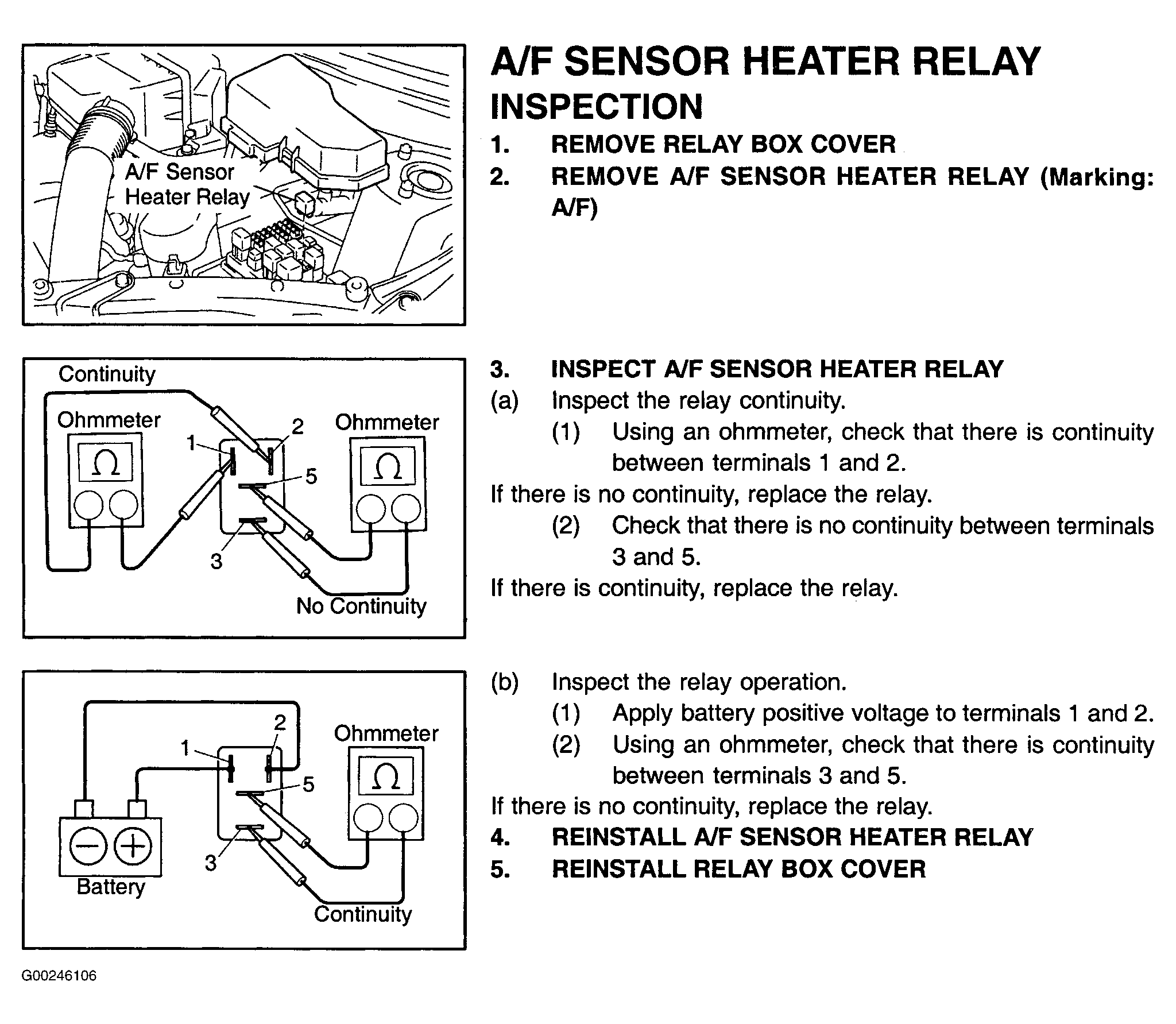

Fig 1: Testing Air/Fuel Sensor Heater Relay (RAV4)

G00246106

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
