A/C Compressor Clutch Relay: Camry

For A/C compressor clutch relay testing procedure, see Fig 1.

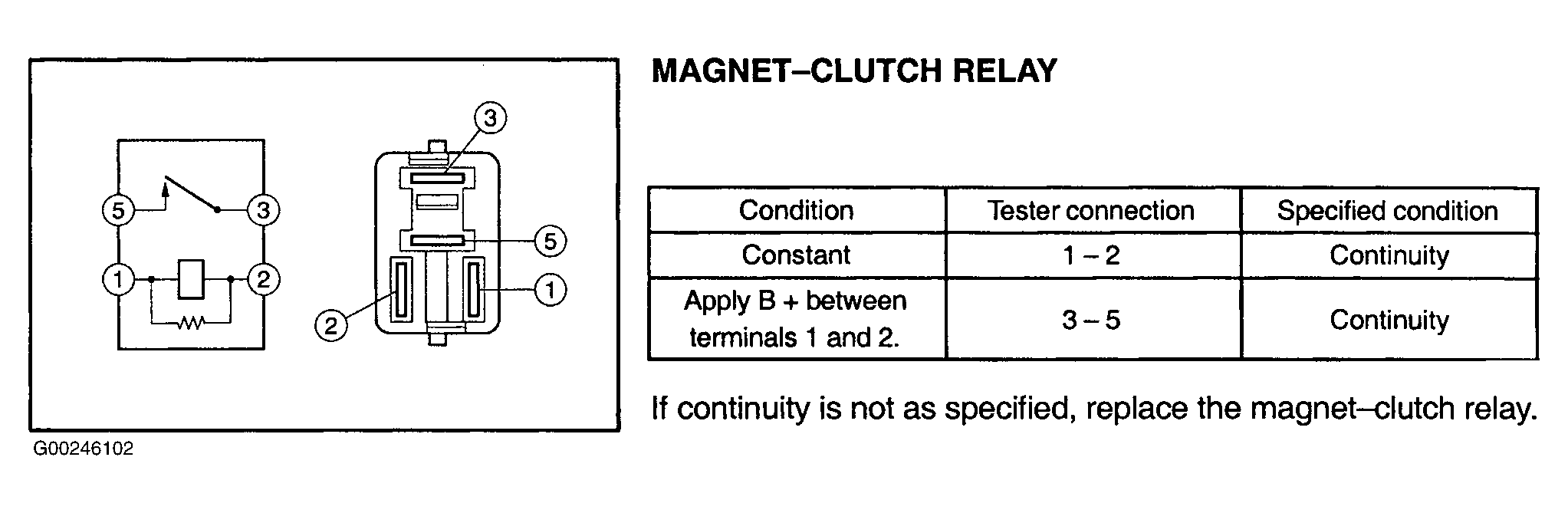

Fig 1: Testing A/C Compressor Clutch Relay (Camry)

G00246102

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
