Vehicle Speed Sensor: Tacoma

For testing Vehicle Speed Sensor (VSS), see Fig 1.

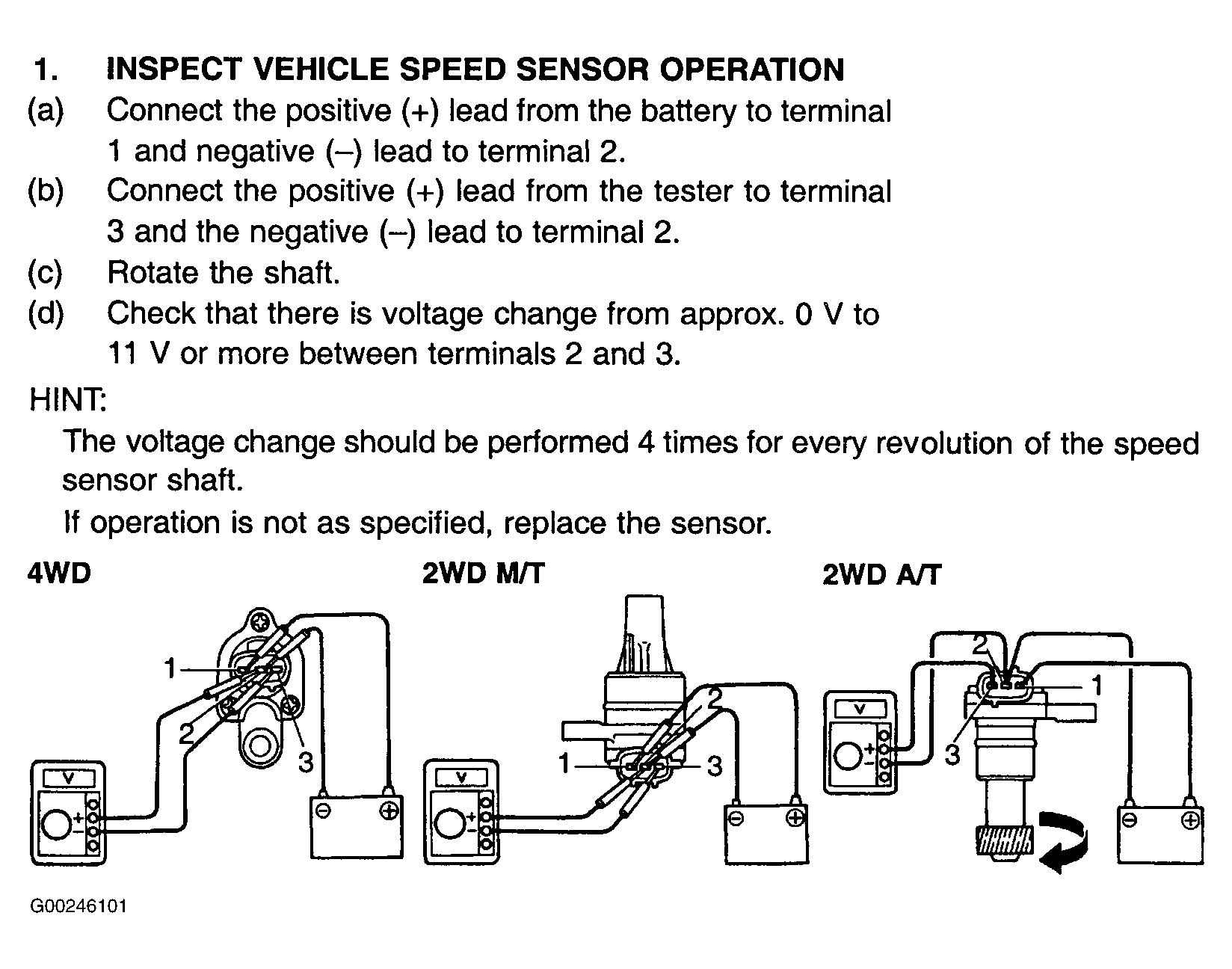

Fig 1: Testing Vehicle Speed Sensor (Tacoma)

G00246101

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
