Power Steering Pressure Sensor: Echo

For power steering pressure sensor inspection procedures, see Fig 1. If problem exists with power steering pressure sensor, a Diagnostic Trouble Code (DTC) may be stored in Engine Control Module (ECM). See TESTING PROCEDURE under SELF-DIAGNOSTIC SYSTEM in appropriate SELF-DIAGNOSTICS article for retrieving of DTCs.

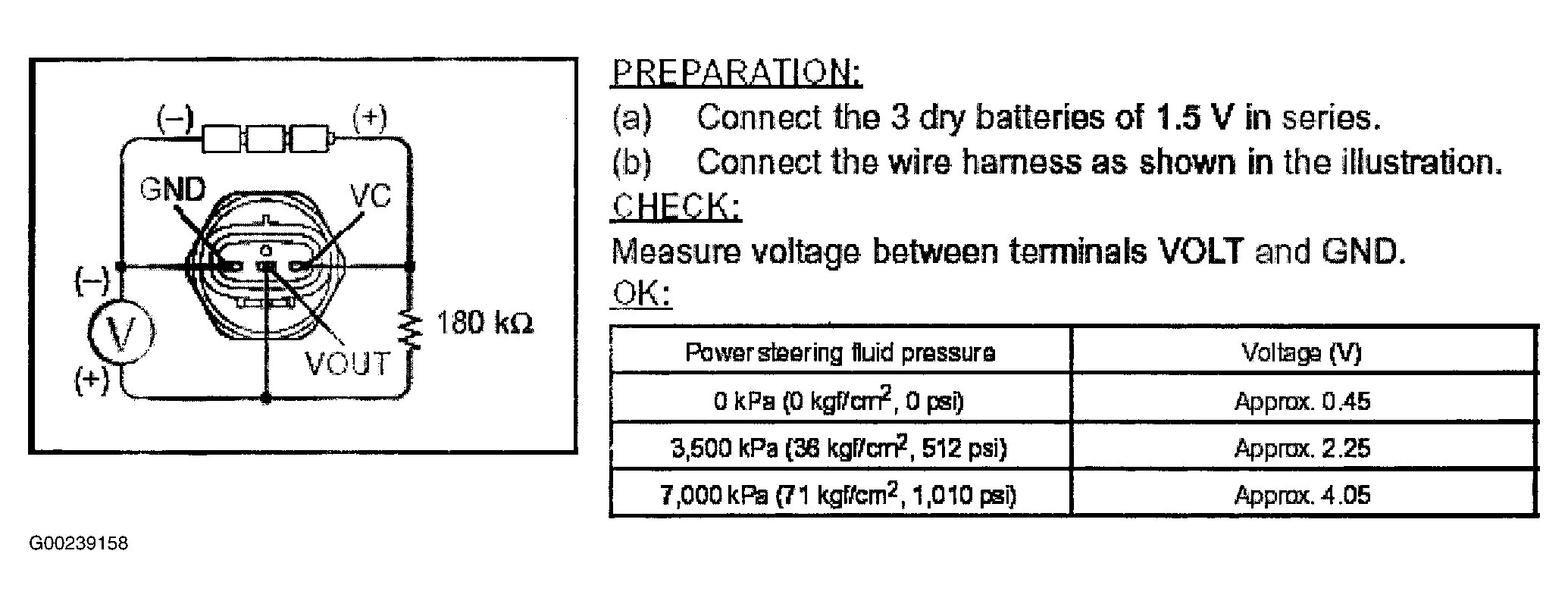

Fig 1: Testing Power Steering Pressure Sensor (ECHO)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
