Indicator Light Circuit: Wiring Diagram

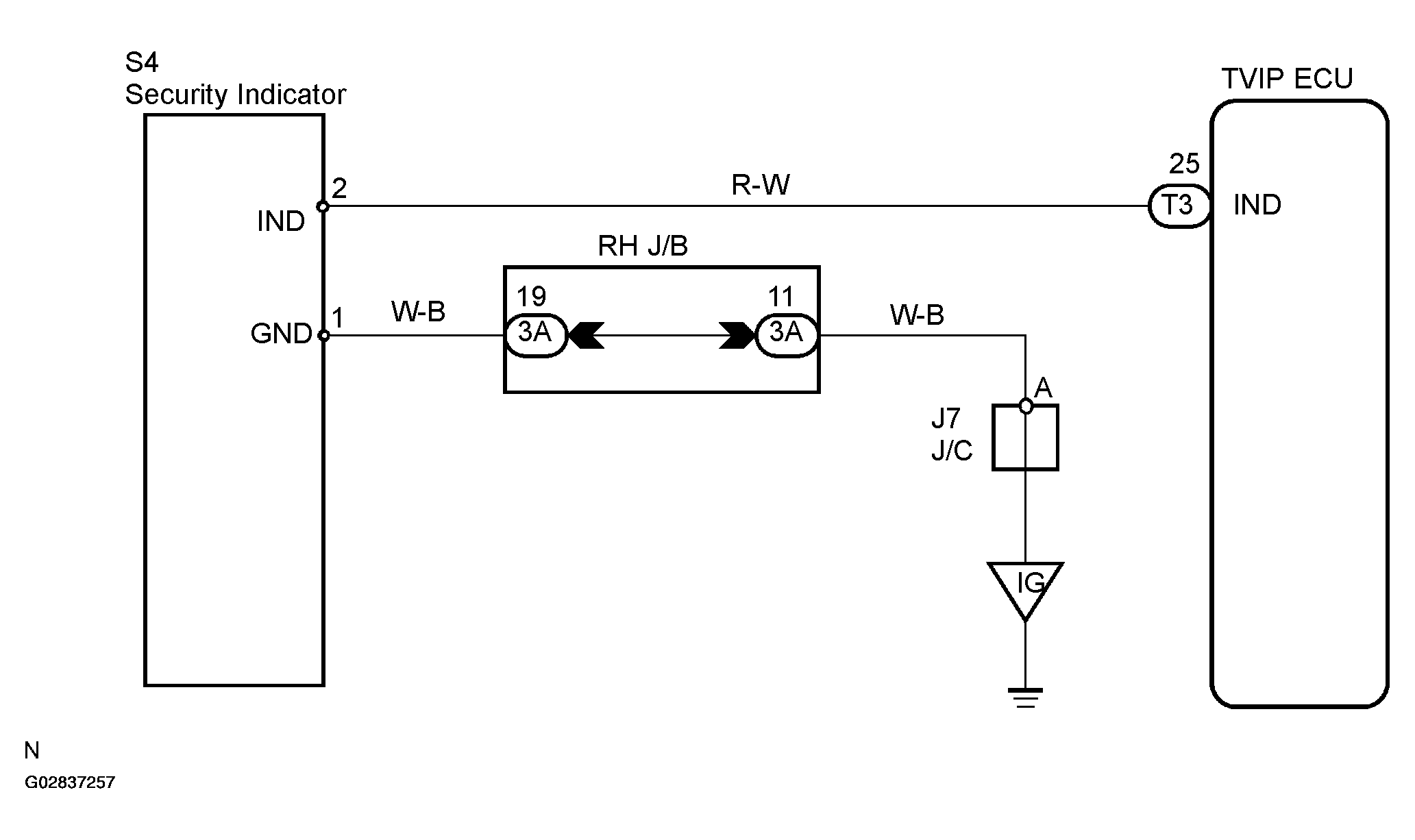

Fig 1: Wiring Diagram - Indicator Light Circuit

G02837257

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
