Glass Breakage Sensor Circuit: Wiring Diagram

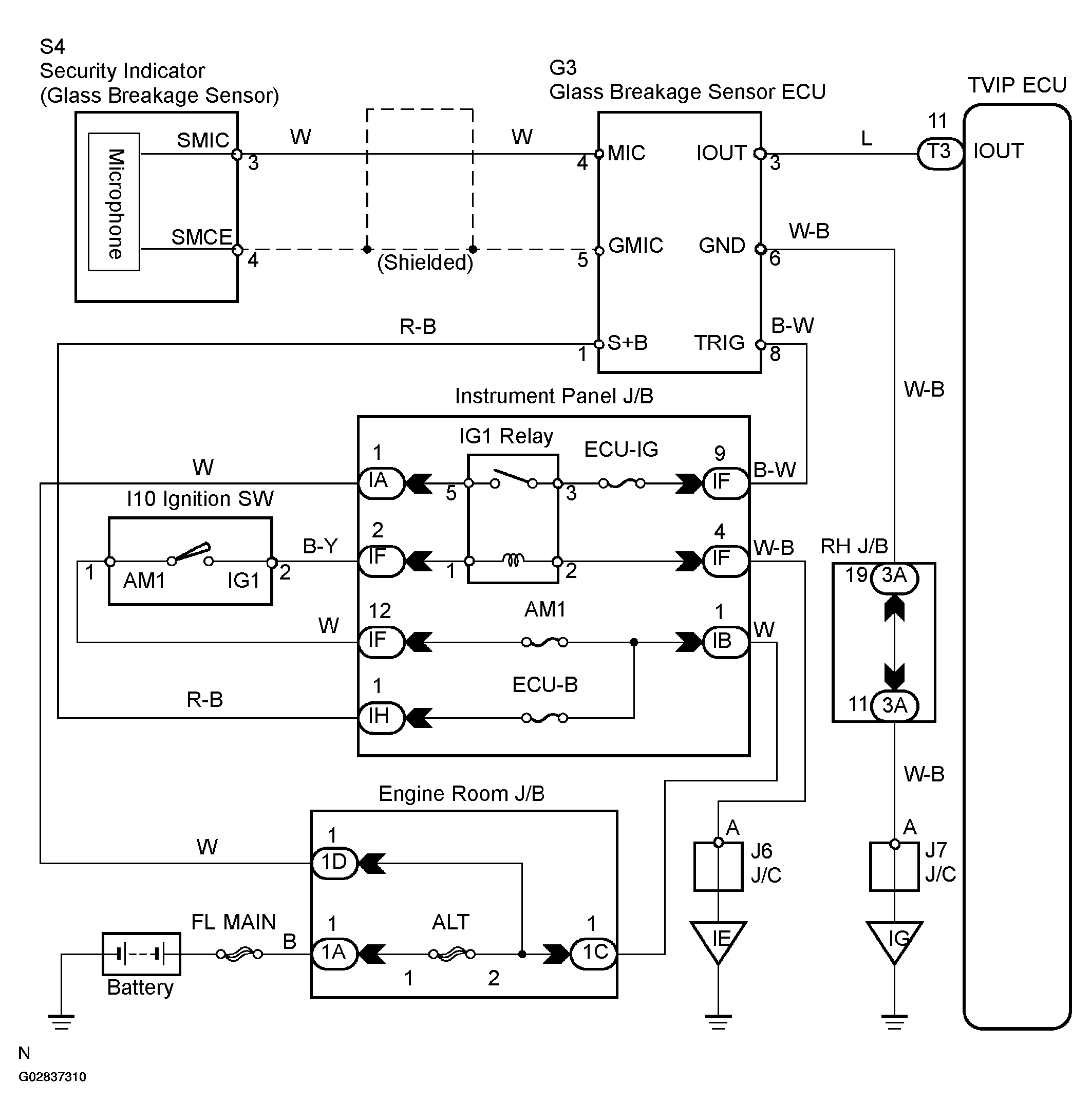

Fig 1: Wiring Diagram - Glass Breakage Sensor Circuit

G02837310

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
